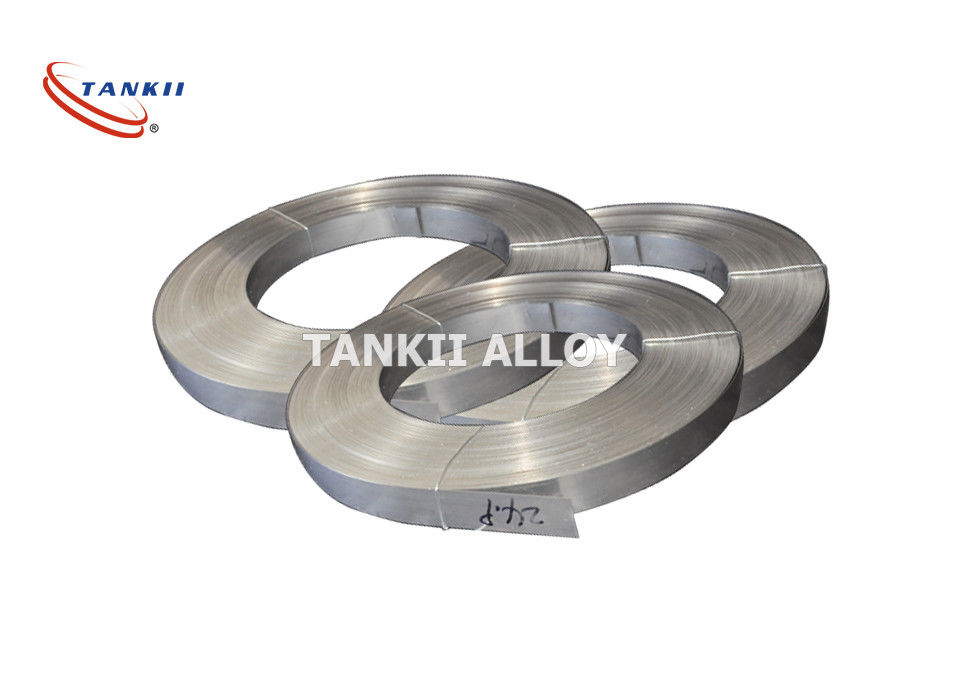

Sable Resistance Nicr Alloy Bright Annealed Nichrome Strip 250mm Width

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr30/20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: spool+plastic bag+carton+pallet for resistance wires

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

Sable Resistance Nicr Alloy

,

Bright Annealed Nichrome Strip

,

250mm Width Nichrome Strip

Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Description
Sable Resistance Nicr Alloy Bright Annealed Nichrome Strip 250mm Width



Stable resistivity Nicr30/20 Supplier Ni30cr20 Wire for heating element


Ni30Cr20, Nikrothal30, N3, HAI-NiCr30, Resistohm30, 30-20Ni-Cr, Nikrothal .

It is a nickel-chromium alloy (NiCr alloy) characterized by High resistivity, good oxidation resistance, very good form stability, good ductility and excellent weldability. It is suitable for use at temperatures up to 1100°C.

Typical applications for it used in olid hot plates,open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. And also used for heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.





Chemical Composition and Main Properties of Nichrome
Properties Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
Main Chemical Composition Ni Balance Balance 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤ 1.0 ≤ 1.0 Balance Balance Balance
Max Continuous Service Temperature(oC) 1200 1250 1150 1100 1100
Resisivity 20oC (Ω mm2/m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal Conductivity(KJ/m@ h@ oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal Expansion(α × 10-6/oC) 18 17 17 19 19
Melting Point( oC) 1400 1380 1390 1390 1390
Elongation(%) > 20 > 20 > 20 > 20 > 20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic Weak magnetic Weak magnetic




Our Nichrome alloy are in the form of wire, ribbon, strip, coil.



  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate



Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled



 Our major product line:

 Electric resistance alloy materials in wire, strip, tube, and bar form.

Furnace products and heating systems

  • •    Metalic heating elements
    •    Heating modules: Prefabricated heating modules with electric heating elements and fiber or dense ceramic insulation.
    •    Air heating cassettes: Cassettes with metallic heating elements for heating of air or gases
    •    Diffusion Cassettes: Diffusion cassettes for the production of crystalline silicon wafers for solar cells and semiconductors
    •    Furnace tubes: Extruded tubes made from FeCrAl alloys for gas-heated or electrically heated furnaces.
    •    Construction materials: Wire, strip, tube and bar for manufacturing of furnace furniture and other furnace accessories
    •    Furnace rollers: Furnace rollers for heat treatment furnaces.
    •    Resistance heating wire and strip.: Resistance heating wire and strip for manufacturing of electric heating elements.
    •    Technical Ceramics: Ceramic supporting materials for electrothermal components.
    •    Thermocouple wire and strip: Wire, ribbon and strip for thermocouples, extension leads and compensating cables.
    •    Ceramic engineering material: Ceramic engineering material for high-temperature and chemical environments.
    •    Electric heating systems: Electric heating systems for aluminium and steel production
