Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001,SGS
Model Number: NCHW - 1 (NICr8020)
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: USD30~35/kg
Packaging Details: Standard exoprt package
Delivery Time: About 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Surface: |
Bright |
Diameter: |
0.04mm~7.0mm |
Leading Time: |
5~20 Days As Per The Order Qty |
Item: |
Nicr AA / Resistohm 80 / Stablohm 650 Strip Used For Dymamic Braking Resistors |
Ribbons:: |
0.05*0.2-2.0*6.0mm |
Grade: |
NiCr8020 |
Surface: |
Bright |
Diameter: |
0.04mm~7.0mm |
Leading Time: |
5~20 Days As Per The Order Qty |
Item: |
Nicr AA / Resistohm 80 / Stablohm 650 Strip Used For Dymamic Braking Resistors |
Ribbons:: |
0.05*0.2-2.0*6.0mm |
Grade: |
NiCr8020 |

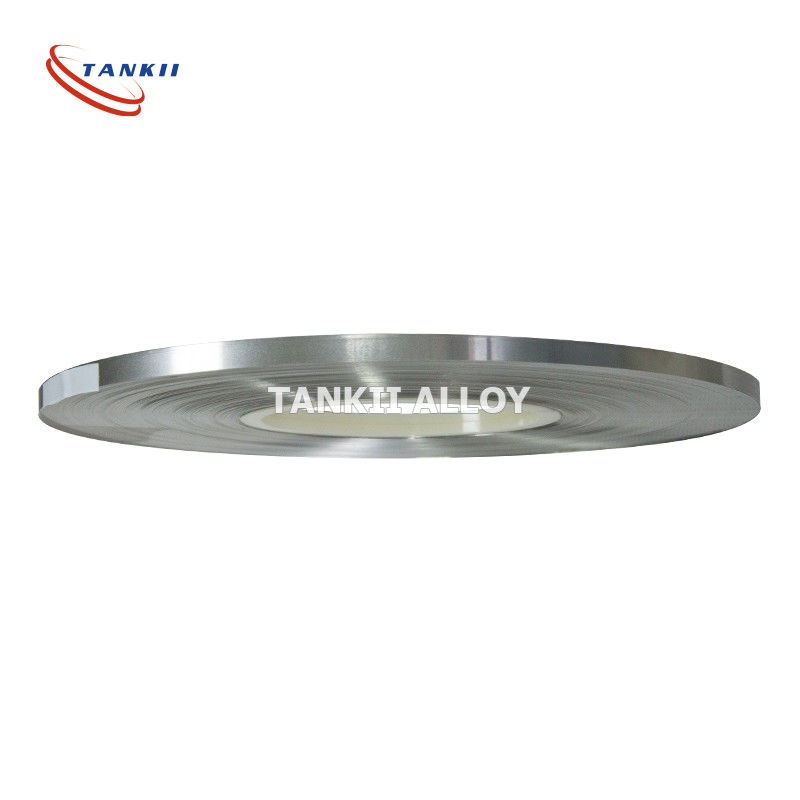

High Quality Nicr8020 Annealing Ribbon for Electric Heating Elements
Product Description
a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for OhmAlloy109 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.
Chemical Content(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Mechanical Properties of nichrome wire
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
Regular size of Nickel alloy wire :
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
Mine trolley brake resistor:
