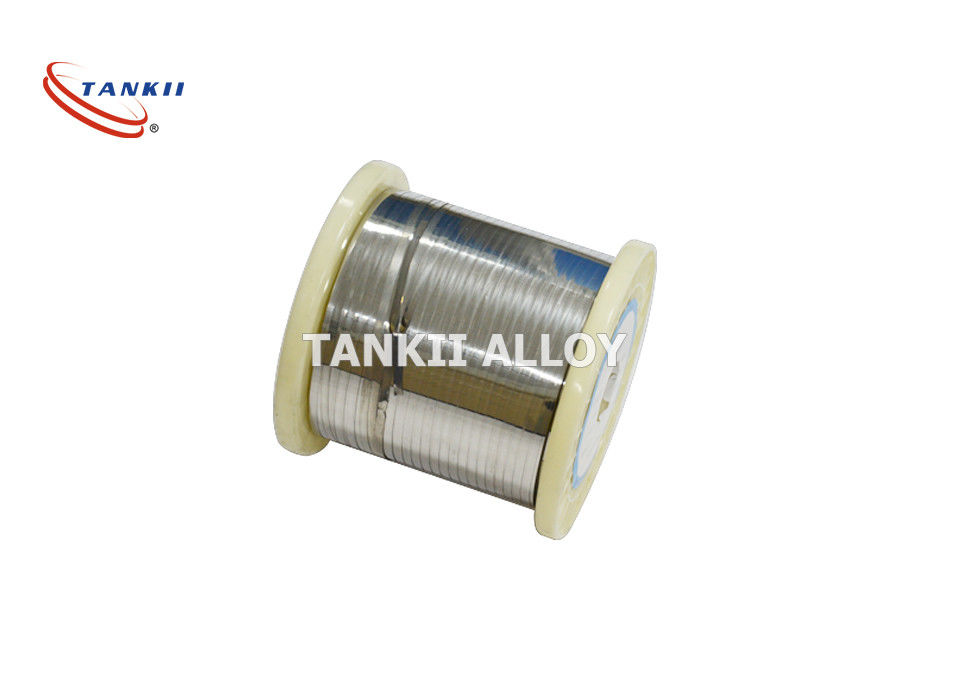

Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade

Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade

  • Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
  • Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001,SGS
Model Number: NCHW - 1 (NICr8020)
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Packaging Details: Standard exoprt package
Delivery Time: About 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Contact Now
Detailed Product Description
Surface: Bright Diameter: 0.04mm~7.0mm
Leading Time: 5~20 Days As Per The Order Qty Item: Nicr AA / Resistohm 80 / Stablohm 650 Strip Used For Dymamic Braking Resistors
Ribbons:: 0.05*0.2-2.0*6.0mm Grade: NiCr8020
High Light:

Flat Electric Heating Resistance Wire

,

Nicr Heating Resistance Wire

,

NiCr8020 Grade Heating Resistance Wire

NiCr8020 Nickel chrome flat electric heating resistance wire

Nickel chrome flat electric heating resistance wire NiCr8020

Product Description
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.

Chemical Content(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

Mechanical Properties of nichrome wire

Max Continuous Service Temperature: 1200ºC
Resisivity 20ºC: 1.09 ohm mm2/m
Density: 8.4 g/cm3
Thermal Conductivity: 60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion: 18 α×10-6/ºC
Melting Point: 1400ºC
Elongation: Min 20%
Micrographic Structure: Austenite
Magnetic Property: nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.006 1.012 1.018 1.025 1.026 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 1.025 -

Regular size of Nickel alloy wire :

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm



Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 0
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 1
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 2
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 3
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 4

Mine trolley brake resistor:
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade 5
