Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: NC005
Payment & Shipping Terms
Minimum Order Quantity: 10kg per size
Packaging Details: Standard export package
Delivery Time: 3-5 days after getting the payment
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 1000T per year
Item: |
Alloy 45 / Mws-294 / Constantan Flat Wire Used For TN Thermocouple Wire / Relay |
Product Shape: |
Wire Round/ Flat/strip |
Mainly For: |
Electrical Elements/ Thermocouple Wire |
Pack: |
On Reel |
Item: |
Alloy 45 / Mws-294 / Constantan Flat Wire Used For TN Thermocouple Wire / Relay |
Product Shape: |
Wire Round/ Flat/strip |
Mainly For: |
Electrical Elements/ Thermocouple Wire |
Pack: |
On Reel |
Alloy 45 / mws-294 / constantan Flat Wire Used For TN Thermocouple wire / Relay
Product Description
The constantan resistivity (4.9 x 10−7 Ω·m) is high enough to achieve suitable resistance values in even very small grids, and its temperature coefficient of resistance is fairly low.
This alloy has, for example, an adequately high strain sensitivity, or gauge factor, which is relatively insensitive to strain level and temperature.
Constantan is a proprietary name for a copper–nickel alloy also known as Eureka, Advance, and Ferry. It usually consists of 55% copper and 45% nickel.
Its main feature is the low thermal variation of its resistivity, which is constant over a wide range of temperatures.
Other alloys with similarly low temperature coefficients are known, such as manganin (Cu [86%] / Mn [12%] / Ni [2%] ).
Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance. It always used for thermal overload relay, low-voltage relay etc.
Alloy 45 / mws-294 / constantan Flat Wire Used For TN Thermocouple wire / Relay
Chemical Content, %
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
| 44 | 1.0 | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
Max Continuous Service Temp | 400ºC |
Resisivity at 20ºC | 0.49±10%ohm mm2/m |
Density | 8.9 g/cm3 |
Thermal Conductivity | <-6 |
Melting Point | 1280ºC |
Tensile Strength,N/mm2 Annealed,Soft | ≥420 Mpa |
Elongation(anneal) | 25%(Min) |
Elongation(cold rolled) | ≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) | -43 |
Micrographic Structure | austenite |
Magnetic Property | Non |
Alloy 45 / mws-294 / constantan Flat Wire Used For TN Thermocouple wire / Relay
Our advantages:
a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) We can provide all kinds of electric heating alloy material and elements, including customized products.
c) We can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

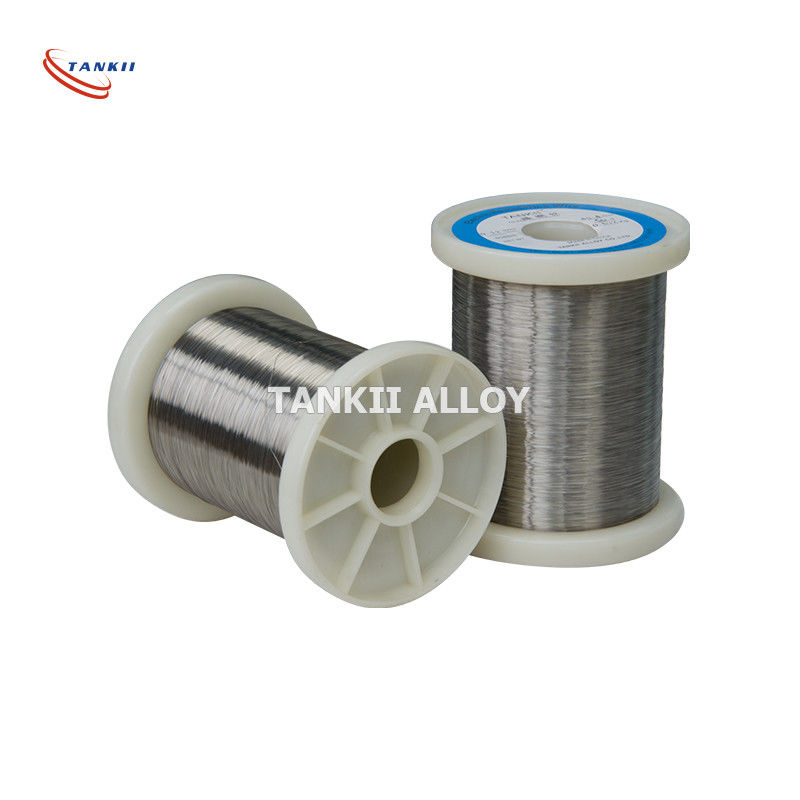

Product picture:
