Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: K /N /E / T /J type
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Port: |
Shanghai |
Application: |
Industry |
Type: |
Insulated |
Surface: |
Bright |
Size: |
All Size Available |
Material: |
Nickel Chrome |
Color: |
As Required |
Shape: |
Wire |
Insulation: |
Bare |
MOQ: |
20KG |
Port: |
Shanghai |
Application: |
Industry |
Type: |
Insulated |
Surface: |
Bright |
Size: |
All Size Available |
Material: |
Nickel Chrome |
Color: |
As Required |
Shape: |
Wire |
Insulation: |
Bare |
MOQ: |
20KG |
Product Description

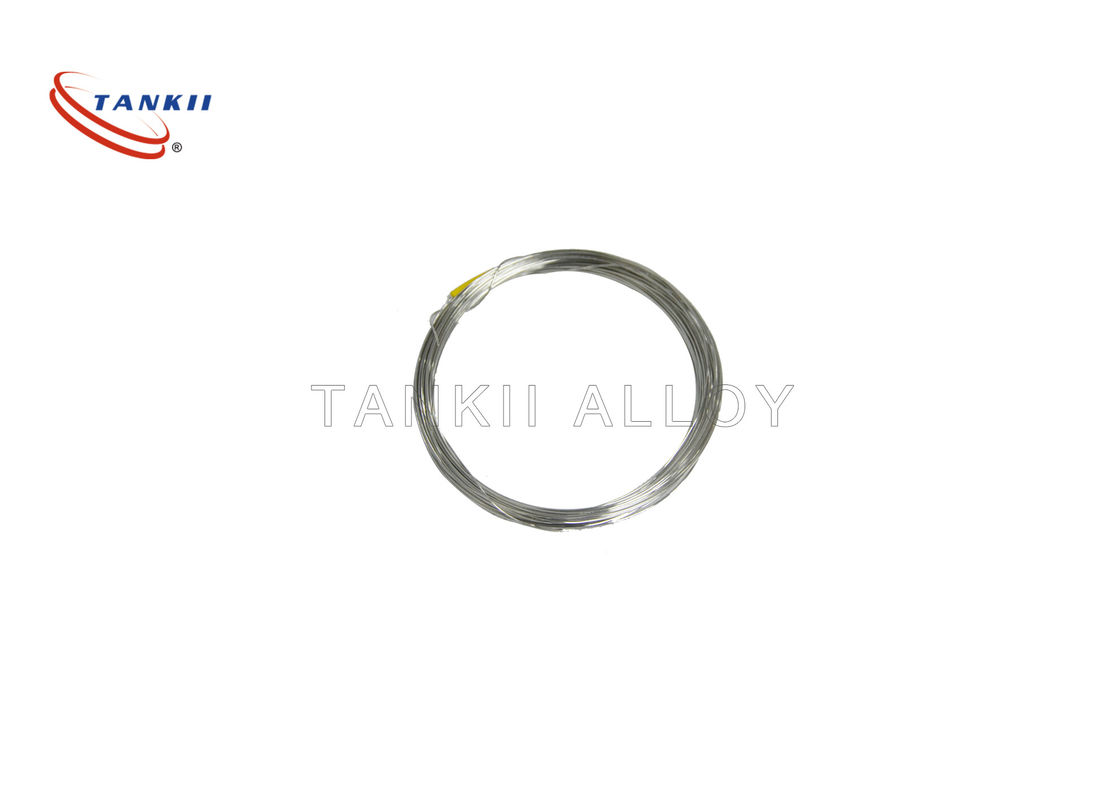

K /N /E / T /J type Thermocouple wire IEC class one / two
NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Name |
Type |
Grade |
Working temperature (deg) |
Tolerance |
Standard |
|
| Long Term |
Short Term
|
|||||
| NiCr-NiSi |
K |
1 |
-40~1100 |
-40~1300 |
±1.5 deg |
GB/T 2614-1998 |
| 2 |
±2.5 deg |
|||||
| NiCr-CuNi |
E |
1 |
-40~800 |
-40~900 |
±1.5 deg |
GB/T 4993-1998 |
| 2 |
±2.5 deg |
|||||
| Fe-Constantan |
J |
1 |
-40~600 |
-40~800 |
±1.5 deg |
GB/T 4994-1998 |
| 2 |
±2.5 deg |
|||||
| Cu-CuNi |
T |
1 |
-200~300 |
-200~400 |
±0.5 deg |
GB/T 2903-1998 |
| 2 |
±1 deg |
|||||
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
