Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: 0Cr13Al4
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: On Spool, In Coil
Delivery Time: 2 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
Three-Way Catalyst Material 1Cr13Al4 Fecral Alloy Strip 1.0mm Thickness |
Density: |
7.4 |
Resistivity: |
1.25 |
Width: |
Up To 1200 |
Thickness: |
Customized |
Application: |
Elements For Tail Gas Clean-up |
Item: |
Three-Way Catalyst Material 1Cr13Al4 Fecral Alloy Strip 1.0mm Thickness |
Density: |
7.4 |
Resistivity: |
1.25 |
Width: |
Up To 1200 |
Thickness: |
Customized |
Application: |
Elements For Tail Gas Clean-up |
FeCrAl Alloy Strip (0Cr13Al4)for Three Way Catalyst
| Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy |
||||||||
| Properties Grade |
1Cr13Al4 |
0Cr25Al5 |
0Cr21Al6 |
0Cr23Al5 |
0Cr21Al4 |
0Cr21Al6Nb |
0Cr27Al7Mo2 |
|
| Main Chemical Composition (%) |
Cr |
12.0-15.0 |
23.0-26.0 |
19.0-22.0 |
22.5-24.5 |
18.0-21.0 |
21.0-23.0 |
26.5-27.8 |
| Al |
4.0-6.0 |
4.5-6.5 |
5.0-7.0 |
4.2-5.0 |
3.0-4.2 |
5.0-7.0 |
6.0-7.0 |
|
| Re |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
|
| Fe |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
|
| Nb0.5 |
Mo1.8-2.2 |
|||||||
| Max Continuous Service Temperature(oC) |
950 |
1250 |
1250 |
1250 |
1100 |
1350 |
1400 |
|
| Resisivity 20oC (Ωmm2/m) |
1.25 ±0.08 |
1.42 ±0.06 |
1.42 ±0.07 |
1.35 ±0.07 |
1.23 ±0.07 |
1.45 ±0.07 |
1.53 ±0.07 |
|
| Density(g/cm3) |
7.4 |
7.1 |
7.16 |
7.25 |
7.35 |
7.1 |
7.1 |
|
| Thermal Conductivity |
52.7 |
46.1 |
63.2 |
60.2 |
46.9 |
46.1 |
45.2 |
|
| (KJ/m@h@oC) |
||||||||
| Coefficient of Thermal Expansion(α×10-6/oC) |
15.4 |
16 |
14.7 |
15 |
13.5 |
16 |
16 |
|
| Approximate Melting Point( oC) |
1450 |
1500 |
1500 |
1500 |
1500 |
1510 |
1520 |
|
| Tensile Strength(N/mm2) |
580-680 |
630-780 |
630-780 |
630-780 |
600-700 |
650-800 |
680-830 |
|
| Elongation(%) |
>16 |
>12 |
>12 |
>12 |
>12 |
>12 |
>10 |
|
| Section Variation |
65-75 |
60-75 |
65-75 |
65-75 |
65-75 |
65-75 |
65-75 |
|
| Shrink Rate (%) |
||||||||
| Repeatedly Bend Frequency(F/R) |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
|
| Hardness (H.B.) |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
|
| Continuous Service Time |
no |
≥80/1300 |
≥80/1300 |
≥80/1300 |
≥80/1250 |
≥50/1350 |
≥50/1350 |
|
| Micrographic Structure |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
|
| Magnetic Property |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic | |

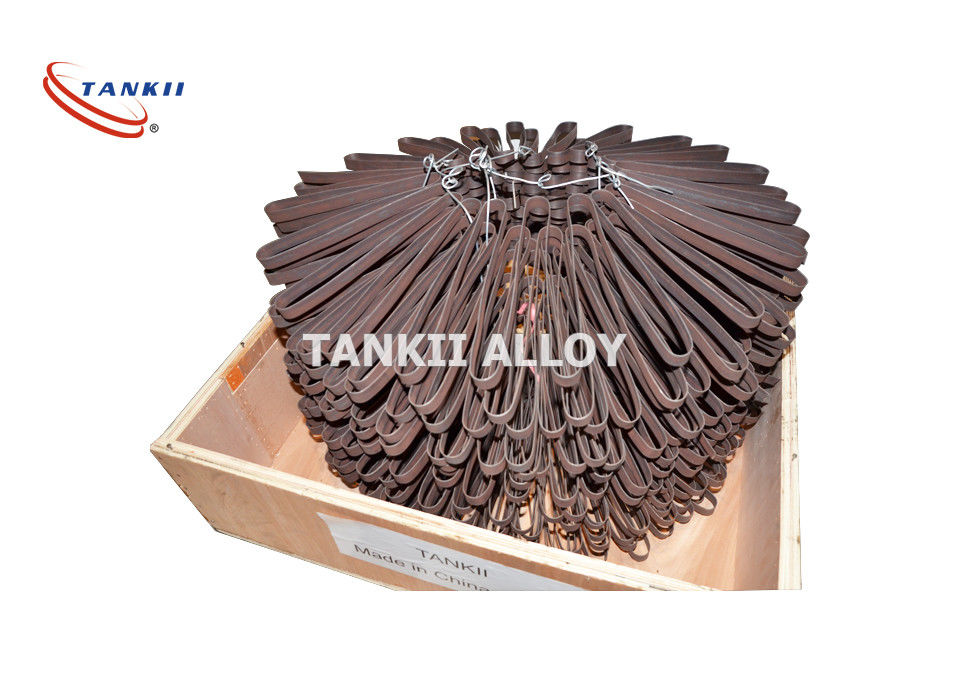

Three-Way Catalyst Material 1Cr13Al4 Fecral Alloy Strip 1.0mm Thickness
1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm
Special width: up to 1200mm for 1Cr13Al4
2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)
3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm
4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm
Application:
Honeycomb carrier
4. Why choose us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
Welcome to call me or email to me for more info on resistohm strips, 1Cr13Al4 strip with good price.
1. Good Quality
2. Fast shipment
3. Small MOQ
4. Big Width for 1Cr13Al4 strip
5. Good reputation in the international market
