Product Details
Place of Origin: CHINA
Brand Name: Tankii
Certification: ISO 9001
Model Number: ERNICU-7,
Payment & Shipping Terms
Minimum Order Quantity: 15KG
Packaging Details: spool，coil
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 2000 kg/month
Material: |
Nickel Cooper |
Shape: |
Wire |
Application: |
Welding |
Color: |
Gray |
Dimensions: |
1.6mm,3.17 Mm |
Material: |
Nickel Cooper |
Shape: |
Wire |
Application: |
Welding |
Color: |
Gray |
Dimensions: |
1.6mm,3.17 Mm |

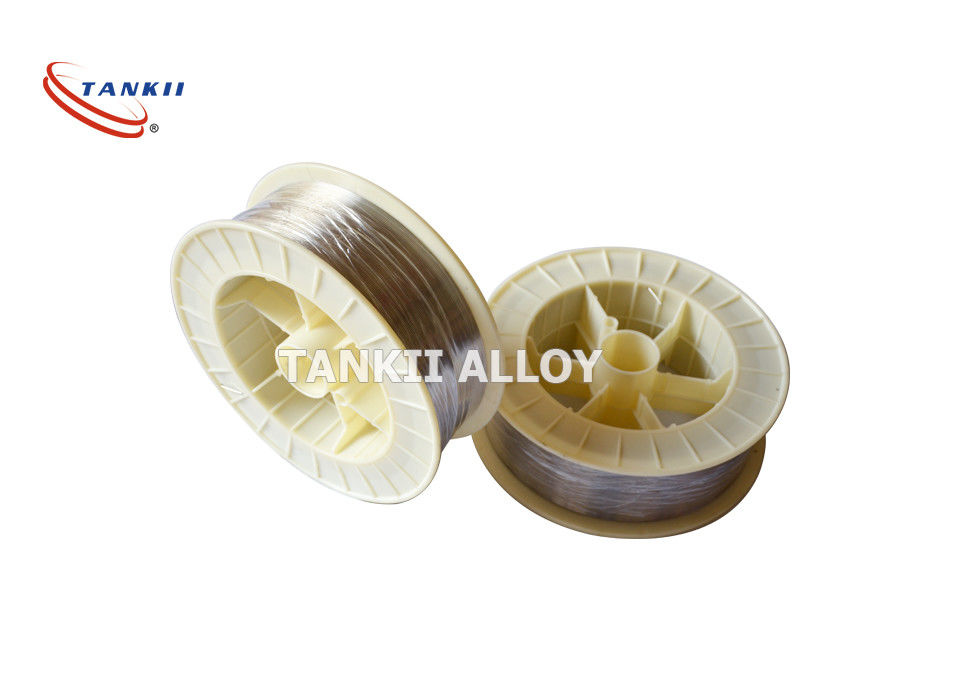

MONEL MIG WELDING WIRE ERNICU-7, Nickel copper alloy welding wire TIG ROD ER NiCu-7
Applications
Nickel-copper base wire, commonly referred to as filler metal 60, used for welding matching alloy 400 (Monel) alloys. The IABCO ERNiCu-7 wire can be used to weld the precipitation hardened N05500 alloy but the weld metal will undermatch the strength of the base material. Alloy 400 has good corrosion resistance to seawater, salts and reducing acids. Typical applications include heat exchangers, piping, pumps, valves and process vessels in the chemical, offshore and marine industries.
Base materials
Used for welding matching alloys: UNS: N04400, N04405, N05500. EN: 2.4360, 2.4361, 2.4375. Proprietary: Nicorros 400 (Outokumpu VDM), Monel 400/R405/K500 (Special Metals).
Gas metal arc welding (GMAW) is an arc welding process in which the source of heat is an arc formed between consumable metal electrode and the work piece with an externally supplied gaseous shield of gas either inert such as argon and /or helium
TYPICAL CHEMISTRY
| C | Mn | Fe | P | S | Si | Cu | Ni | Al | Ti |
| 0.05 | 3.53 | 0.53 | 0.004 | 0.002 | 0.87 | Bal. | 65.3 | 0.02 | 2.2 |
TYPICAL MECHANICAL PROPERTIES
| TENSILE STRENGTH | 75,000 PSI |
| YIELD STRENGTH | 52,000 PSI |
| ELONGATION | 34% |
