Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI
Model Number: NiCr3520
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: $10~$30/KG
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600T per moth
Port: |
Shanghai,China |
Brand: |
Tankii |
Ni: |
34.0-37.0 |
Max Continuous Operating Temperature(℃): |
1100 |
Resistivity(Ω/cmf,20℃): |
1.04 |
Resisitivity(μΩ/m,60℉): |
626 |
Density(g/cm³): |
7.9 |
Thermal Conductivity(KJ/m·h·℃): |
43.8 |
Linear Expansion Coefficient(x10﹣6/℃)20-1000℃: |
19.0 |
Tensile Strength(N/m㎡): |
750 |
Melting Point (℃): |
1390 |
Hardness(Hv): |
180 |
Elongation(%): |
≧20 |
Micrographic Structure: |
Austenite |
Magnetic Property: |
Non |
Fast Life(h/℃): |
≧81/1200 |
Grade: |
NiCr Alloy |
Application: |
Heating Element And Resistor |
Powder Or Not: |
Not Powder |
Ultimate Strength( ≧mpa): |
As Standard |
Type: |
Nickel Chrome Strip |
Surface: |
Bright |
Shape: |
Strip |
Material: |
Nickel Chrome |
Condition: |
Bright |
Color: |
Silvery White |
Feature: |
Good Form Stability |
Port: |
Shanghai,China |
Brand: |
Tankii |
Ni: |
34.0-37.0 |
Max Continuous Operating Temperature(℃): |
1100 |
Resistivity(Ω/cmf,20℃): |
1.04 |
Resisitivity(μΩ/m,60℉): |
626 |
Density(g/cm³): |
7.9 |
Thermal Conductivity(KJ/m·h·℃): |
43.8 |
Linear Expansion Coefficient(x10﹣6/℃)20-1000℃: |
19.0 |
Tensile Strength(N/m㎡): |
750 |
Melting Point (℃): |
1390 |
Hardness(Hv): |
180 |
Elongation(%): |
≧20 |
Micrographic Structure: |
Austenite |
Magnetic Property: |
Non |
Fast Life(h/℃): |
≧81/1200 |
Grade: |
NiCr Alloy |
Application: |
Heating Element And Resistor |
Powder Or Not: |
Not Powder |
Ultimate Strength( ≧mpa): |
As Standard |
Type: |
Nickel Chrome Strip |
Surface: |
Bright |
Shape: |
Strip |
Material: |
Nickel Chrome |
Condition: |
Bright |
Color: |
Silvery White |
Feature: |
Good Form Stability |

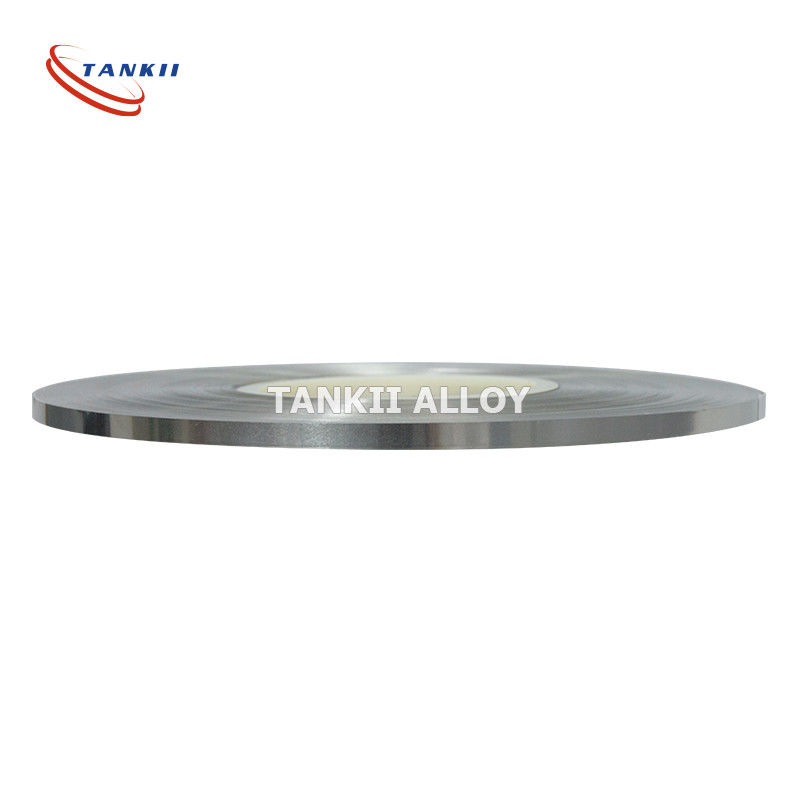

NiCr3520 Nickel Chrome Heating Strip
Nickel chromium alloy has high resistivity,good anti-oxidation properties,high temperature strength,very good form stability.It is widely used in electrical heating element material,resistor,industrial furnaces,etc.
| Port | Shanghai,China | fast life(h/℃) | ≧81/1200 |
| Brand | tankii | grade | NiCr alloy |
| Ni | 34.0-37.0 | application | heating element and resistor |
| max continuous operating temperature(℃) | 1100 | powder or not | powder |
| resistivity(Ω/cmf,20℃) | 1.04 | ltimate strength( ≧mpa) | as standard |
| resisitivity(μΩ/m,60℉) | 626 | type | Nickel Chrome strip |
| density(g/cm³) | 7.9 | surface | bright |
| thermal conductivity(KJ/m·h·℃) | 43.8 | shape | strip |
| linear expansion coefficient(x10﹣6/℃)20-1000℃ | 19.0 | Material | nickel chrome |
| melting point (℃) | 1390 | condition | bright |
| hardness(Hv) | 180 | color | silvery white |
| Elongation(%) | ≧20 | density | 8.9 g/cm3 |
| Micrographic structure | austenite | feature | good form stability |
| Magnetic property | non | MOQ | 100kg |
Company Profile
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
