Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001:2009
Model Number: Monel 400
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Packaging Details: 15kg/Spool, Carton, Wooden Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200+ton+month
Size: |
1.6mm,2.0mm |
Surface: |
Bright Thermal Spray Wire |
Product Name: |

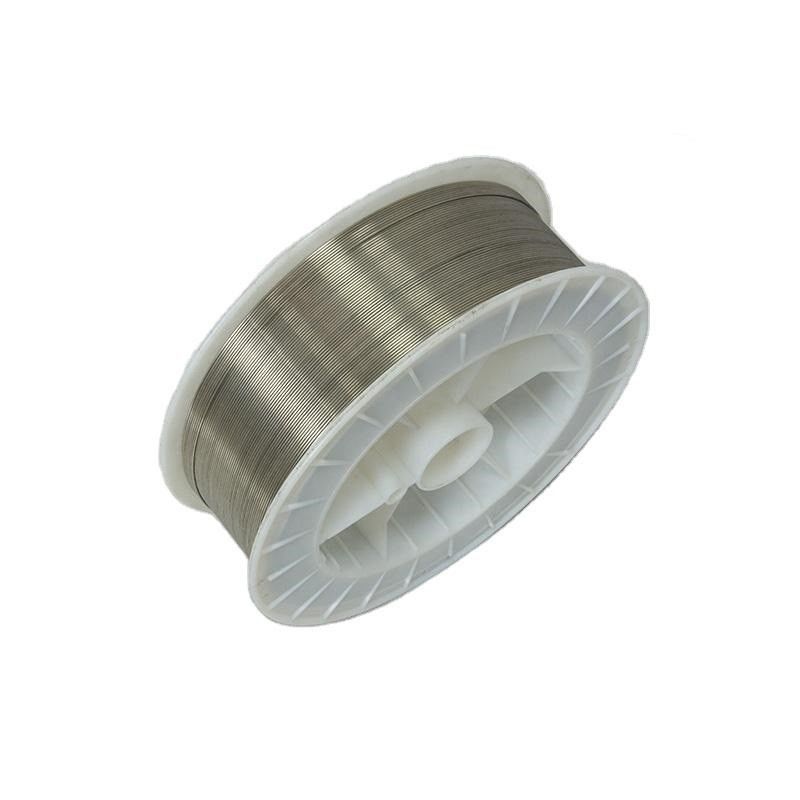

Monel 400 Thermal Spray Wire |
Wire Type: |
Thermal Spray Wire |
HS Code: |
75052200 |
Size: |
1.6mm,2.0mm |
Surface: |
Bright Thermal Spray Wire |
Product Name: |
Monel 400 Thermal Spray Wire |
Wire Type: |
Thermal Spray Wire |
HS Code: |
75052200 |
Applications
Corrosion protection for chemical and desalination plants.
Resist saltwater corrosion for compoents such as steam valves, pumps, seal rings and plungers.
Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.
Product Details
Chemical composition:
| Grade | Chemical composition(%) | ||||||
| Ni | Fe | Cu | C | Mn | Si | Ti | |
| Monel 400 | Min 62 | Max 2.5 | 28-32 | Max 0.15 | 2-4 | Max 1.2 | 1.5~3.0 |
Physical Properties
| Grade | Density | Melting Point |
| Monel 400 | 8.83g/cm3 | 1310°C |
Typical Characteristics:
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| HRB 84 | 4310 psi | 10 lbs /hr/100A | 70% | Good |
Sizes & Packaging:
| Diameter | Packaging | Wire Weight |
| 1/16" (1.6mm) | MIG (D 300) | 15kg((33 lb)/spool |
Note that special sizes, or packing requirements are available on all requests.
Specifications:
EN ISO 18274 Ni 4060 ( NiCu30Mn3Ti), EN ISO 14919
