Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: 0cr21al6nb
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Packaging Details: Carton, wooden case according to custom's requirements
Delivery Time: 5-20 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200+ton+month
Max Continuous Service Temperature: |
1350'C |
Resisivity At 20'C: |
1.45+/-0.07ohm Mm2/m |
Density: |
7.1g/cm3 |
Coefficient Of Thermal Expansion: |
16.0×10-6/'C (20'C~1000'C) |
Melting Point: |
1510'C |
Elongation: |
Min 12% |
Magnetic Property: |
Magnetic |
Max Continuous Service Temperature: |
1350'C |
Resisivity At 20'C: |
1.45+/-0.07ohm Mm2/m |
Density: |
7.1g/cm3 |
Coefficient Of Thermal Expansion: |
16.0×10-6/'C (20'C~1000'C) |
Melting Point: |
1510'C |
Elongation: |
Min 12% |
Magnetic Property: |
Magnetic |

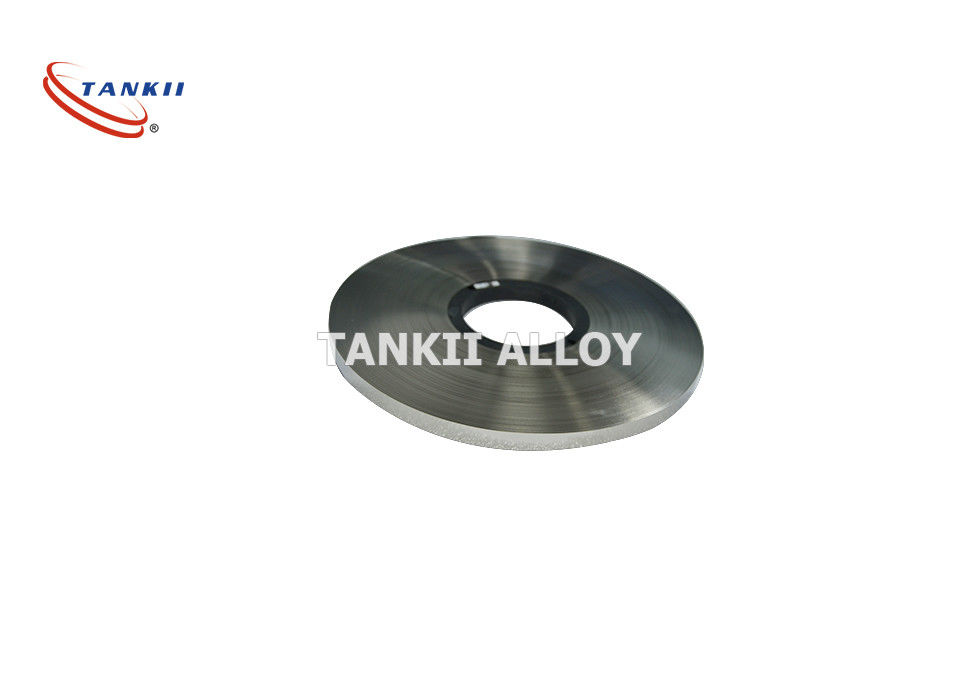

0cr21al6nb Fecral Resistor Strip/Braking Resistance Strip
1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in industrial electric furnace, household electrical appliance and Far infrared ray device.
2. Specification
Wire:
Diameter: 0.15mm-8.0mm
Strip:
Thickness: 0.6mm-1.5mm
Width: over 40mm
3. Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
4. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other | |
| Max | ||||||||||
| 0.05 | 0.025 | 0.020 | 0.50 | ≤0.6 | 21.0-23.0 | ≤0.60 | 5.0-7.0 | Balance | - | |
Mechanical Properties
| Max Continuous Service Temperature: Resisivity 20'C Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1350'C 1.45+/-0.07ohm mm2/m 7.1g/cm3 46.1 KJ/m@h@'C 16.0×10-6/'C (20'C~1000'C) 1510'C Min 12% Ferrite magnetic |
OTHER Chemical Composition And Main Properties Of FeCrAl
