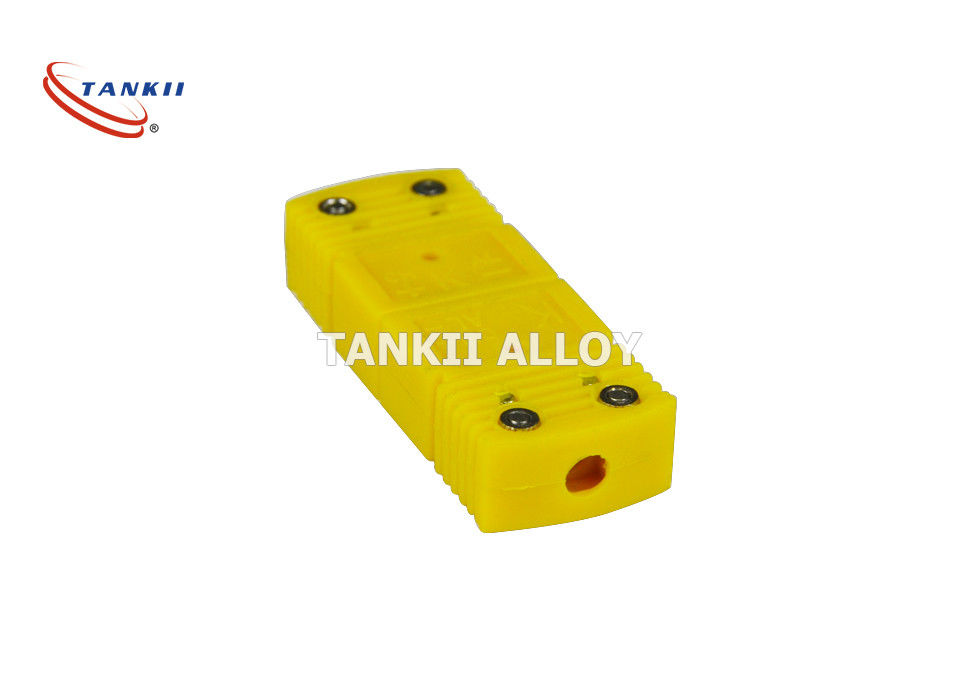

Custom RTD Solid Pin DIN E Type Thermocouple Plugs

Custom RTD Solid Pin DIN E Type Thermocouple Plugs
Custom RTD Solid Pin DIN E Type Thermocouple Plugs Custom RTD Solid Pin DIN E Type Thermocouple Plugs Custom RTD Solid Pin DIN E Type Thermocouple Plugs Custom RTD Solid Pin DIN E Type Thermocouple Plugs

Large Image :  Custom RTD Solid Pin DIN E Type Thermocouple Plugs

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K / J / T/ E/ B / S / R
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pcs
Price: Negotiation
Packaging Details: carton case
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Pieces per day

Custom RTD Solid Pin DIN E Type Thermocouple Plugs

Description
Item: ANSI / IEC / DIN Standard Thermocouple Plugs And Sockets Type K / J / T/ N / E / S Color: Custom Made
Standard: IEC Or GB Type: K, E, J, T. N.S./R
Available Size: Mini And Big MOQ: 5pcs
Highlight:

DIN E Type Thermocouple Plugs

,

Solid Pin Thermocouple Plugs

,

RTD Thermocouple Plugs

ANSI / IEC / DIN Standard Thermocouple Plugs And Sockets Type K / J / T/ N / E / S



Quick Details



Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.


Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.



All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.



ANSI / IEC / DIN Standard Thermocouple Plugs And Sockets Type K / J / T/ N / E / S



STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS

1. Solid Pin Design
2. High Quality Thermoplastic body
3. Polarized Round pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit

10. Available in all calibrations; Type B, E, J, K, N, R, S, T

Custom RTD Solid Pin DIN E Type Thermocouple Plugs 0



ANSI / IEC / DIN Standard Thermocouple Plugs And Sockets Type K / J / T/ N / E / S



Connector Type and Color

Type Color Conductor Material
KX yellow ( ANSI ) or green ( IEC ) NiCr-NiSi
NX orange NiCrSi-NiSiMg
EX purple NiCr-CuNi
JX black Fe-CuNi
TX blue Cu-CuNi
R/S green Cu-CuNi
PT100 white Cu/Ni



Pack and delivery:

Packing: Carton case

Delivery time : 5-7 days after getting the payment

Delivery: By express



Application:



Custom RTD Solid Pin DIN E Type Thermocouple Plugs 1
