Bright Annealed 0.05mm CuNi23 Copper Nickel Alloy Wire

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015

Model Number: CuNi23

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 100+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

CuNi23 Copper Nickel Alloy Wire

,

0.05mm Copper Nickel Alloy Wire

,

Bright Annealed Copper Nickel Wire

Material:
Copper Nickel
Shape:
Round Wire
Carbon Content:
Low
Specification:
0.05mm-10mm
Surface:
Bright Annealed
Density:
8.9g/cm3
Material:
Copper Nickel
Shape:
Round Wire
Carbon Content:
Low
Specification:
0.05mm-10mm
Surface:
Bright Annealed
Density:
8.9g/cm3
Description

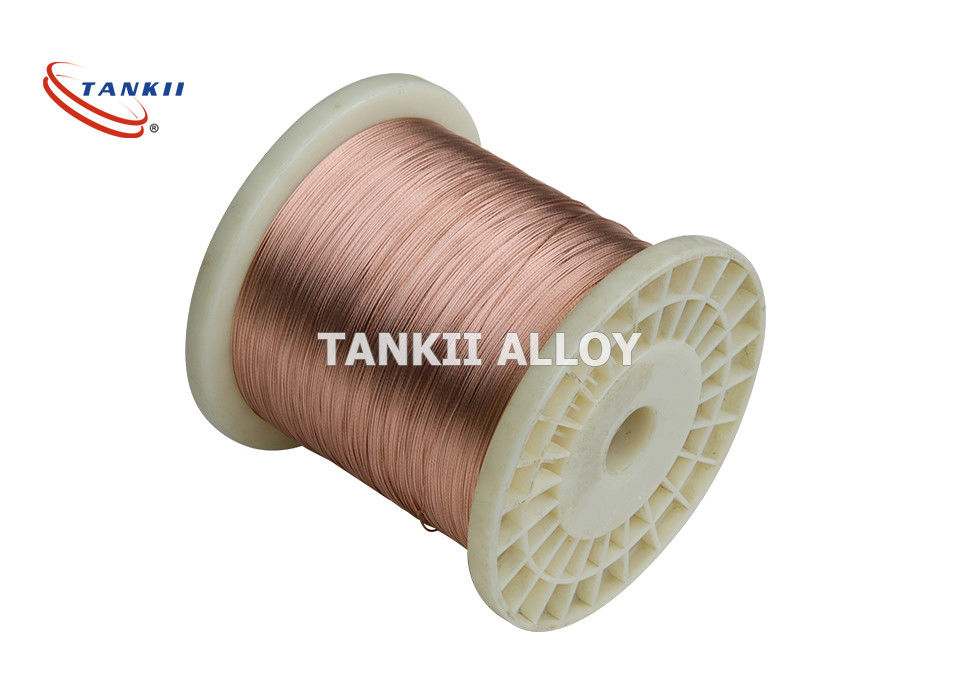

Bright Annealed 0.05mm CuNi23 Copper Nickel Alloy Wire

20/22/24 AWG Copper Nickel Filament Wire CuNi23 Silver White Round Wire

Introduction:

The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

CuNi23 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

The alloy is non-magnetic. It is used for electrical regenerator's variable resistor and the strain resistor,
potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals.

Copper nickel alloy series:Constantan CuNi40 (6J40), CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.

Due to high tensile strength and increased resistivity values, the copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.

CuNi23Mn is a copper-nickel alloy (CuNi alloy) with medium resistivity for medium-low temperature resistances. The alloy is suitable for use at temperatures up to 400°C (750°F)



CuNi23Mn is very malleable and has a good resistance to corrosion until temperatures of 400°C. Ideal applications areas are all types of resistances used at low temperature.



CuNi23Mn is typically used in heating cables, fuses, resistors and various types of controllers.



Physical Data



Density 8.9 g/cm3

Specific Heat 0.37(J/kg 20°C)

Electrical Resistivity 0.03×10-6ohm.m

Melting Point 1150°C

Maximum Operating Temperature 400°C

Coefficient of linear expansion (coeff 10-6/°C) 15.7 from 20 to 1000°C

Grade CuNi23 Surface bright
Condition annealed Dimension 0.05-10mm
Resistivity 0.30 Density(g/cm3) 8.9
Ultimate Strength (≥ MPa) ≥410 Conductor type Solid
Ni% 23% Elongation ≥25%
Trademark TANKII Origin China



Main grades and properties



Bright Annealed 0.05mm CuNi23 Copper Nickel Alloy Wire 0Bright Annealed 0.05mm CuNi23 Copper Nickel Alloy Wire 1Bright Annealed 0.05mm CuNi23 Copper Nickel Alloy Wire 2
