Highlight:
Bright Thermocouple Bare Wire
, Induction Melting Thermocouple Bare Wire
, Type S Thermocouple Bare Wire

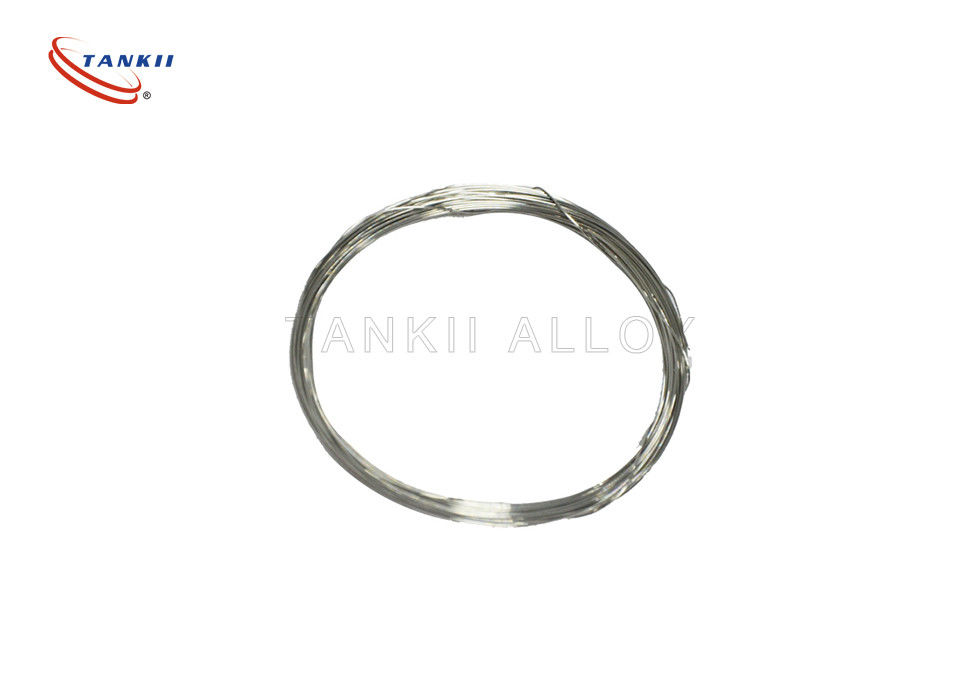

Type S Induction Melting Bright Thermocouple Bare Wire
Noble Metal Thermocouple S Type Bare Wire Thermocouple Used For Aluminum Industry
Introduction:
Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.
Alloys are generally produced by vacuum arc melting or induction melting. While common alloys used in the jewelry industry are malleable, less common alloys can be very brittle and unworkable.
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting
Noble Metal Thermocouple S Type Bare Wire Thermocouple Used For Aluminum Industry
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Tankii products conform to the standards of IEC584 -1and IEC-2.
Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii noble metal thermocouple alloy wire with class 1 and 2 are available.
Application Range of S type thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Dental
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
11. Laboratory
Noble Metal Thermocouple S Type Bare Wire Thermocouple Used For Aluminum Industry
Tankii noble metal Thermocouple Type and Temperature Range
|
Thermocouple type and index
|
Measurement Range
℃
|
|
Type
|
Index
|
|
PtRh30-PtRh6
|
B |
600~1700 |
|
PtRh13-Pt
|
R |
0~1600 |
|
PtRh10-Pt
|
S |
0~1600 |
|
NiCr-NiSi
|
K |
-200~1300 |
|
NiCr-CuNi (constantan)
|
E |
-200~900 |
|
Fe-CuNi (constantan)
|
J |
-40~750 |
|
Cu-CuNi (constantan)
|
T |
-200~350 |
|
NiCrSi-NiSi
|
N |
-200~1300 |
The allowable grade and Tolerance are obtained at 0℃
|
Thermocouple
Type
|
Grade |
Temperature range
℃
|
Allowable Tolerance /℃ |
| Type B |
Ⅱ |
600~1700 |
±0.25% t |
| Ⅲ |
600~800 |
±4 |
| 800~1700 |
±0.5%t |
| Type R(S) |
Ⅰ |
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
| Ⅱ |
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| Type K and Type N |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Type E |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Type J |
Ⅰ |
-40~750 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~750 |
±2.5℃ or ±0.75%t |
| Type T |
Ⅰ |
-40~350 |
±0.5℃ or ±0.4%t |
| Ⅱ |
-40~350 |
±1.0℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±1.0℃ or ±1.5%t |
Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
Delivery and Packing of thermocouple wire:
1. Packaging Details : Carton box.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry
Welcome to call me or email to me for more information on S /B/R type thermocouple wire, Thermocouple cable, thermocouple flat wire, thermocouple strip.
