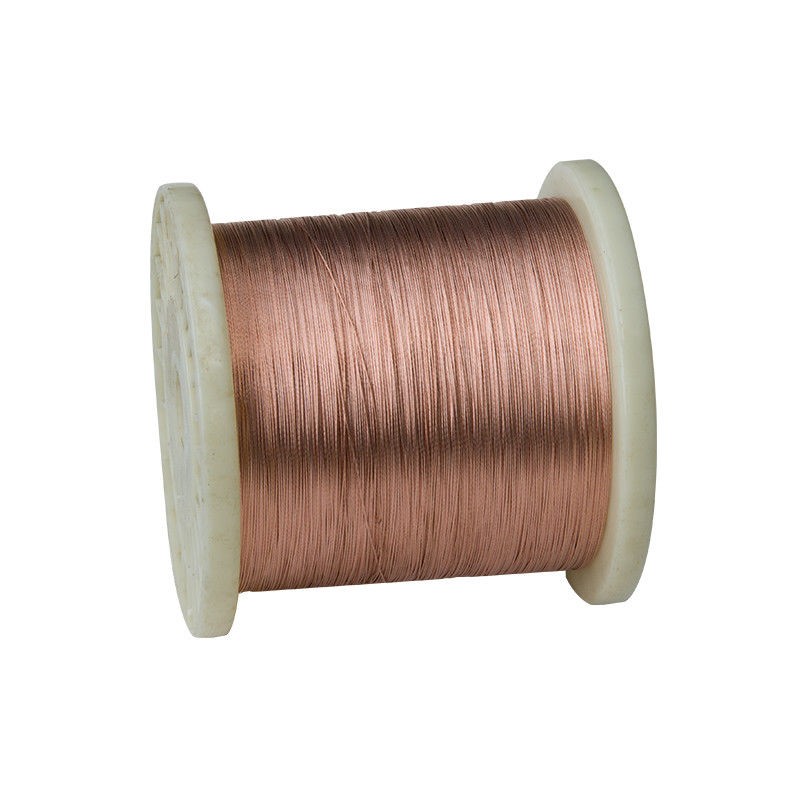

0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay

0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay

    • 0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay
    • 0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay
    • 0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay
    • 0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay
  • 0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: CuMn3

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KG
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Material: CU-MN Alloy Diameter: 0.05mm
    Thickness: 0.02mm Width: 300 Mm Max.
    Shape: Pipe/wire/rod/strip/plate/coil

    Copper Nickel Low Resistance Alloys CuMn3 (NC012 / ISA 13 ) for Thermal Overload Relay

    1. Description

    Cupronickel, also can be called copper nickel alloy, is an alloy of copper, nickel and strengthening impurities, such as iron and manganese.


    CuMn3

    Chemical Content(%)


    Mn Ni Cu
    3.0   Bal.



    Mechanical Properties


    Max Continuous Service Temp 200 ºC
    Resistivity at 20ºC 0.12 ± 10% ohm*mm2/m
    Density 8.9 g/cm3
    Temperature Coefficient of Resistance < 38 ×10-6/ºC
    EMF VS Cu (0~100ºC) -
    Melting Point 1050 ºC
    Tensile Strength Min 290 Mpa
    Elongation Min 25%
    Micrographic Structure Austenite
    Magnetic Property Non.



    2. Specification

    Wire: Diameter: 0.04mm-8.0mm

    Strip: Thickness: 0.01mm-3.0mm
    Width: 0.5mm-200mm


    3.Usage

    It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.

    4.Features

    It has nice corrosion resistance, good malleability and solderability.


    5. Packing detail


    1). Coil (plastic spool) + compressed ply-wooden case + pallet
    2). Coil (plastic spool) + carton + pallet

    6. Products and services


    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Fast delivery;

    0.05mm Copper Nickel Low Resistance Alloys Cumn3 (NC012 / ISA 13 ) for Thermal Overload Relay
