Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nichrome rod
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Nichrome 60 |
Purity: |
60%Ni |
Surface: |
Bright / Polished / Oxidation |
Density: |
8.2g/cm3 |
Shape: |
Pipe/wire/rod/strip/plate/coil/foil |
Material: |
Nichrome 60 |
Purity: |
60%Ni |
Surface: |
Bright / Polished / Oxidation |
Density: |
8.2g/cm3 |
Shape: |
Pipe/wire/rod/strip/plate/coil/foil |

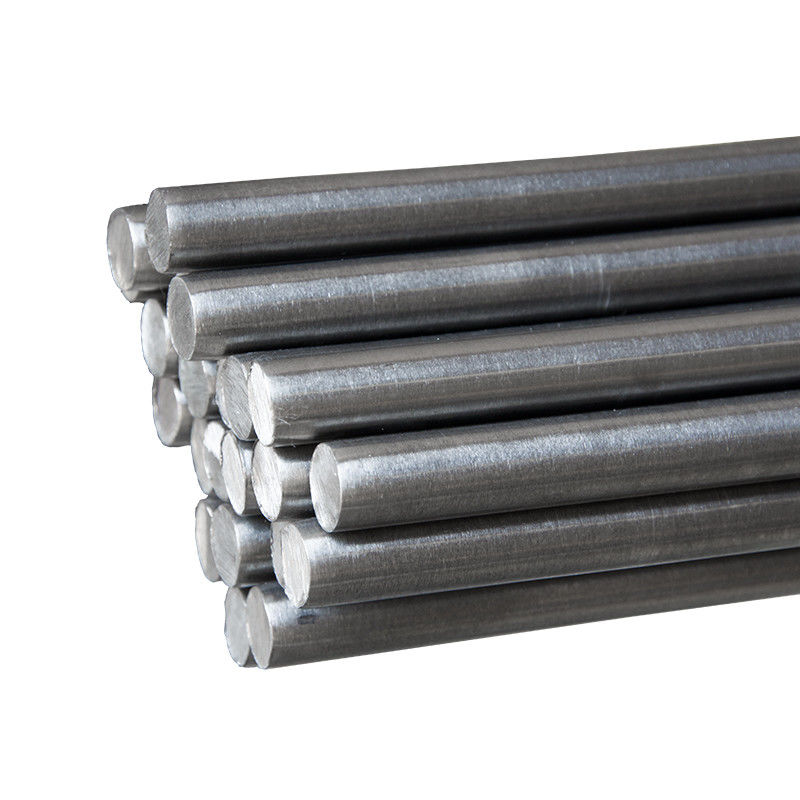

Nichrome 60 Round Bar/Rod for Heating furnaces
(Common Name:Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC)
Ni60Cr15 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
Typical applications for Ni60Cr15 are used in metal sheathed tubular elements,for example,hot plates,
grills,toaster ovens and storage heaters.The alloys is also used for suspended coils in air heaters in clothes dryers,fan heaters,hand dryers etc.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(ohm mm2/m) | 1.12 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 17 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1390 |
| Max continuous operating temperature in air (ºC) | 1150 |
| Magnetic properties | non-magnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni60Cr15W | Wire | D=0.02mm~8mm | ||
| Ni60Cr15R | Ribbon | W=0.3~40 | T=0.03~2.9mm | |
| Ni60Cr15S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni60Cr15F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni60Cr15B | Bar | Dia=8~100mm | L=50~1000 | |
