Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Pure Nickel Pipes |
Purity: |
99.60% Min |
Surface: |
Bright |
Diameter: |
1.0mm Min |
Wall Thickness: |
0.05mm Min |
Density: |
8.90g/cm3 |
Material: |
Pure Nickel Pipes |
Purity: |
99.60% Min |
Surface: |
Bright |
Diameter: |
1.0mm Min |
Wall Thickness: |
0.05mm Min |
Density: |
8.90g/cm3 |

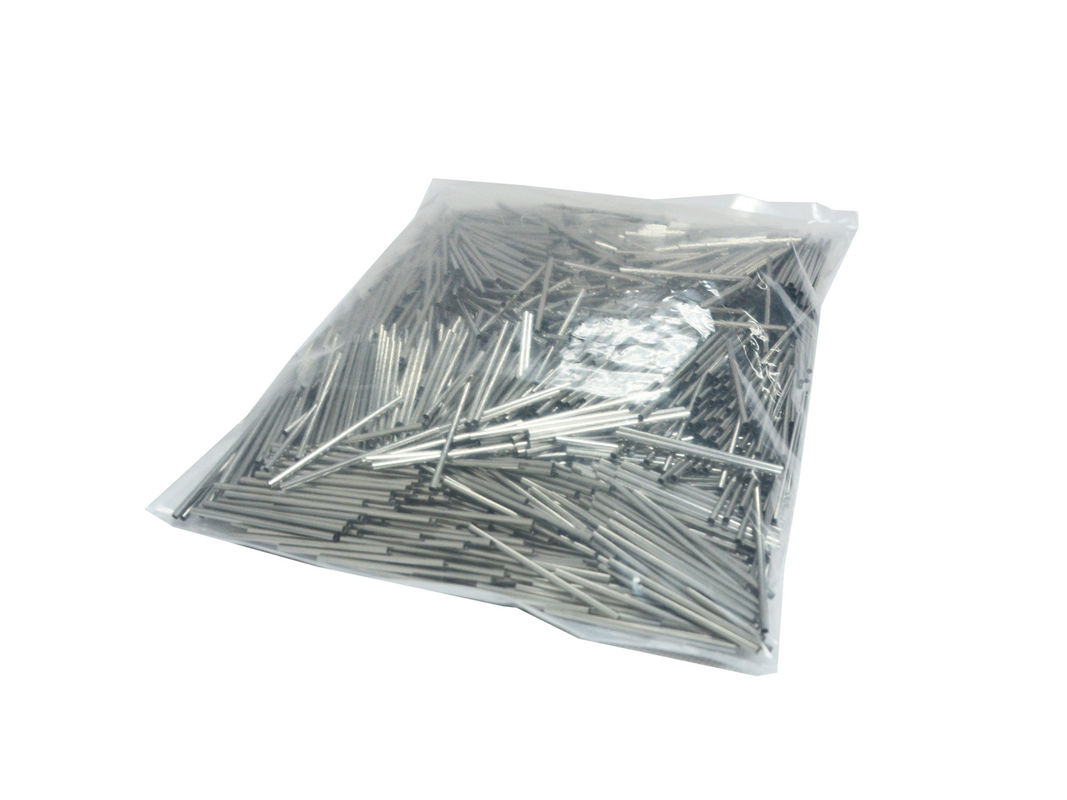

Pure Nickel Alloy 200 201 Seamless Pipe with Purity More Than 99.7%
Product Description
| Item name | Nickel 201 pure nickel pipe astm b161 |
| Size range | O.D 10~114mm W.T 0.4~10mm Length Max 15000mm |
| Standard | ASTM B163, ASTM B161, ASTM B829 |
| Applications | 1) Heat Exchanger 2) Power and Chemical Plant Applications 3) Automotive components 4) Cooling system parts 5) Hydrocarbon refining processing 6) Consumer goods 7) Food processing parts |
Chemical composition:
| Grade | Element Composition/% | ||||||
| Ni+Co | Mn | Cu | Fe | C | Si | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.01 |
| Ni200 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.01 |
| N4 | ≥99.9 | ≤0.002 | ≤0.015 | ≤0.04 | ≤0.01 | ≤0.03 | ≤0.001 |
| N6 | ≥99.5 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.005 |
Mechanical properties:
| Grade | Condition | Tensile Strength ≥(MPa) |
Yield Strength 0.2% offset ≥ (MPa) | Elongation ≥% |
| Ni201 | annealed | 345 | 80 | 35 |
| stress-relieved | 415 | 205 | 15 | |
| Ni200 | annealed | 380 | 105 | 35 |
| stress-relieved | 380 | 80 | 40 | |
| N4 | M (soft) | 390 | / | 35 |
| Y (hard) | 540 | / | / | |
| N6 | M (soft) | 390 | / | 35 |
| Y (hard) | 540 | / | / |
| Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo | |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickle 201 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | -- | -- | -- | -- | -- | |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
| Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0-37.0 | 0.06-0.10 | ≤1.50 | ≤0.015 | ≤1.0 | ≤0.75 | 25.0-29.0 | 0.15-0.60 | 0.15-0.6 | -- | -- | |
| Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
