Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Pure Nickel Pipe |
Purity: |
99.6% Min |
Surface: |
Bright |
Diameter: |
1.00mm Min |
Wall Thickness: |
0.05mm Min |
Density: |
8.9g/cm3 |
Material: |
Pure Nickel Pipe |
Purity: |
99.6% Min |
Surface: |
Bright |
Diameter: |
1.00mm Min |
Wall Thickness: |
0.05mm Min |
Density: |
8.9g/cm3 |

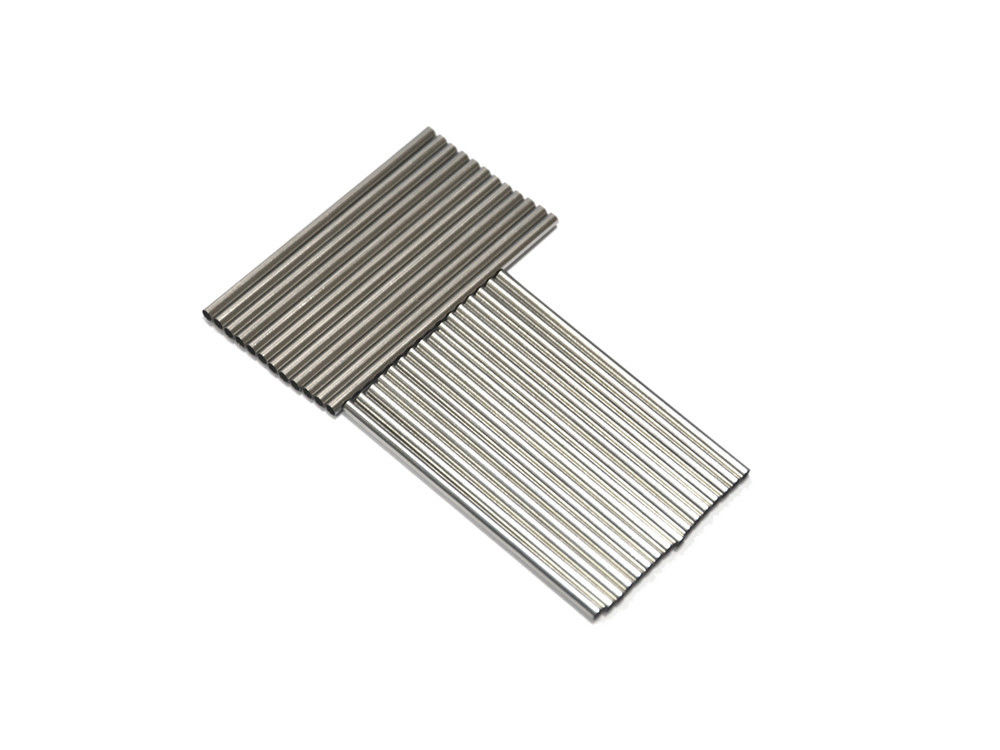

High Corrosion Resistance Pure Nickel Pipe 201 200 N4 N6
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 201 | Min 99 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.02 | Max 0.01 |
Physical Data
| Density | 8.9g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.085×10-6ohm.m |
| Melting Point | 1435-1445ºC |
| Thermal Conductivity | 79.3 W/m-K |
| Mean Coeff Thermal Expansion | 13.1×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 201 |
| Tensile Strength | 403 Mpa |
| Yield Strength | 103 Mpa |
| Elongation | 50% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
| Main Composition % | |||
| Ni | Mn | Si | |
| NiMn2 | Bal. | 1.5-2.5 | 0.3 |
| NiMn3 | Bal. | 2.3-3.3 | 0.3 |
| NiMn5 | Bal. | 4.6-5.4 | 0.5 |
| Code No. | Dia. mm | TS. N/mm2 | Elongation % |
| NiMn2 | ≤6.0 | ≥350 | ≥20 |
| NiMn3 | ≤6.0 | ≥350 | ≥20 |
| NiMn5 | ≤6.0 | ≥350 | ≥20 |
