Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nichrome pipes
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
NiCr Tubes |
Resistivity: |
1.09+/-5% μ Ω · M |
Surface: |
Bright |
Diamater: |
1.00mm Min |
Wall Thickness: |
0.05mm Min |
Name: |
Ni-CR Pipe / Tube |
Purity: |
77% Ni |
Density: |
8.40g/cm3 |
Material: |
NiCr Tubes |
Resistivity: |
1.09+/-5% μ Ω · M |
Surface: |
Bright |
Diamater: |
1.00mm Min |
Wall Thickness: |
0.05mm Min |
Name: |
Ni-CR Pipe / Tube |
Purity: |
77% Ni |
Density: |
8.40g/cm3 |

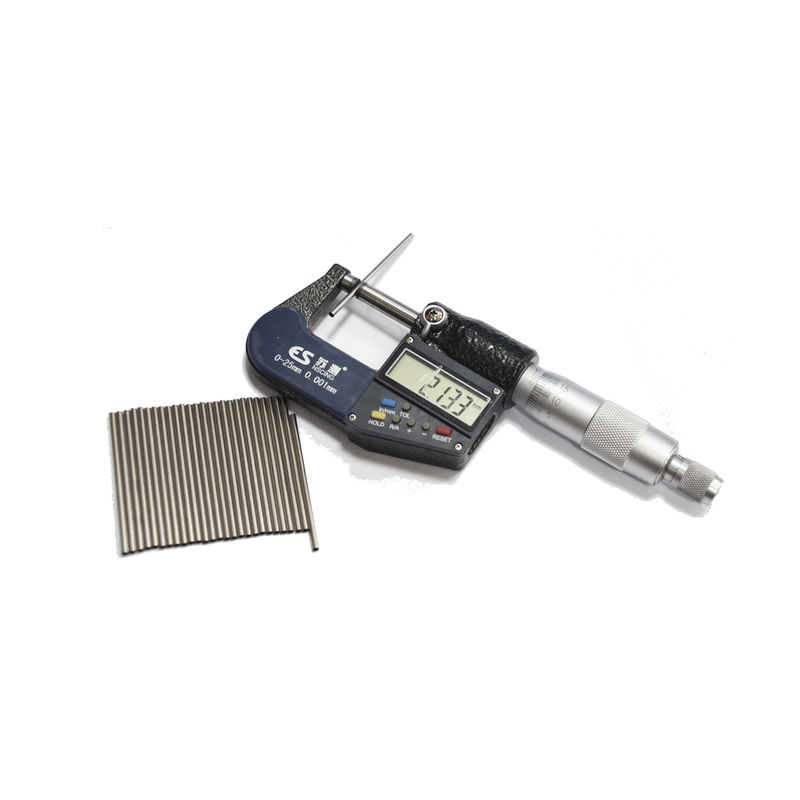

Nickel Chrome Alloy Nichrome Heating Resistance Seamless Tube and Pipe
Hot sale China Made Cold Drawn Nichrome Ni80Cr20 Tube / Pipe
Grade:Ni80Cr20(Ohmalloy109)
Chemical Composition:Cr 20~23Rest% Ni Fe<1.0
Max.Continuous service temp.Of element(°C) :1200degrees
Resistivity at 20ºC(μΩ·m):1.09 ohm mm2/m
Density(g/cm3):8.4
NiCr series:Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr16Ni60
We also produce other kind of nickel chromium alloys, such as NiCr 60/15, NiCr 70/30, NiCr 30/20.They are also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
Nikrothal 70, Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675, NCHW2
| Max Continuous Service: Resisivity 20º C: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1200º C 1.09 ohm mm2/m 8.4 g/cm3 60.3 KJ/m@ h@ º C 18 α × 10-6/º C 1400º C Min 20% Austenite nonmagnetic |
| Propertes/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition(%) |
Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. | |
| Max Working Temperature(ºC) |
1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC(μ Ω · m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) |
8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity (KJ/m· h· ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/ºC) |
18 | 17 | 17 | 19 | 19 | |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmag | |
