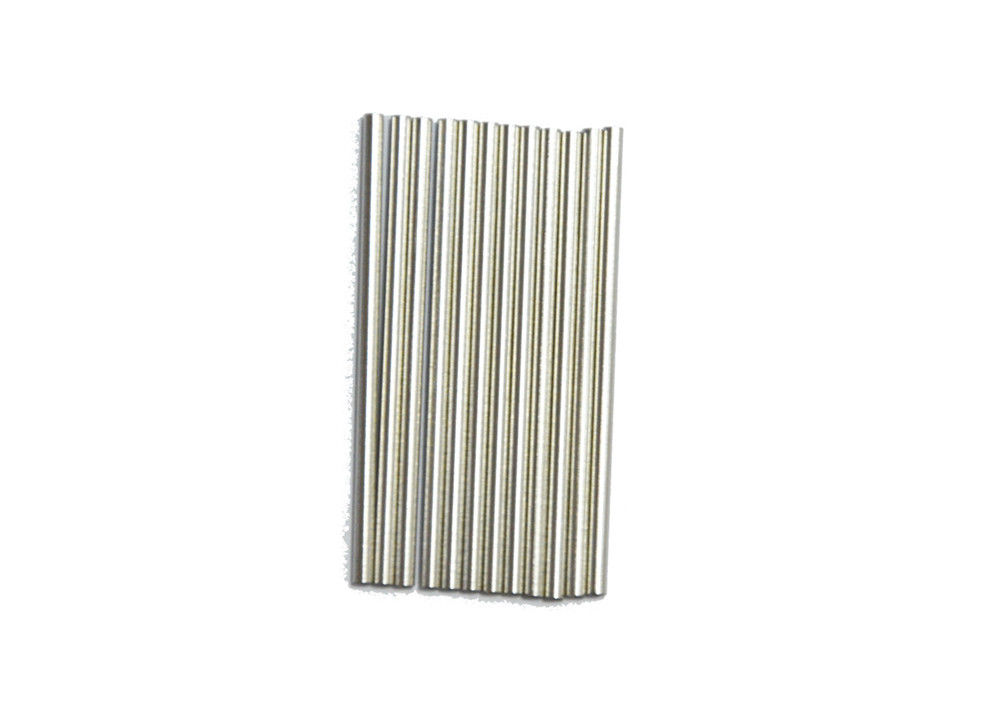

Nickel Chrome Cold Drawn Seamless Nichrome / Ni80cr20 / NiCr80/20 Tube / Pipe 2X0.3mm

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: Nichrome pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

nichrome wire

,

nichrome resistance wire

Material:
NiCr Tube
Resistivity:
1.09+/-5%μ Ω · M
Surface:
Bright
Diamater:
1.0mm Min
Wall Thickness:
0.05mm Min
Name:
NI-CR Pipe
Purity:
77% Ni
Density:
8.4 G/cm3
Material:
NiCr Tube
Resistivity:
1.09+/-5%μ Ω · M
Surface:
Bright
Diamater:
1.0mm Min
Wall Thickness:
0.05mm Min
Name:
NI-CR Pipe
Purity:
77% Ni
Density:
8.4 G/cm3
Description
Nickel Chrome Cold Drawn Seamless Nichrome / Ni80cr20 / NiCr80/20 Tube / Pipe 2X0.3mm

 Nickel chrome Cold Drawn Seamless Nichrome / Ni80cr20 / NiCr80/20 Tube / Pipe 2X0.3mm

Description

Model NO. NiCr8020 Density 8.4 g/cm3
Material Shape Tube Melting Point 1400 C
Range of Application Resistor, Heater OEM YES
Certification ISO9001, RoHS Stock Seyn
Brand HUONA Tensile Strength 810 MPa
Usage Resistance materials Electrical Resistivity 1.09
Elongation >20% Trademark TANKII
Hardness 180 HV Transport Package Spool, Carton,
Wooden Case
Max Working Temperature 1200 C Specification 0.8mm
HS Code 7506200000 Origin China



Chemical Composition and Propertes:
Propertes/Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
Main Chemical
Composition(%)
Ni Bal. Bal. 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤ 1.0 ≤ 1.0 Bal. Bal. Bal.
Max Working
Temperature(ºC)
1200 1250 1150 1100 1100
Resistivity
at 20ºC(μ Ω · m)
1.09 1.18 1.12 1.04 1.04
Density
(g/cm3)
8.4 8.1 8.2 7.9 7.9
Thermal Conductivity
(KJ/m· h· ºC)
60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal
Expansion(α × 10-6/ºC)
18 17 17 19 19
Melting Point(ºC) 1400 1380 1390 1390 1390
Elongation(%) > 20 > 20 > 20 > 20 > 20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagnetic



Chemical Composition Nickel 80%, Chrome 20%
Condition Bright/Acid white/Oxidied Color
Diameter 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Strip Width 450mm~1mm, thickness 0.002m~7mm
Diameter 1.5mm-8mm packing in coil, 8~60mm in rod
Grade Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe,
Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage Nichrome's metallurgical structure confers them a very
good plasticity when cold.
Characteristics Stable performance; Anti-oxidation; Corrosion resistance;
High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface
condition without spots.
Usage Resistance heating elements;Material in metallurgy;
Household
appliances;
Mechanical
manufacturing and other industries.

Nickel Chrome Cold Drawn Seamless Nichrome / Ni80cr20 / NiCr80/20 Tube / Pipe 2X0.3mm 0
