Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel Plated Copper Wire
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case / Carton
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Tin Plated Copper Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness（um）: |
0.3-2.0 |
Name: |
Tinned Copper Wire |
Material: |
Tin Plated Copper Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness（um）: |
0.3-2.0 |
Name: |
Tinned Copper Wire |

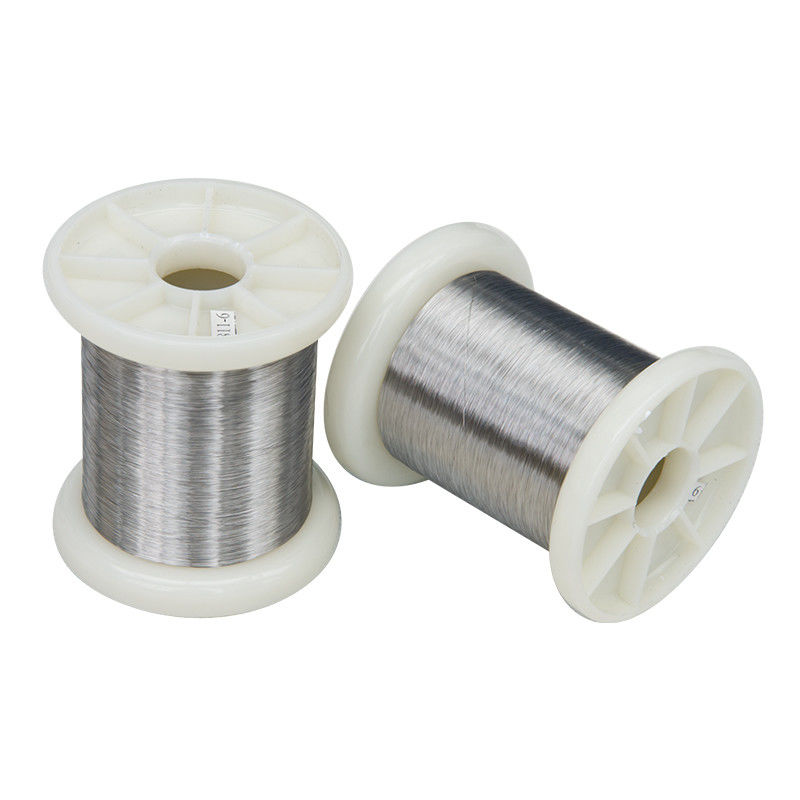

Tinned Copper Wire / Tin Plated Copper Wire for Electronicl Components
Tinned Copper Wire/ Tin Plated Copper Wire
Product standard: refer to GB / T4910-2009 or according to customer requirements
| Item | Diameter(mm) | |||
| 0.05≦d≦0.09 | 0.09<d≦0.25 | 0.25<d≦0.50 | 0.50<d | |
| Tolerance(mm) | ±0.002 | ±0.003 | ±0.004 | ±d% |
| Resistivity(Ωmm2/m) | ≦0.01851 | ≦0.01802 | ≦0.0177 | ≦0.0176 |
| Elongation(%) | ≧13 | ≧15 | ≧18 | ≧20 |
| Tensile Strength(MPa) | ≧196 | |||
| Coating Thickness(um) | 0.3-2.0um | |||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |||
| Packing | 8 inch,9 inch | |||
| Remark | According to customers’ requirements | |||
Tinned Copper Stranded Wire/Tin Plated Copper Stranded Wire
| Item | Diameter(mm) | ||
| 0.05≦d≦0.09 | 0.09<d≦0.25 | 0.25<d≦0.50 | |
| Tolerance(mm) | ±0.003 | ±0.004 | ±0.005 |
| Resistivity(Ωmm2/m) | ≦0.01851 | ≦0.01802 | ≦0.0177 |
| Elongation(%) | ≧6 | ≧12 | ≧15 |
| Tensile Strength(MPa) | ≧196 | ||
| Coating Thickness(um) | 0.3-2.0um | ||
| Strand | 7-200 | ||
| Direction of Twist | Z(left) or S(right) | ||
| Lay length(mm) | 2.0-100 | ||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | ||
| Packing | Type 300. Type 400 | ||
| Remark | According to customers’ requirements | ||
