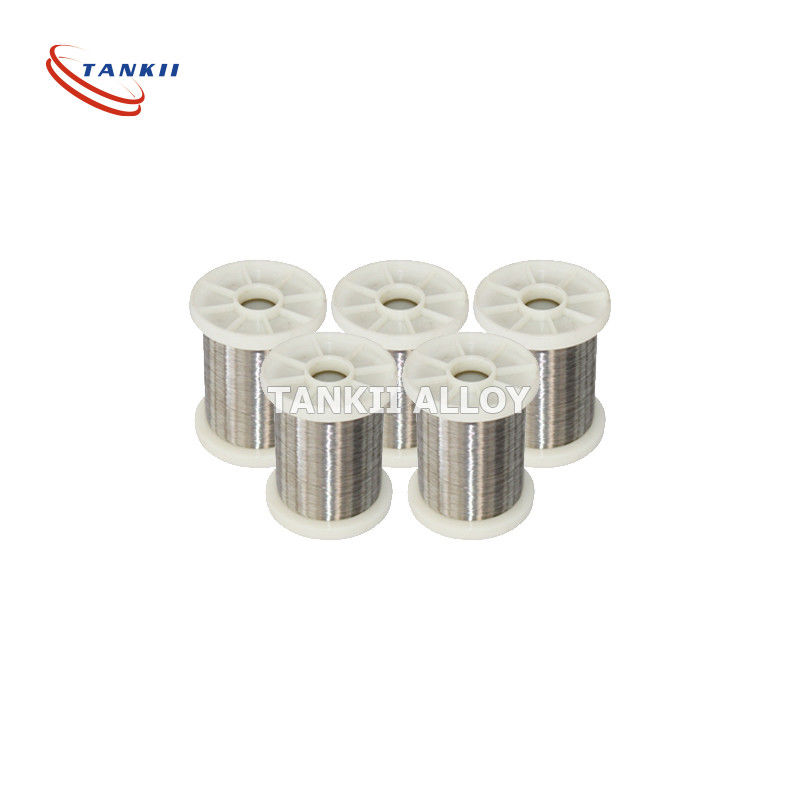

0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry

0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry

    • 0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry
    • 0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry
    • 0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry
    • 0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry
  • 0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry

    Product Details:

    Place of Origin: Shanghai, Tankii
    Brand Name: TANKII
    Certification: ISO9001
    Model Number: Ni80Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: TO negotiate
    Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film According to Custom's demands
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 2000+TON+YERA
    Contact Now
    Detailed Product Description
    Feature: High Working Temperature, Corrosion Resistance Shape: Wire
    Material: Nickel Based Alloy Insulation Material: None
    Surface: Smooth, Clean

    0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire for Heating Industry



    Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.

    Chemical Content(%)

    C P S Mn Si Cr Ni Al Fe Other
    Max
    0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

    Mechanical Properties of nichrome wire

    Max Continuous Service Temperature: 1200ºC
    Resisivity 20ºC: 1.09 ohm mm2/m
    Density: 8.4 g/cm3
    Thermal Conductivity: 60.3 KJ/m·h·ºC
    Coefficient of Thermal Expansion: 18 α×10-6/ºC
    Melting Point: 1400ºC
    Elongation: Min 20%
    Micrographic Structure: Austenite
    Magnetic Property: nonmagnetic

    Temperature Factors Of Electrical Resistivity

    20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
    1 1.006 1.012 1.018 1.025 1.026 1.018
    700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
    1.01 1.008 1.01 1.014 1.021 1.025 -

    Nichrome (NiCr, nickel-chrome, chrome-nickel, etc.) is any of various alloys of nickel, chromium, and often iron (and possibly other elements). The most common usage is as resistance wire, although they are also used in some dental restoration (fillings) and in a few other applications.



    Nichrome wire can be used as an alternative to platinum wire for flame testing by colouring the non-luminous part of a flame to detect cations such as sodium, potassium, copper, calcium, etc.

    Other areas of usage include motorcycle muffles, in certain areas in the microbiological lab apparatus, as the heating element of plastic extruders by the RepRap 3D printing community, in the solar panel deployment mechanism of spacecraft Lightsail-A, and as the heating coils of electrical cigarretes.

    The alloy price is controlled by the more expensive nickel content. Distributor pricing is typically indexed to market price for nickel.Nichrome wire is commonly used in ceramic as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used for its ability to withstand the high temperatures that occur when clay work is fired in a klin.



    Regular size of Nickel alloy wire :

    We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

    Bright and white wire--0.025mm~3mm

    Pickling wire:1.8mm~10mm

    Oxidized wire:0.6mm~10mm

    Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm



    Application

    Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
    Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
    Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.

    0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry0.35mm NiCr 80/20 Nicr Alloy Wire Resistance Wire For Heating Industry
