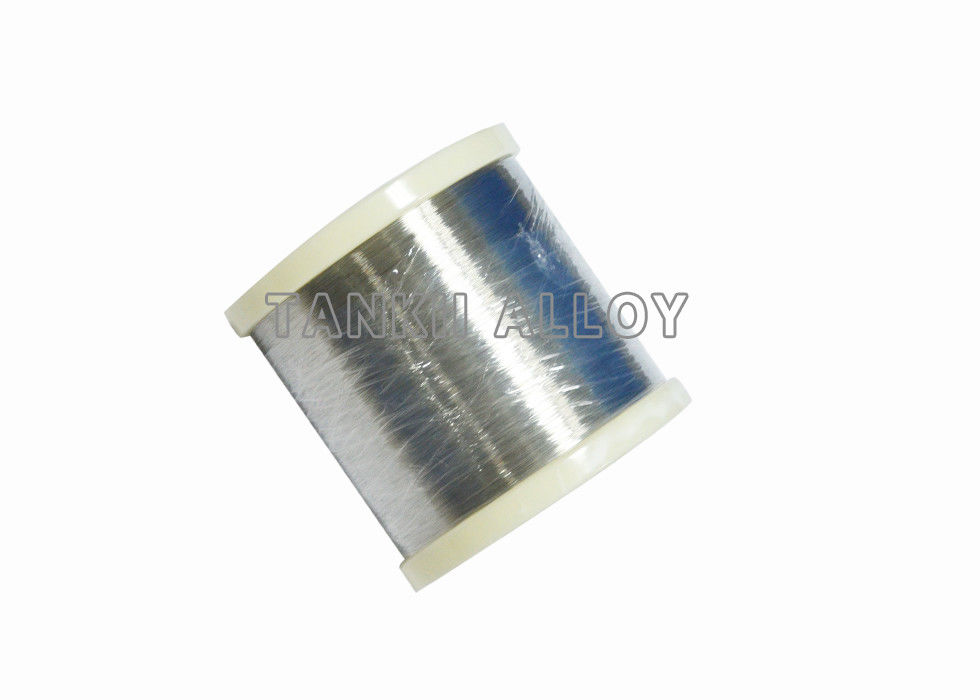

IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface

IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface

    • IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface
    • IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface
    • IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface
    • IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface
  • IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg per leg
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: NiCr -NiSi Surface: Bright
    Diameter: 7*0.2mm Wire Type: Stranded Wire
    Insulation: No Wire Class: IEC Class I
    Leading Time: 5~10 Days After Getting The Payment Application: Thermocouple,temperature Measurement
    Standard: ANSI, IEC584 Item: IEC 60584 Class 1 Thermocouple Grade Wire Type K Type N Type J Used For Thermocouple Construction


    IEC 60584 Class 1 Thermocouple Grade Wire Type K Type N Type J Used For Thermocouple Construction

    Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
    A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    Tankii Type K thermocouple is composed of a Nickel-10% chromium (+) wire versus a nickel-5% aluminum and silicon (-) wire. This type of thermocouple should only be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). They are most widely used at temperatures above 540'C (1000"F) due to superior oxidation resistance in comparison to Types E, T, or J. There are some conditions which should be avoided when using Type K thermocouples. Vacuum applications should not use Type K due to vaporization of chromium in the positive element. Tankii Type K thermocouples should not be used in Sulfurous environments since both elements will rapidly corrode and the negative element will eventually fail mechanically due to becoming brittle. Reducing atmospheres should also be avoided. Low oxygen levels can cause the Green-Rot phenomenon in which the chromium in the elements starts to oxidize causing large negative drifts in calibration.



    IEC 60584 Class 1 Thermocouple Grade Wire Type K Type N Type J Used For Thermocouple Construction

    Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.


    Tankii products conform to the standards of IEC584 -1and IEC-2.


    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.

    Application Industry of Tankii thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation

    Used for thermocouples:
    1. Thermocouple assembly
    2. Bayonet Mount Thermocouples
    3.Thermocouples With Plug
    4. Thermocouple With Connection Head
    5. Armored Thermocouple
    6.Handheld Thermocouple
    7. High-Temperature Thermocouple
    8.Surface Mount Thermocouple
    9. Transition Joint Thermocouple
    10. Bare Lead Thermocouple
    11. Overbraided Thermocouple
    12. Multi-Point Thermocouple
    13. Autoclave Thermocouple
    14. Magnet Mount Thermocouple
    15. Replacement Thermocouple
    16. Spring Loaded Thermocouple
    17. Bearing Thermocouple Sensor
    18.Tube Skin/Weld Pad Thermocouple
    19. Penetration Thermocouple
    20.Screw In Thermocouple


    IEC 60584 Class 1 Thermocouple Grade Wire Type K Type N Type J Used For Thermocouple Construction

    Tankii Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B 600~1700


    PtRh13-Pt

    R 0~1600


    PtRh10-Pt

    S 0~1600


    NiCr-NiSi

    K -200~1300


    NiCr-CuNi (constantan)

    E -200~900


    Fe-CuNi (constantan)

    J -40~750


    Cu-CuNi (constantan)

    T -200~350


    NiCrSi-NiSi

    N -200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t


    DIN250 spool: 17~18kg
     IEC 60584 Class 1 Thermocouple Bare Wire Type K N J Stranded Bright Surface


     Delivery and Packing of thermocouple wire:

    1. Packaging Details : DIN spools with plastic film wrapped and carton package.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty


    IEC 60584 Class 1 Thermocouple Grade Wire Type K Type N Type J Used For Thermocouple Construction

    Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple flat wire, thermocouple strip.
