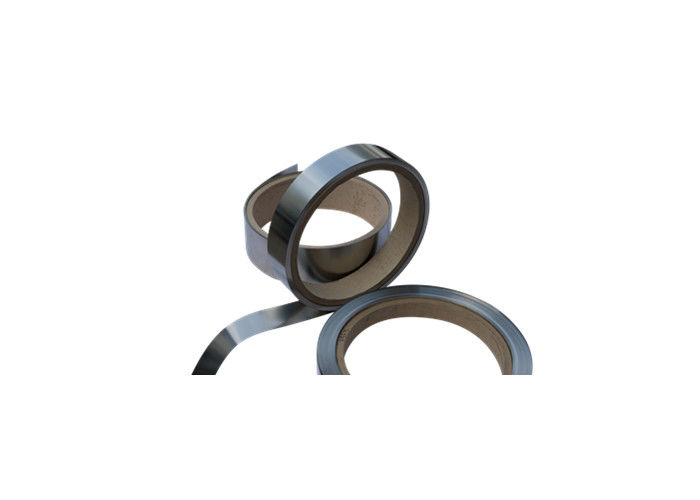

Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface

Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface

    • Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface
    • Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface
    • Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface
    • Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface
  • Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2008
    Model Number: Ni80Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: Negotiated
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Colour: Silver, Bright Surface: Smooth, Annealed
    Composition: Nickel 80% Chromium 20% Min Ni: 78.5%
    Sample: Available Size: According To Clients Requirements

    NiCr Resistance Strip 0.2mm*25mm Nickel 80% Heating Element Strip



    We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
    In the form of wire, ribbon/strip:
    Round Wire: Dia 0.04mm-8.0mm
    Ribbon/strip: Thickness: 0.04mm-0.75mm
    Width: 0.08mm-6.0mm



    Improvement of Resistance heating wire and resistance heating strip in iron-chromium-aluminium (FeCrAl) alloys and nickel-chromium (NiCr) alloys for the manufacturing of electric heating elements. Using FeCrAl alloys instead of NiCr alloys result in both weight-saving and longer element life.



    Specification:

    Alloy Type Diameter Resistivity Tensile Elongation
    (%)
    Bending Max.
    Continuous
    Working
    Life
    (mm) (μΩm)(20°C) Strength Times Service (hours)
    (N/mm²)   Temperature
    (°C)
    Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
    0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
    >3.0 1.14±0.05 850-950 >20 >9 1200 >20000
    Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
    ≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
    Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
    ≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
    Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
    ≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000
    1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
    0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
    0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
    0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
    0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
    1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
    0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
    0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000



    FeCrAl resistance heating alloys

    Resistance heating alloys based on iron-chromium-aluminium for maximum element temperature of 1425°C (2600 °F). Fecral resistance heating alloys are characterized by high resistivity and capabiltity to withstand high surface load.



    NiCr resistance heating alloys

    Nickel-chromium-based resistance heating alloys suitable for element temperatures up to 1250°C (2282°F). Nichrome resistance heating alloys are characterized by very good mechanical properties in the hot state as well as good oxdiation and corrosion properties.



    Product forms and size ranges

    Resistance heating alloys are available in the following product forms and sizes:



    Round wire: 0.10-12 mm (0.00394-0.472 inch)

    Ribbon (flat wire): thickness: 0.023-0.8 mm (0.0009-0.031 inch)

    Width: 0.038-4 mm (0.0015-0.157 inch)

    Width/thickess ratio max 40, depending on alloy and tolerance

    Strip: thickness 0.10-5 mm (0.00394-0.1968 inch), width 5-200 mm (0.1968-7.874 inch)





    Heating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth SurfaceHeating Element Nicr Alloy NiCr Resistance Strip 0.2mm*25mm Smooth Surface
