Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2015
Model Number: Ni70Cr30
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Grade: |
Nickel Alloy |
Other Alloy: |
Ni80Cr20, Ni60Cr23, Ni60Cr15, Ni35Cr20, Ni30Cr20, Etc |
Resistance: |
Stable |
Standard: |
ASTM B162, GB/T1234 2012 |
Feature: |
High Resistance, High Nickel |
Colour: |
Bright, Silver White |
Grade: |
Nickel Alloy |
Other Alloy: |
Ni80Cr20, Ni60Cr23, Ni60Cr15, Ni35Cr20, Ni30Cr20, Etc |
Resistance: |
Stable |
Standard: |
ASTM B162, GB/T1234 2012 |
Feature: |
High Resistance, High Nickel |
Colour: |
Bright, Silver White |

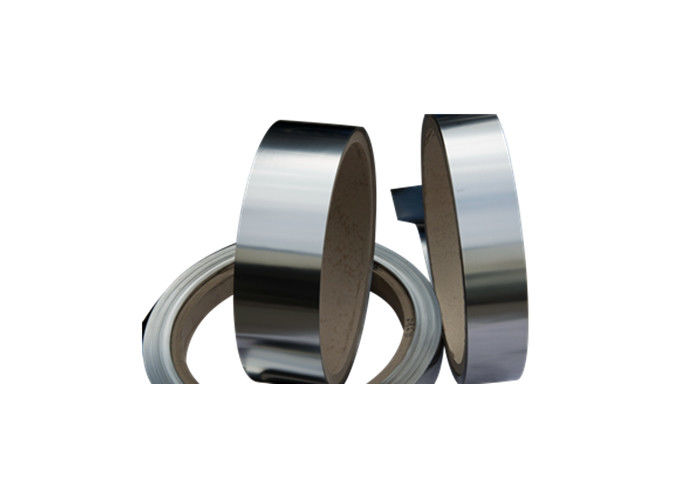

Cronix 70 NiCr Resistance Heating Nickel Based Alloy Foil/ Strip for Industrial Sealer
1.advantage
1)the specifications can be made according to consumer's request.
2)we also can pouch the Nickel into pieces according to different request,the sizec can be customized.
2.Features
High strength heat-resistant properties and corrosion resistance
3. Process:
Wire:Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse
Product features of nichrome wire:
1)Excellent anti-oxidation and mechanical strength at high temperature;
2)High resistivity and low temperature coefficient of resistance;
3)Excellent reelability and forming performance;
4)Excellent welding performace
4. Product size:
wire dia.0.05-12mm; flat strip thickness 0.03-5mm,flat strip width0.2-500mm.
With features of high resistance, cheap price, high eorking temperature, good corrosion resistance especially under high temperature, good performance of anti-carburizing and far-infrared devices.
Packing: Spool, coil, carton, wooden case,container with wrapping material according to per client´s requirements.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.05 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 28.0~31.0 | Bal. | Max 0.50 | Max 1.0 | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 430 | 820 | 30 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(ohm mm2/m) | 1.18 |
| Conductivity coefficient at 20ºC (WmK) | 14 |
Coefficient of thermal expansion
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 17 |
Specific heat capacity
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1380 |
| Max continuous operating temperature in air (ºC) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.007 | 1.016 | 1.028 | 1.038 | 1.044 | 1.036 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.03 | 1.028 | 1.029 | 1.033 | 1.037 | 1.043 | - |
