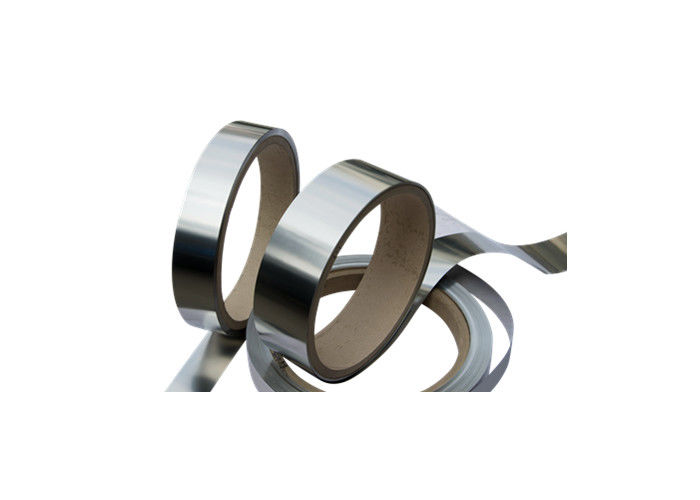

Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements

Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements

    • Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements
    • Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements
    • Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements
    • Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements
  • Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2015
    Model Number: Ni80Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: To negotiate
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Composition: Nickel 80% Chromium 20% Grade: Nickel Based Alloy
    Min Ni: 78.5% Alloy Or Not: YES
    Shape: Flat Strip/ Strip Ultimate Strength: 580-750

    Ni80Cr20 Electric Heating 0.2mm*40mm Flat Strip/ Strip/ Foil for Heating Elements



    General Description:



    The mechanical properties of nickel are close to that of carbon steel, and the corrosion resistance of the metal is only inferior to that of silver in the metal materials, and the surface of the nickel wire will produce a layer of protective film. Used for electric light source materials, coating with high surface quality, good processing performance, for production work such as anode, spacer, electrode holder, etc., in the lighting as a guide wire, also in the chlor alkali industry plays a very important role. Electrical grade material for use in different conditions, and a variety of components of the alloy. And the electrode materials are required to have low electrical resistivity lest cause the electrode to overheat, high temperature strength to reduce.



    Shape Data:



    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000,1219,1500mm Whole Coil or piece of it Cold Annealed,Surface 2B,2E
    Plate Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B,2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle,Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy





    Application of Nichrome Alloy:



    Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.



    Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.



    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.



    Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.





    Ni80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating ElementsNi80Cr20 Flat Electric Heat Strips 0.2mm*40mm For Heating Elements
