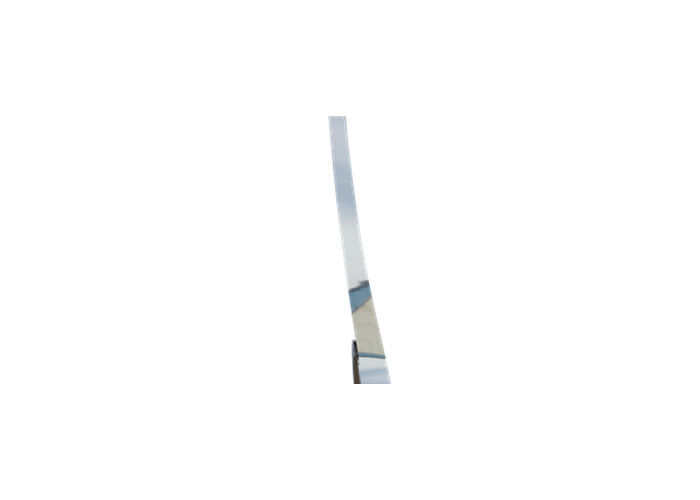

Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity

Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity

    • Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity
    • Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity
    • Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity
    • Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity
  • Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2015
    Model Number: Ni35Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: To negotiate
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Chemical Composition: Nickel 35% Chromium 20% Sample: Available
    Use: Precision Resistor Advantages: High Temperature Resistance, Corrosion Resistance
    Resistivity: 1.11 Ultimate Strength: 580-750

    Nichrome High Temperature Resistance Strip/ Sheet/ Foil NiCr Alloy Strip



    1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
    Al and other elements, and thus achieved a precision resistance material with improved
    resistance temperature coefficient and heat electromotive force against copper.
    With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
    than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

    2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,

    and the resistance temperature curve turns out to be almost a straight line within a wide
    temperature range.

    Therefore, the temperature coefficient is set to be the average temperature coefficient between
    23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
    be adopted for the temperature coefficient.

    3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and

    exhibits excellent stability over a period of many years.

    4) If this is to be used as a precision resistance material, low temperature heat treatment is
    required to eliminate processing distortions just as in the case of Manganin wire CMW.



    Application of all grades:

    Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
    Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
    Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.







    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000,1219,1500mm Whole Coil or piece of it Cold Annealed,Surface 2B,2E
    Plate Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B,2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle,Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement Use for PHE
    Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement Use for PHE
    Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Forged piece roundness and square alloy Base on your requirement Steel, Alloy
    Flangs All kinds of Flangs Base on your requirement Steel, Alloy
    Welding Material Coil wire Φ0.90mm/1.2mm/1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
    Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm
    Welding rodΦ2.4mm/3.2mm/4.0mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy





    Nichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 ResistivityNichrome High Temperature Resistance Wire / Nickel Alloy Strip 1.11 Resistivity
