Product Details
Place of Origin: Shanghai, China
Brand Name: Tankii
Certification: ISO9001:2015
Model Number: NiCr80/20
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: Negotiated price
Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 200+TON+MONTH
Alloy Material: |
Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Etc |
Size Range: |
1.0mm-1.5mm |
Surface: |
Bright Or Oxidised |
Treatment: |
Annealed |
Elongation: |
Min20% |
Resistance: |
Stable |
Alloy Material: |
Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Etc |
Size Range: |
1.0mm-1.5mm |
Surface: |
Bright Or Oxidised |
Treatment: |
Annealed |
Elongation: |
Min20% |
Resistance: |
Stable |

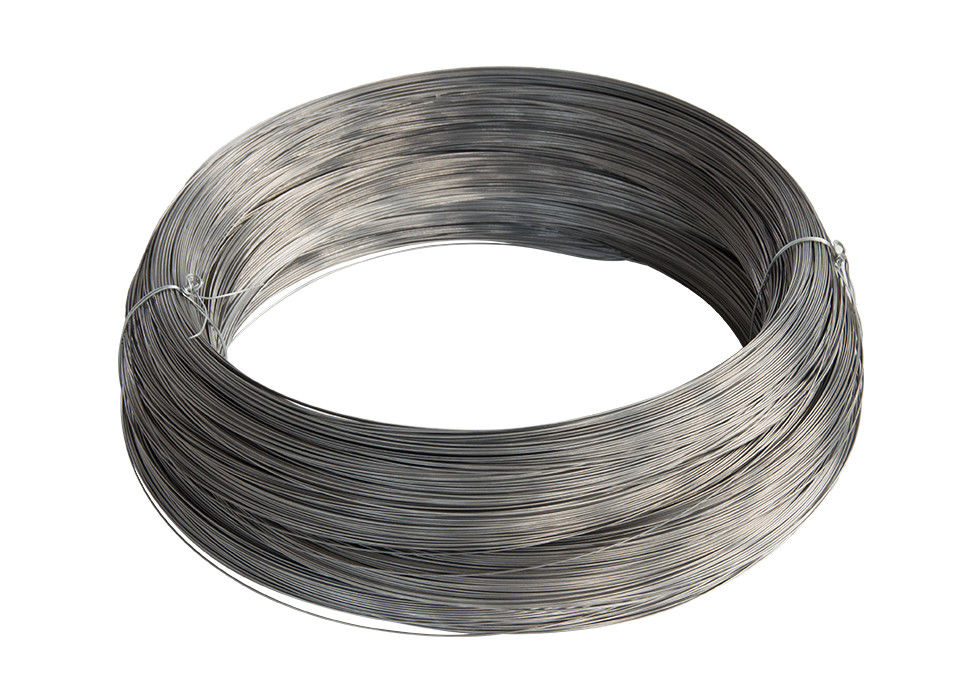

Nichrome Heating Resistance Alloy Wire Coil 1.0mm-1.5mm Bright Alloy Wire
Nichrome 80 is getting back its worth in the heating alloy market as it retains heat longer than Kanthal
Forms Produced
| Nichrome 80 Wire | Nichrome 80 Wire mesh | Nichrome 80 Heating Coil | Nichrome 80 Rod | Nichrome 80 Strip/ Foil |
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm
2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)
3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm
4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm
| Nichrome Wire Type |
Max. Operating Temperature |
Resistivity @ 20°C (68°F) Ω mm2/m (Ω/cmf) |
Applications | Oxidation Resistance |
| 20 | 1050°C (1920°F) | 0.95 (572) | Terminals attached to nickel-chromium heating elements, element fasteners, refractory anchor bolts | Moderate |
| 30 | 1050°C (1920°F) | 1.03 (620) | Solid hot plates, open coil heaters in HVAC systems, heaters, de-icing elements | High |
| 40 | 1100°C (2010°F) | 1.04 (626) | Heaters, de-icing elements, heating cables and rope heaters, resistors | |
| 60 | 1150°C (2100°F) | 1.11 (668) | Household heating elements, moderate heat, high humidity environments | |
| 70 | 1250°C (2280°F) | 1.18 (709) | Industrial furnace electrical heating elements | |
| 80 | 1180°C (2150°F) | 1.09 (656) | Industrial furnaces, home appliance heating elements |
