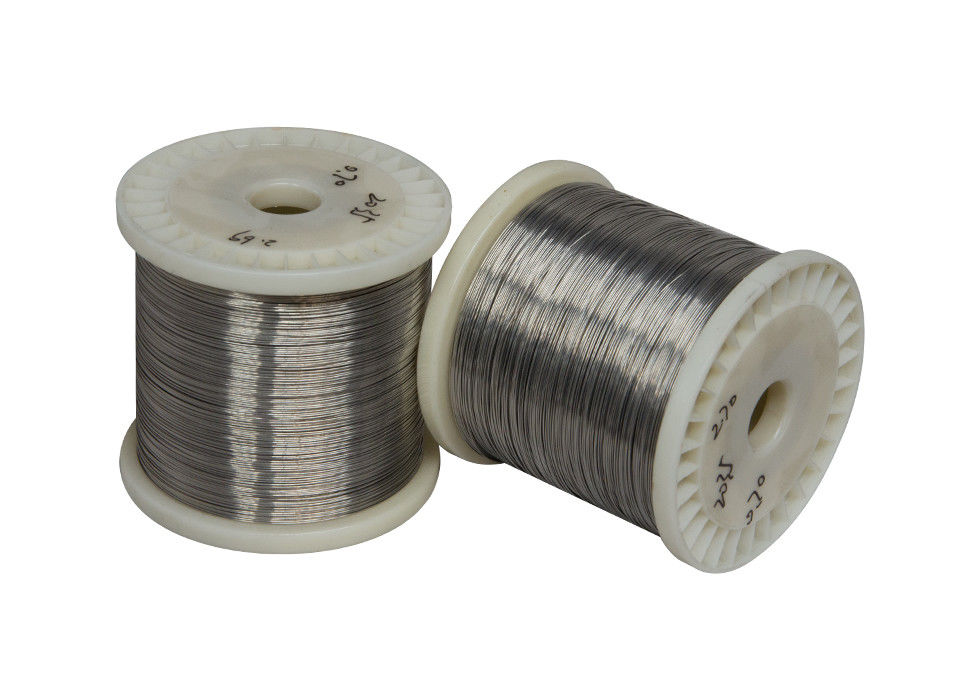

0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor

0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor

    • 0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor
    • 0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor
    • 0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor
    • 0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor
  • 0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: Ni35Cr20

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Surface: Bright Density: 7.9
    Melting Point: 1100 Sample: Available
    Condition: Annealed Resistivity: 1.11

    MWS-610 Manufacturer 0.5-0.9mm Nichrome Electric Resistance Wire





    General Description:



    wire dia.0.05-12mm; flat strip thickness 0.03-5mm,flat strip width0.2-500mm.

    With features of high resistance, cheap price, high eorking temperature, good corrosion resistance especially under high temperature, good performance of anti-carburizing and far-infrared devices.



    Packing: Spool, coil, carton, wooden case,container with wrapping material according to per client´s requirements.




    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.



    How to make an order?
    · Sample approval
    · Client make 30% deposit or open LC after confirming the PI
    · Client visit our workshop to check quality or arrange Third-party to inspect the cargos.
    · After passed Inspection, then we arrange shipment with shipping agent.
    · Supplier arrange necessary documents and send copy of these documents
    · Client remit balance payment
    · Supplier send original documents or telex release the goods
    · Quality warranty for 2year after shipment

    After sales service
    · After receive the goods, We hope to get your feedback at first time.
    · We could provide installation guide, if you need, we could give you global service.
    · Our Sales are 24-hours online for your request.

    Professional sales
    · We value every inquiry sent to us, ensure quick competitive offer.
    · We cooperate with customer to bid tenders. Provide all necessory document.
    · We are a sales team, with all techinical support from engineer team.

    Welcome to contact with us!







    Specification:

    Alloy Type Diameter Resistivity Tensile Elongation
    (%)
    Bending Max.
    Continuous
    Working
    Life
    (mm) (μΩm)(20°C) Strength Times Service (hours)
    (N/mm²)   Temperature
    (°C)
    Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
    0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
    >3.0 1.14±0.05 850-950 >20 >9 1200 >20000
    Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
    ≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
    Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
    ≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
    Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
    ≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000
    1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
    0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
    0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
    0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
    0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
    1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
    0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
    0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5

    1400

    >8000





    0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor0.5-0.9mm Nichrome Wire MWS-610 / Electric Resistance Wire For Resistor
