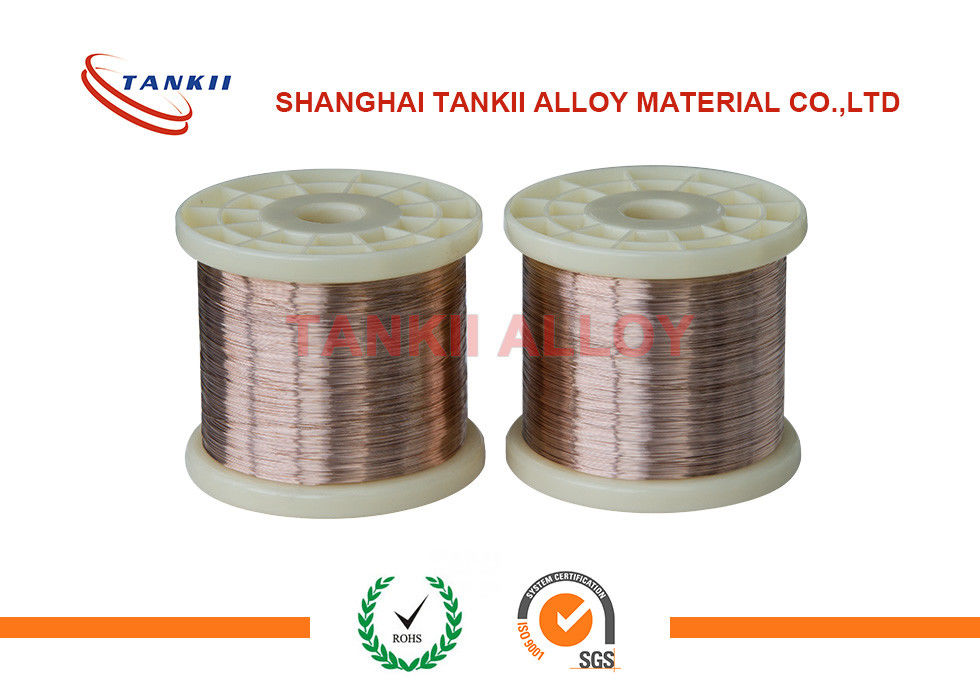

Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils

Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils

    • Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils
    • Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils
    • Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils
    • Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils
  • Cuni 10 Copper Nickel Alloy Wire Heating Resistant Electric Wire For Winding Coils

    Product Details:

    Place of Origin: Chian
    Brand Name: Tankii
    Certification: ISO RoHS AISI ASTM GB
    Model Number: 0cr13al4,alloy 750 stablohm 750,0cr23al5,0cr25al5,, 0cr15al5, 0cr20al5,0cr21al6

    Payment & Shipping Terms:

    Minimum Order Quantity: 20Kg
    Price: USD 20/Kg
    Packaging Details: Wooden Pallet, Wooden Case, Spool
    Delivery Time: 10-15 woking days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200Tons/Month
    Contact Now
    Detailed Product Description
    Packing: Case Craft: Cold Rolled
    Characteristics: High Resistivity, Good Oxidation Resistance Sample: Free
    Shape: Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil Surface: Bright
    The Highest Use Temperature: 250c Density: 8.9
    Resisivity: 0.15

    Cuni10 heating resistant electric wire heat resistance shield good electrical for winding coils

    Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi20, CuNi23, CuNi25, CuNi30, CuNi34, CuNi44.
    Wire/Rod/Bar diameter: 0.02mm-30mm
    Strip: Thickness0.01~6.0width: 610Max
    CuNi10, also known as Cuprothal 15, is a copper-nickel alloy (CuNi alloy) with medium-low resistivity for low temperature resistances. The alloy is suitable for use at temperatures up to 400°C (750°F).
    CuNi10 is typically used for heating cables, fuses, resistors and various types of controllers.

    Material: CuNi10(C70600) CuNi30(C71500) in from of sheet/plate/strip

    Copper based low resistance heating alloys

    The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

    Round wire: diameter 0.020mm-10.0mm

    Flat wire: thickness 0.025mm-4.0mm, width 0.040mm-4.0mm

    Cuni10 heating resistant electric wire heat resistance shield good electrical and performance wound flat wires for winding coils


    CuNi10Fe1/C70600 Strip/sheet
    Copper Nickels (Copper-Nickel), Copper-Nickel, (90-10). Excellent corrosion resistance, especially in marine environments. Moderately high strength, good creep resistance at elevated temperatures. Properties generally increase with nickel content. Relatively high in cost compared with copper-aluminum and other alloys with similar mechanical propert

    Characteristic Resistivity ( 200C μ Ω . m) Max. working Temperature ( 0C) Tensile Strength (Mpa) Melting point (0C) Density ( g/cm3) TCR x10-6/ 0C (20~600 0C) EMF vs Cu (μ V/ 0C) (0~100 0C)
    Alloy Nomenclature
    NC035(CuNi30) 0.35± 5% 300 350 1150 8.9 < 16 -34
    Mechanical Properties Metric Comments
    Tensile Strength, Ultimate 372 - 517 MPa
    Tensile Strength, Yield 88.0 - 483 MPa Depending on temper
    Elongation at Break 45.0 % in 381 mm.
    Modulus of Elasticity 150 GPa
    Poissons Ratio 0.320 Calculated
    Charpy Impact 107 J
    Machinability 20 % UNS C36000 (free-cutting brass) = 100%
    Shear Modulus 57.0 GPa


    CuNi10 Resistance Wire for Resistor
    CuNi10 Resistance Wire for Resistor
    CuNi10 Resistance Wire for Resistor
