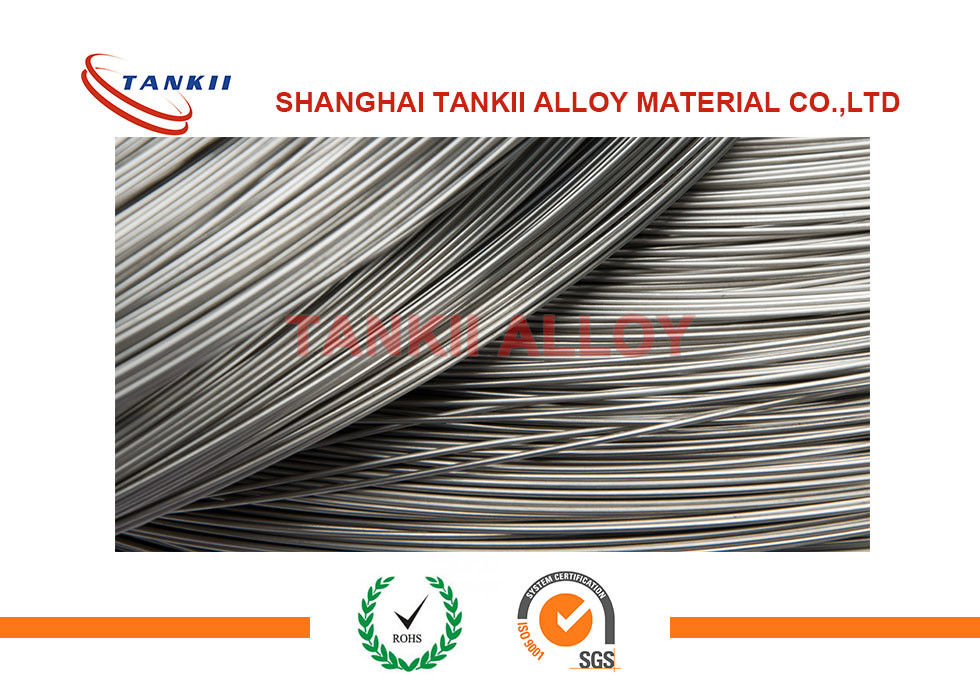

1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5

1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5

    • 1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5
    • 1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5
    • 1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5
    • 1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5
  • 1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5

    Product Details:

    Place of Origin: China Mainland
    Brand Name: TANKII
    Certification: ISO9001
    Model Number: 0Cr21Al6 / 0Cr21Al4 / 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: usd10.1/kg
    Packaging Details: In Coil
    Delivery Time: 5~20 days after getting the payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 tons/year
    Contact Now
    Detailed Product Description
    Dia: 0.1~8mm Package: Bobbin, Spools, Wooden Box
    Leading Time: 7~20 Dyas After Getting The Payment Item: FeCrAl Wire 0Cr21Al6 0Cr21Al4 0Cr25Al5 Bare Wire 1.0mm With Bright Surface Used For Heating Furnace

    FeCrAl Wire 0Cr21Al6 0Cr21Al4 0Cr25Al5 Bare Wire 1.0mm With Bright Surface Used For Heating Furnace




    1. Description
    FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
    FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
    Shanghai TANKII ALLOY MATERIAL Co., Ltd.
    FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
    We also produce below grades:
    Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
    Kanthal A1, Kanthal, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF Kanthal AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, Kanthal APM
    Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


    2.Specification
    1).Locomotive resistance strip:
    Thickness:0.6mm-1.5mm
    Width:60mm-90mm

    2).Electric ceramic cooktop resistance strip:
    Thickness:0.04mm-1.0mm
    Width:5mm-12mm
    Thickness&Width:(0.04mm-1.0mm)×12mm(above)

    3).Low  resistance ribbon:
    Thickness&Width:(0.2mm-1.5mm)*5mm

    4).Industrial furnace ribbon:
    Thickness:1.5mm-3.0mm
    Width:10mm-30mm

    5).Wire: Diameter:0.1mm-8mm




    3. Details of tankii  products

    Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

    Properties Grade

    1Cr13Al4

    0Cr25Al5

    0Cr21Al6

    0Cr23Al5

    0Cr21Al4

    0Cr21Al6Nb

    0Cr27Al7Mo2

    Main Chemical Composition
    (%)


    Cr

    12.0-15.0

    23.0-26.0

    19.0-22.0

    22.5-24.5

    18.0-21.0

    21.0-23.0

    26.5-27.8

    Al

    4.0-6.0

    4.5-6.5

    5.0-7.0

    4.2-5.0

    3.0-4.2

    5.0-7.0

    6.0-7.0

    Re

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    Fe

    Bal.

    Bal.

    Bal.

    Bal.

    Bal.

    Bal.

    Bal.













    Nb0.5

    Mo1.8-2.2

    Max Continuous Service Temperature(oC)

    950

    1250

    1250

    1250

    1100

    1350

    1400

    Resisivity 20oC (Ωmm2/m)

    1.25
    ±0.08


    1.42
    ±0.06


    1.42
    ±0.07


    1.35
    ±0.07


    1.23
    ±0.07


    1.45
    ±0.07


    1.53
    ±0.07


    Density(g/cm3)

    7.4

    7.1

    7.16

    7.25

    7.35

    7.1

    7.1

    Thermal Conductivity

    52.7

    46.1

    63.2

    60.2

    46.9

    46.1

    45.2

    (KJ/m@h@oC)

    Coefficient of Thermal Expansion(α×10-6/oC)

    15.4

    16

    14.7

    15

    13.5

    16

    16

    Approximate Melting Point( oC)

    1450

    1500

    1500

    1500

    1500

    1510

    1520

    Tensile Strength(N/mm2)

    580-680

    630-780

    630-780

    630-780

    600-700

    650-800

    680-830

    Elongation(%)

    >16

    >12

    >12

    >12

    >12

    >12

    >10

    Section Variation

    65-75

    60-75

    65-75

    65-75

    65-75

    65-75

    65-75

    Shrink Rate (%)

    Repeatedly Bend Frequency(F/R)

    >5

    >5

    >5

    >5

    >5

    >5

    >5

    Hardness (H.B.)

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    Continuous Service Time

    no

    ≥80/1300

    ≥80/1300

    ≥80/1300

    ≥80/1250

    ≥50/1350

    ≥50/1350

    Micrographic Structure

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Magnetic Property

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic


    Typical application areas of FeCrAl wires

    • Pre-heating of aluminium

    • Homogenising of aluminium

    • Heat treatment in the metallurgical industry

    • Drying of ore concentrates

    • Drying of materials in the wood processing industry

    • Roasting and drying in the food industry

    • Baking in large bakery ovens

    • Drying of chemicals

    • Drying and stoving of paints (stoving furnaces)

    1.0mm Electric Resistance Wire Bright Surface 0Cr21Al6 0Cr21Al4 0Cr25Al5
    Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
