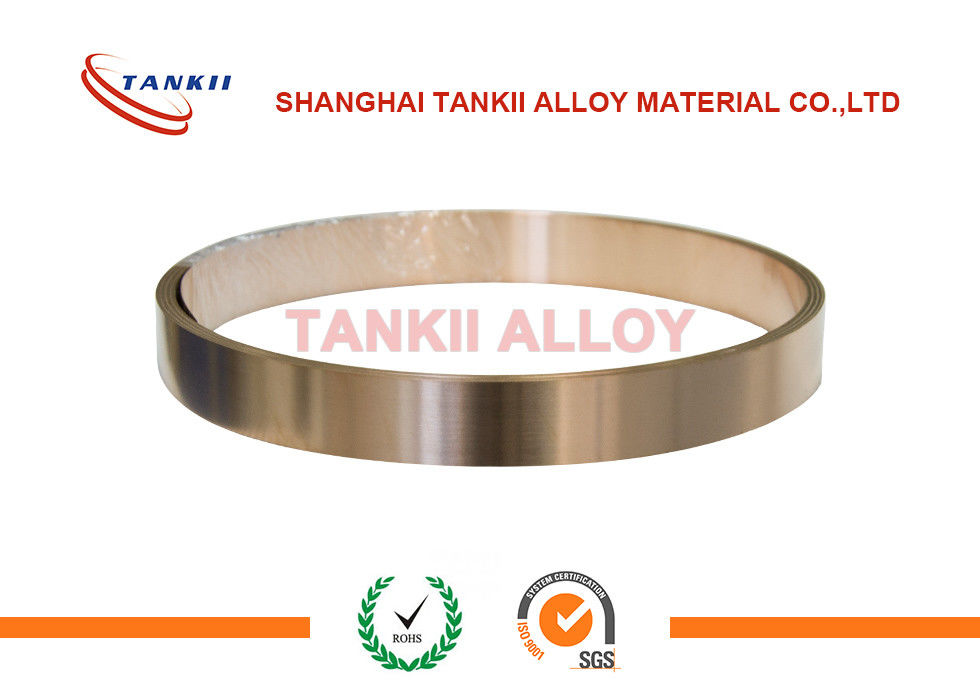

Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color

Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color

    • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color
    • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color
    • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color
    • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color
    • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color
  • Cube2 C17200 Beryllium Copper Foil Thickness 0.05 - 2.5mm In Bronze Color

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: TANKII
    Certification: SGS ISO
    Model Number: C17200

    Payment & Shipping Terms:

    Minimum Order Quantity: 200KG
    Price: negotiable
    Packaging Details: Wooden Case
    Delivery Time: 7-12days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300 Tons per month
    Contact Now
    Detailed Product Description
    Color: Bronze Material: Cu Be Alloy
    Surface: Bright Thickness: 0.05-2.5mm
    Width: 300mm Shape: Strip /Tape / Foil

    C17200 C1720 Cube2 Beryllium Bronze Strip Copper Strip/strap In Coil 0.05-2.5mm

    Product Description
    GB
    ISO
    ASTM
    JIS
    QBe2
    CuBe2
    C17200
    C1720
    QBe1.9
    CuBe2




    GB
    Chemical Composition(%)
    Al
    Fe
    Pb
    Be
    Ni
    Si
    Cu
    QBe2
    0.15
    0.15
    0.005
    1.8-2.1
    0.2-0.5
    0.15



    Balance
    QBe1.9
    0.15
    0.15
    0.005
    1.85-2.1
    0.2-0.4
    0.15
    Balance




    ASTM
    Chemical Composition(%)
    Fe
    Ni
    Co
    Be
    Cu
    C17200
    Ni+Co+Fe0.6
    no less than 0.2
    1.8-2.0
    no less than 99.50




    Grade
    (GB)
    Tensile Strength
    /Mpa
    Proportion
    (g/cm3)

    Yield Strength(0.2%)Mpa
    Softening Point(℃)
    1105
    8.3
    1035
    930


    QBe2

    Elongation(%)
    Elasticity
    Modulus/Gpa

    Hardness /HRC
    Heat
    Conductivity
    (W/m.k20℃)
    Electrical
    Conductivity
    (IACS%)
    1
    128
    38-44
    105
    18



    Mechanical property:(before heat treatment)

    status Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    ( IACS%)
    Elongation
    (%)
    0 410-540 90-160 ≥17 35-70
    1/4H 510-620 145-220 ≥16 10-35
    1/2H 590-695 180-240 ≥15 5-25
    H 685-835 210-270 ≥15 2-8


    Mechanical property:(after heat treatment)

    status Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    (IACS%)
    Elongation
    (%)
    0T 1100-1380 325-400 ≥22 3-11
    1/4HT 1180-1400 350-430 ≥22 2-8
    1/2HT 1240-1440 360-440 ≥22 2-7
    HT 1270-1480 380-450 ≥22 1-5



    Special Processing

    State Tensile strength
    (N/mm2)
    Hardness
    (HV)
    Conductivity
    (IACS%)
    Elongation
    (%)
    OM 685-885 220-270 ≥17 ≥18
    1/4HM 735-930 235-285 ≥17 ≥10
    1/2HM 815-1010 260-310 ≥17 ≥8
    HM 910-1110 295-345 ≥17 ≥6
    XHM 1100-1290 340-390 ≥17 ≥2
    XHMS 1210-1400 360-410 ≥17 ≥2





    Beryllium copper is based on beryllium as the main alloy of copper alloy, also known as beryllium bronze. It is the best performance of copper alloy in the high-performance elastic material, a high strength, flexibility, hardness, fatigue strength, elastic lag small, corrosion resistance, wear resistance, cold, high conductivity, non-magnetic, impact does not produce sparks A series of excellent physical, chemical and mechanical properties. Beryllium copper tape used in micro-motor brush, cell phone, battery.
