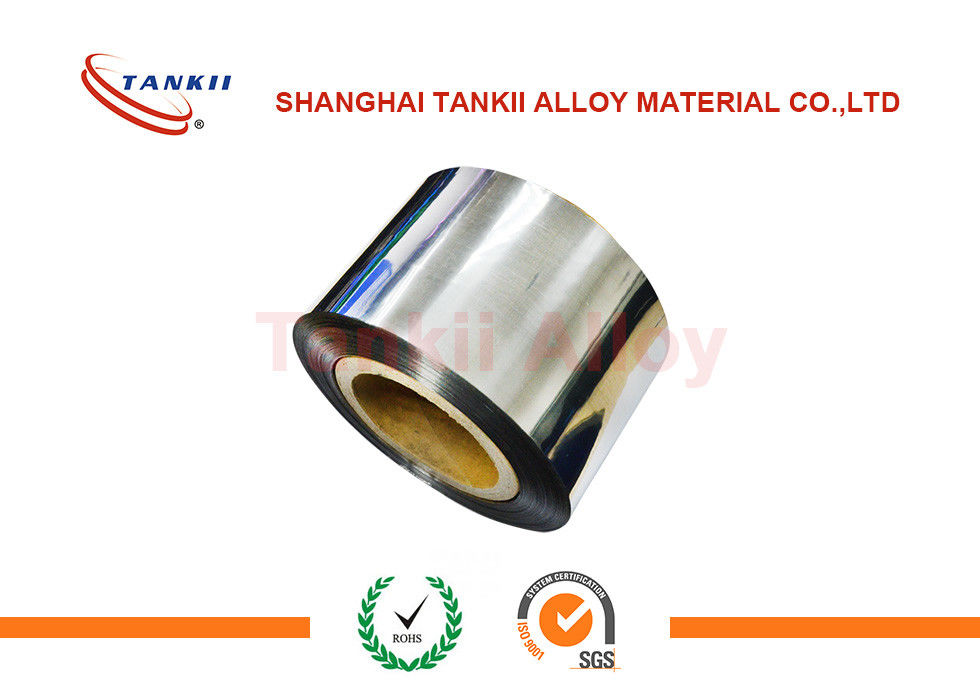

Nichrome 80/20 High Resistance Alloy Tape / Strip Foil 0.05x200mm

Nichrome 80/20 High Resistance Alloy Tape / Strip Foil 0.05x200mm

    • Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm
    • Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm
    • Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm
  • Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: TANKII
    Certification: SGS
    Model Number: NIchrome 80

    Payment & Shipping Terms:

    Minimum Order Quantity: 20.00 KG
    Price: USD 92.31-110.51 KG
    Packaging Details: wooden case
    Delivery Time: 7-10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3000KG per month
    Contact Now
    Detailed Product Description
    Sample: Free Surface: Bright
    Standard: GB/ASTM Type: Nichrome Foil
    Thickness: 0.05mm Color: Silver Gray
    Width: 200mm

    Nichrome 80/20 High Resistance Alloy Tape / Strip Foil 0.05x200mm

    ASTM B603,DIN17470,JISC2520,GB/T1234-9001

    Nichrome Tape
    Nichrome Grade: Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20

    NiCr 80/20 also called Chromel A, Cr20Ni80, N8, Nichrome V, HAI - NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1

    NiCr 80:20 – Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.
    NiCr 70:30 – Industrial furnaces (upto 1250°C) with alternating oxidizing/reducing atmosphere, precision resistors.
    NiCr 60:15 – Industrial furnaces (upto 1150°C), electrically heated equipment, high-resistance and potentiometer resistors.
    NiCr 40:20 – Domestic heating appliances (upto 1100°C), furnaces in carburising or semi-reducing atmosphere.
    NiCr 30:20/ NiCr 20:25 – Industrial furnaces (upto 1100°C), heating elements of cooking equipment.

    Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
    Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.



    Normal composition%


    C
    P S Mn Si Cr Ni Al Fe Other
    Max
    0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -



    Typical Physical properties

    Properties Grade
    NiCr 80/20
    NiCr 70/30
    NiCr 60/15
    NiCr 35/20
    NiCr 30/20

    Main Chemical Composition%
    Ni
    Balance
    Balance
    55.0-61.0
    34.0-37.0
    30.0-34.0
    Cr
    20.0-23.0
    28.0-31.0
    15.0-18.0
    18.0-21.0
    18.0-21.0
    Fe
    ≤1.0
    ≤1.0
    Balance
    Balance
    Balance
    Max Continuous Service Temperature(°C)
    1200
    1250
    1150
    1100
    1100
    Resisivity (uΩ.m,20°C)
    1.09
    1.18
    1.11
    1.04
    1.04
    Density (g/cm3)
    8.4
    8.1
    8.2
    7.9
    7.9
    Thermal Conductivity(KJ/m·h·°C)
    60.3
    45.2
    45.2
    43.8
    43.8
    Coefficient of Thermal Expansion(α×10-6/°C)
    18.0
    17.0
    17.0
    19.0
    19.0
    Melting Point( °C)
    1400
    1380
    1390
    1390
    1390
    Elongation(%)
    ≥20
    ≥20
    ≥20
    ≥20
    ≥20
    Micrographic Structure
    austenite
    austenite
    austenite
    austenite
    austenite



    Style of supply

    Alloys Name Type Dimension
    Ni80Cr20W Wire D=0.03mm~8mm
    Ni80Cr20R Ribbon W=0.4~40 T=0.03~2.9mm
    Ni80Cr20S Strip W=8~250mm T=0.1~3.0
    Ni80Cr20F Foil W=6~120mm T=0.003~0.1
    Ni80Cr20B Bar Dia=8~100mm L=50~1000



    Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm

     Nichrome  80/20  High Resistance Alloy Tape / Strip Foil 0.05x200mm
