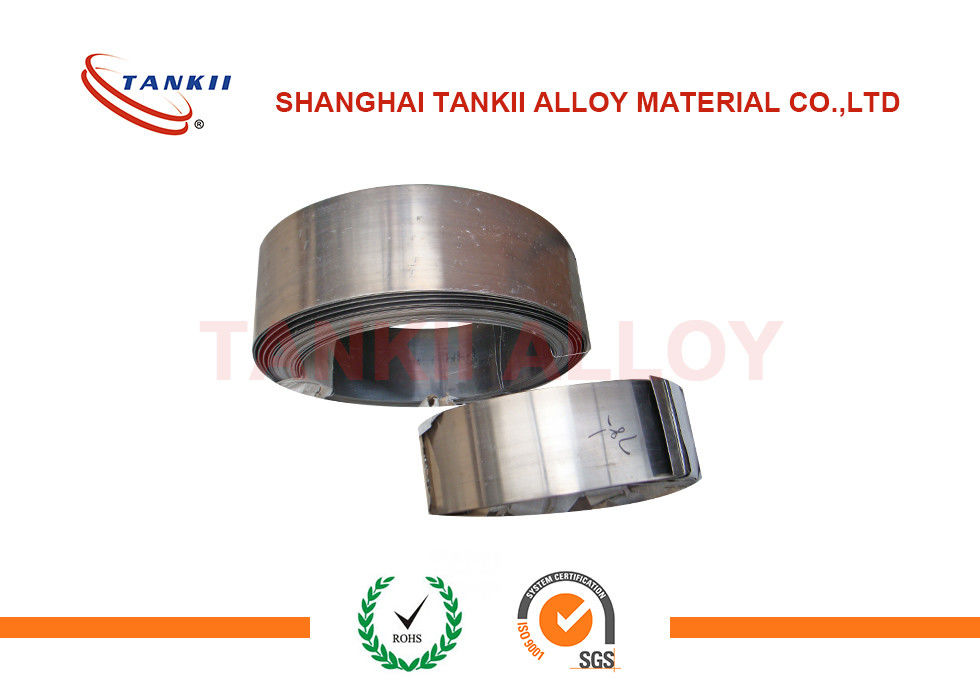

ISO FeCrAl Alloy strips / flat wire with oxidized color for air heating cassettes

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr21Al6Nb/ k-anthal A1

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: usd7.1/kg

Packaging Details: On Spool, In Coil

Delivery Time: 2 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

fecral wire

,

high temperature wire

Resistivity:
1.45
Density:
7.1
Thickness:
0.3mm And 0.4mm
Width:
6.7mm Or Custom Made
Stock:
6.7mm Width In Stock
Stock Weight:
600kg
Package:
Wooden Box
Leading Time:
About 2 Dyas
Item:
ISO FeCrAl Alloy Strips / Flat Wire With Oxidized Color For Air Heating Cassettes
Resistivity:
1.45
Density:
7.1
Thickness:
0.3mm And 0.4mm
Width:
6.7mm Or Custom Made
Stock:
6.7mm Width In Stock
Stock Weight:
600kg
Package:
Wooden Box
Leading Time:
About 2 Dyas
Item:
ISO FeCrAl Alloy Strips / Flat Wire With Oxidized Color For Air Heating Cassettes
Description
ISO FeCrAl Alloy strips / flat wire with oxidized color for air heating cassettes


FeCrAl strips / wires / flat wire with oxidized color and customized size used for aluminum industrial

1. Description
FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
We also produce below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
Kanthal A1, Kanthal, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF Kanthal AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, Kanthal APM
Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low  resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.05mm-10.0mm



3. Details of tankii  strips

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08

1.42
±0.06

1.42
±0.07

1.35
±0.07

1.23
±0.07

1.45
±0.07

1.53
±0.07

Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic



Typical application areas of air heating cassettes

  • Pre-heating of aluminium

  • Homogenising of aluminium

  • Heat treatment in the metallurgical industry

  • Drying of ore concentrates

  • Drying of materials in the wood processing industry

  • Roasting and drying in the food industry

  • Baking in large bakery ovens

  • Drying of chemicals

  • Drying and stoving of paints (stoving furnaces)

 ISO FeCrAl Alloy strips / flat wire with oxidized color for air heating cassettes 0


4. About us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Welcome to call me or email to me for more info on resistohm strips.
