Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: NC005
Payment & Shipping Terms
Minimum Order Quantity: 10kg per size
Price: USD 22.5/kg
Packaging Details: Standard export package
Delivery Time: 3-5 days after getting the payment
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 1000T per year
Grade: |
Cuni2 |
Wire Shape: |
Round |
Wire Color: |
Copper Color |
Application: |
Heating Element |
Density: |
8.9 |
Item: |
Stock Copper Nickel Alloy Wire NC005 0.1mm 0.2mm 0.05 μΩ Resistivity Used For Auto Industry |
Grade: |
Cuni2 |
Wire Shape: |
Round |
Wire Color: |
Copper Color |
Application: |
Heating Element |
Density: |
8.9 |
Item: |
Stock Copper Nickel Alloy Wire NC005 0.1mm 0.2mm 0.05 μΩ Resistivity Used For Auto Industry |
Stock Copper Nickel Alloy Wire NC005 0.1mm 0.2mm 0.05 μΩ resistivity used for auto industry
Product Description
Stcok copper nickel alloy wire NC005 0.1mm 0.2mm with yellow color with 0.05 μΩ resistivity used for auto industry
Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance. It always used for thermal overload relay, low-voltage relay etc.
Chemical Content, %
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
Cd |
Pb |
Hg |
Cr |
||||||
| 2 | - | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
Max Continuous Service Temp |
200ºC |
Resisivity at 20ºC |
0.05±10%ohm mm2/m |
Density |
8.9 g/cm3 |
Thermal Conductivity |
<120 |
Melting Point |
1090ºC |
Tensile Strength,N/mm2 Annealed,Soft |
≥220 Mpa |
Elongation(anneal) |
25%(Min) |
Elongation(cold rolled) |
≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) |
-12 |
Micrographic Structure |
austenite |
Magnetic Property |
Non |
Our advantages:
a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) We can provide all kinds of electric heating alloy material and elements, including customized products.
c) We can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

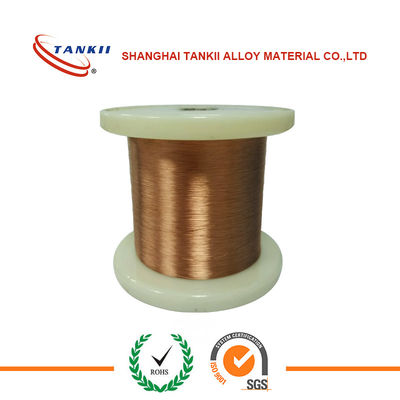

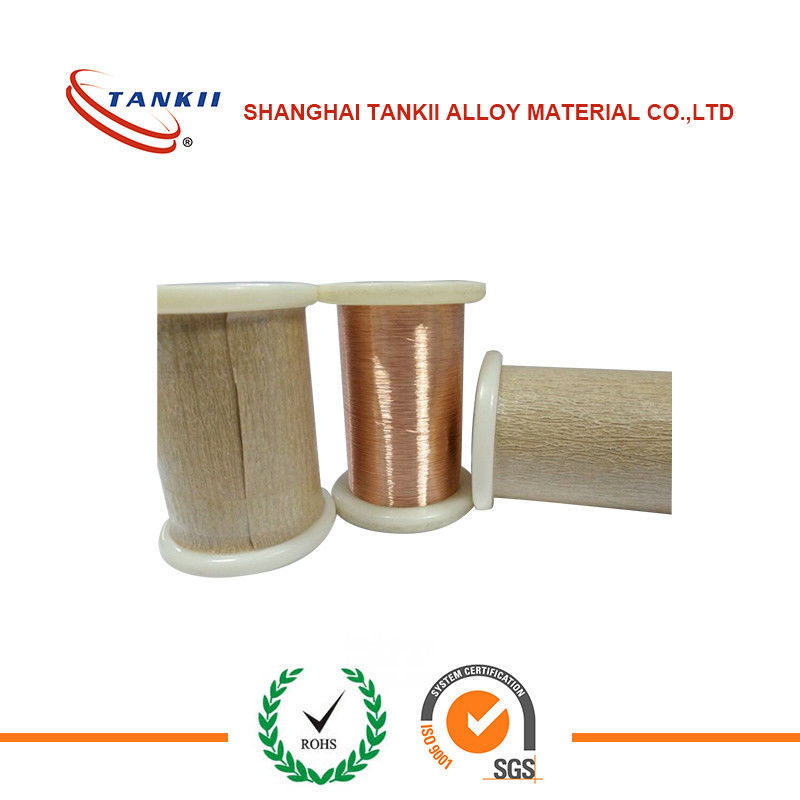

Product picture:
