16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard

16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard

    • 16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard
    • 16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard
  • 16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard

    Product Details:

    Place of Origin: Shanghai
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: Cu Foam

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 square meter
    Price: USD+ 14.6-19.8 + m2
    Packaging Details: carton+Wooden case
    Delivery Time: 7-10days
    Payment Terms: T/T, L/C, Western Union,
    Supply Ability: 5000000 Squaremeter
    Contact Now
    Detailed Product Description
    PPI: 80 Material: Copper
    Purity: >99.99%Cu Surface Density: >=320g/m2
    POROSITY: >98% Width: 1000mm MAX
    Thickness: 0.3mm MIN Sample: Free
    Standard: GB/ASTM Origin: Shanghai, China
    Application: NiMh Battey,shield, Filter,etc. Grade: AAA



    16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard

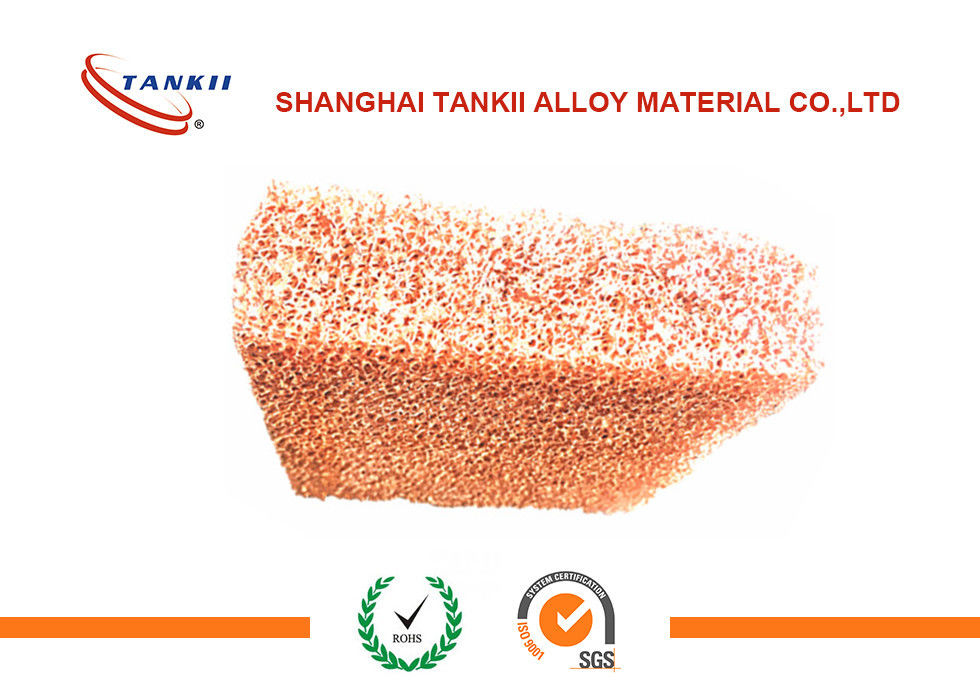

    Copper Foam is low density permeable material with numerous applications. The defining characteristic of these foams is a very high porosity, typically >98% of the volume consisting of void spaces. Metallic foams have found a wide variety of applications in heat exchangers, energy absorption, flow diffusion and lightweight optics. Ceramic foam is often used for thermal insulation, acoustic insulation, adsorption of environmental pollutants, filtration of molten metal alloys, and as substrate for catalysts requiring large internal surface area. Copper Foam is generally immediately available in most volumes. Additional technical, research and safety (MSDS) information is available.

    1 Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.

    2 The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.



    PERFORMANCE INDEX



    ITEM CONTINUOUS COPPER FOAM THICK NICKEL FOAM
    THICKNESS (0.3~2.5)±0.05mm (2.6~80)±0.05mm
    PPI 90~120 10~80
    SURFACE DENSITY (250~1800)±30g/M2 (400~8000)±30g/M2
    TENSILE STRENGTH (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2
    ELONGATION

    (VERTICAL)≥5%

    (HORIZONTAL)≥12%


    POROSITY ≥98% ≥98%
    WIDTH (50~1000)±0.5mm (50~1000)±0.5mm
    SPLICE FREQUENCY 200m≤4 junction largest length 1000mm
    RATIO RESISTANCE ≤5X10-6 ≤5X10-6



    16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard16*500*500Mm Pure Copper Sheet , Cu Copper Matel Foam GB / ASTM Standard
