Product Details
Place of Origin: SHANGHAI
Brand Name: Tankii
Certification: ISO9001
Model Number: Nilo42
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Price: usd + 22.1 + kg
Packaging Details: wooden case
Delivery Time: 15-20 day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 + Ton + month
Chemical Composition: |
FeNi42 |
Resistivity: |
0.61 |
Density: |
8.12g/cm3 |
Specific Heat Capacity: |
502J |
Curie Point: |
360 |
State: |
Soft |
Chemical Composition: |
FeNi42 |
Resistivity: |
0.61 |
Density: |
8.12g/cm3 |
Specific Heat Capacity: |
502J |
Curie Point: |
360 |
State: |
Soft |

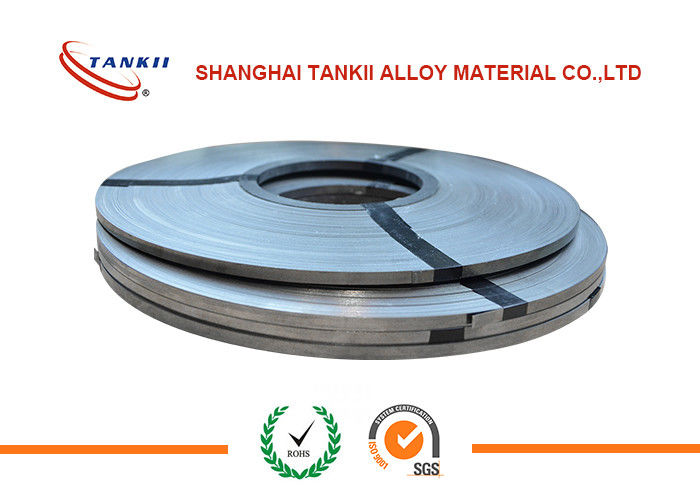

Nilo42 FeNi Glass Sealing alloy strip FeNi42 strip Used for glass sealed material making electron tubes, transistors
Nilo42 alloy is mainly composed of iron, nickel elements. It is characterized with a fixed coefficient of expansion. Increase the thermal expansion coefficient and the Curie point with increase of nickel content.
Nilo42 alloy is widely used the structure of the sealing material in the electric vacuum industry.
Normal composition%
| Ni | 41.5~42.5 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | ≤0.8 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 | Al | ≤0.1 |
Basic physical constants and mechanical properties of the alloy:
| brand | Thermal conductivity | Specific heat capacity | Density | Electric resistivity | Curie point |
| Nilo42 | 14.6 | 502J | 8.12 | 0.61 | 360 |
| Typical expansion character(10 -6 / ºC ) | ||||||||
| Temperature range | 20~100 | 20~200 | 20~300 | 20~350 | 20~400 | 20~450 | 20~500 | 20~600 |
| Expansion coefficient | 5.6 | 4.9 | 4.8 | 4.95 | 5.9 | 6.9 | 7.8 | 9.2 |
Typical Mechanical properties
| Tensile Strength | Elongation |
| Mpa | % |
| 490 | 35 |
| The heat treatment process | |
| Annealing | Heated to 900 ±20ºC in a hydrogen atmosphere |
| Holding time, h | 1 hour |
| cooling | With speed not more than 5 ºC / min. cooling to below 200 ºC |
Nilo42 alloy is mainly used for soft glass and ceramic seal, such as electron tubes, transistors and integrated circuit of fuses, framework, and the sealing plug
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
