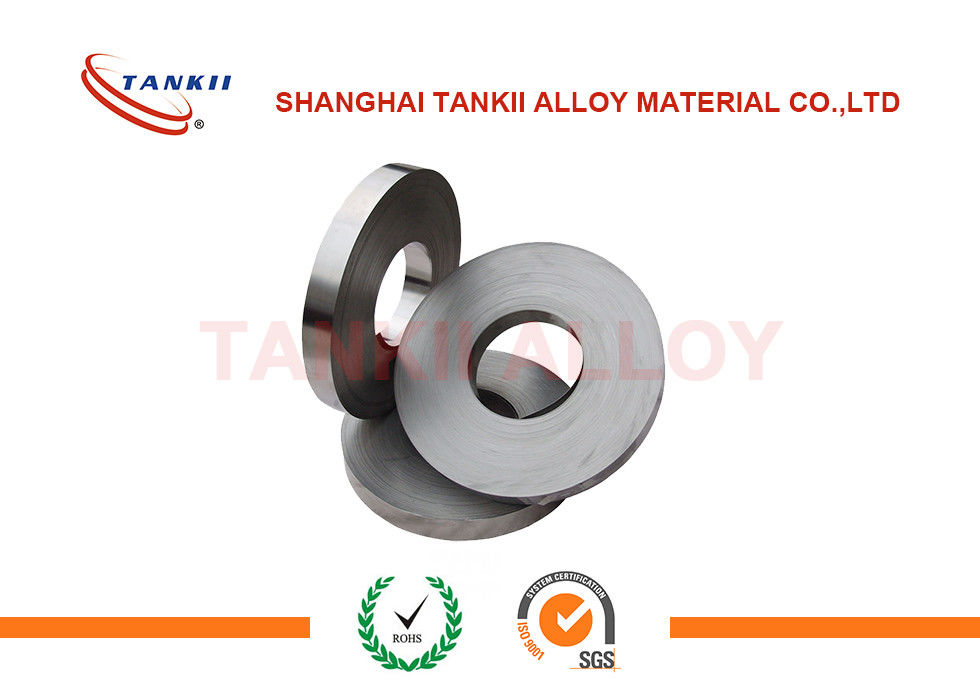

0.5 * 80mm Nicr Alloy Ni80Cr20 Nichrome Alloy Strip Silver Resistance Materials

Product Details

Place of Origin: china

Brand Name: tankii

Certification: IS9001

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: dollar + 30 + kg

Packaging Details: wooden case

Delivery Time: 6-10day

Payment Terms: L/C, T/T, D/A

Supply Ability: 100 + kg + day

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome wire

Use:
Resistance Materials
Highest Temperature:
1200℃
Resistivity:
1.09 μΩ·m
Density:
8.4
Size:
0.5*80mm
State:
Soft
Linear Expansion Coefficient:
18.0
Elongation:
≥20
Use:
Resistance Materials
Highest Temperature:
1200℃
Resistivity:
1.09 μΩ·m
Density:
8.4
Size:
0.5*80mm
State:
Soft
Linear Expansion Coefficient:
18.0
Elongation:
≥20
Description
0.5 * 80mm Nicr Alloy Ni80Cr20 Nichrome Alloy Strip Silver Resistance Materials

0.5*80mm Ni80Cr20 nichrome alloy strip nichrome resistance strip silver Mainly used as resistance materials
Packaging & Delivery

Packaging Details:Standard plywood case packaging or according to your demand for nickel strip.
Delivery Detail:10~15 days

Specifications
nickel 200 strip
1.Grade:Ni200,Ni201,N4,N6
2.Purity: 99.6%
3.Density: 8.9g/cm3
4.Certification: ISO9001,ISO14001,CE
nickel 200 strip
nickel 200 strip Products information

Item Name
GETWICK Nickel Strip

Material

Pure Nickel and Alloy Nickel

Grade

Ni200,Ni201,N4,N6

Purity

99.6%
Specification
Thick 0.01mm min.

Applications
1)70% Ni was used for produce stainless steel and heat resistance steel
2)15% of the Ni in the world was used as electroplating.
3)Used as catalyst in oil industry

nickel 200 strip Chemical requirements

NameChemical Comsitions
Pure NickelNiMnCMgSiFeOthers
99.90.010.010.010.020.04<0.01


Specification

Item Namenickel 201 strip
GradeNi4,Ni6
Specification(mm)ThicknessWidthLength
0.05-0.1520-250More than 5000
0.15-0.55More than 3000
0.55-1.2More than 2000
Supply FormTitanium strips coiling
Applications1)Manufacture and handling of sodium hydroxide, particularly at temperature above 300°C.
2) Production of viscose rayon. Manufacture of soap.
3) Analine hydrochloride production and in the chlorination of aliphatic hydrocarbons such as benzene, methane and ethane.
4) Manufacture of vinyl chloride monomer. 5) Storage and distribution systems for phenol - immunity from any for of attack ensures absolute product purity.


Product: Nickel Chromium Alloy Sheet (Ni80Cr20)
Grade: Ni80Cr20
Resistivity: 1.09 ohm mm2/m
Chemical Composition: Nickel 80%, Chrome 20%
Condition: Bright, Annealed, Soft
Dimension: Width 1~300mm, Thickness 0.01~7mm
Producer: Shanghai Tankii Alloy Material Co., Ltd.
Mechanical Properties

Max Continuous Service:
Fast Life(1200ºC)
Resisivity( 20ºC)/Ω·m:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:
1200ºC
Min 80 hours
1.09 +/-0.05 (Dia: <0.5mm)
1.13+/-0.05 (Dia: 0.50-3.00 mm)
1.14+/-0.05 (Dia: >3.0mm)
8.4 g/cm3
60.3 KJ/m·h·ºC
18.0 α×10-6/ºC
1400 ºC
Min 20%
Austenite
nonmagnetic
Advantage
1>Baoji Qixin Titanium Co,. Ltd is located in "The Chinese Titanium Valley" who has specialized in Titanium Anode and Titanium Material for 10 yeas old.
2>Technical Standard
Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Flaring test and so on.
3>Certification: ISO9001, SGS, PED.
4>Production capacity:150 tons/ per year.
5>BEST SEVICE:Can be customized and shipment quickly .
6>First quality and competitive price
Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.


0.5 * 80mm Nicr Alloy Ni80Cr20 Nichrome Alloy Strip Silver Resistance Materials 0
