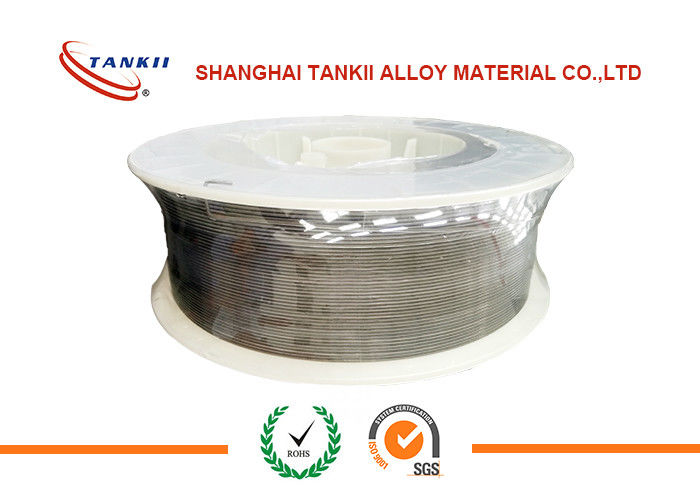

Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: Babbitt Wire

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: Negotiation

Packaging Details: spool, plastic film, carton, wooden case

Delivery Time: 7-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000ton/Year

Get Best Price
Contact Now
Specifications
Highlight:

high heat wire

,

low voltage heating wire

Model No:
SnSb8Cu4
Application:
Thermal Spray Coating
Shape:
Wire
Material:
High Sn
Condition:
Bright, Smooth
Treatment:
Hydrogen Annealing
Weight For Per Coil:
15kg
Standard Size:
1.6mm,2.0mm,3.17mm
Density:
6.67g/cm3
Melting Point:
354°C
Model No:
SnSb8Cu4
Application:
Thermal Spray Coating
Shape:
Wire
Material:
High Sn
Condition:
Bright, Smooth
Treatment:
Hydrogen Annealing
Weight For Per Coil:
15kg
Standard Size:
1.6mm,2.0mm,3.17mm
Density:
6.67g/cm3
Melting Point:
354°C
Description
Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems

Thermal Spray Babbitt Wire Used In Arc Spray & Flame Spray Systems



Product Overview

TANKII Babbitt Thermal Spray Wire is a high tin, lead free Babbitt wire specifically designed for spraying in arc spray and flame spray systems. It Produces dense, well-bonded coatings particularly to high speed and heavy duty bearings.





Babbitt metal Sn8-4, Sn11-6



Chemical Composition

Type Chemical composition
Sn Sb Cu other
Babbitt wire 90 7~8 3~4

0.25





Physical Properties

Grade Density Melting point
Babbitt wire 6.67 g/cm3 354 °C



Typical Deposit Characteristics:

Typical Hardness Bond Strength Deposit Rate Deposit Efficiency Machilityineab
Nil 3000 psi

48 lbs /hr/100A



70% Good



Standard Sizes & Packing:

Diameter Packing Wire Weight
1/16 (1.6mm) D 300 Spool 15kg((33 lb)/spool

Other sizes can produced based on customers’ requirement.



Application or properties:

For use on heavy machinery such as high speed bearing bush of steam turbine, gas turbine and combustion engine

For use on components such as compression machine, ball grinding mill, beating machine bearing, bearing bush, steel rolling machine, dryer machine

Applications on bearings and bearing bush of ship machinery, chemical machinery, mine machinery, reduction gears and mechanical seal.



It is used in the flame spraying, arc spraying, supersonic plasma spraying, the ordinary plasma spraying.

Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems 0

Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems 1

Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems 2

Diameter: 1.2mm, 1.6mm, 2.0mm, 3.0mm



Technical Index



1 Coating Hardness: 23~25 HRC



2 Bond Strength: 60Mpa above



3 Working Temperature: 1250 °C below



Packaging & Shipping


Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.

Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems 3





Our Services

1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.



Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems 4
