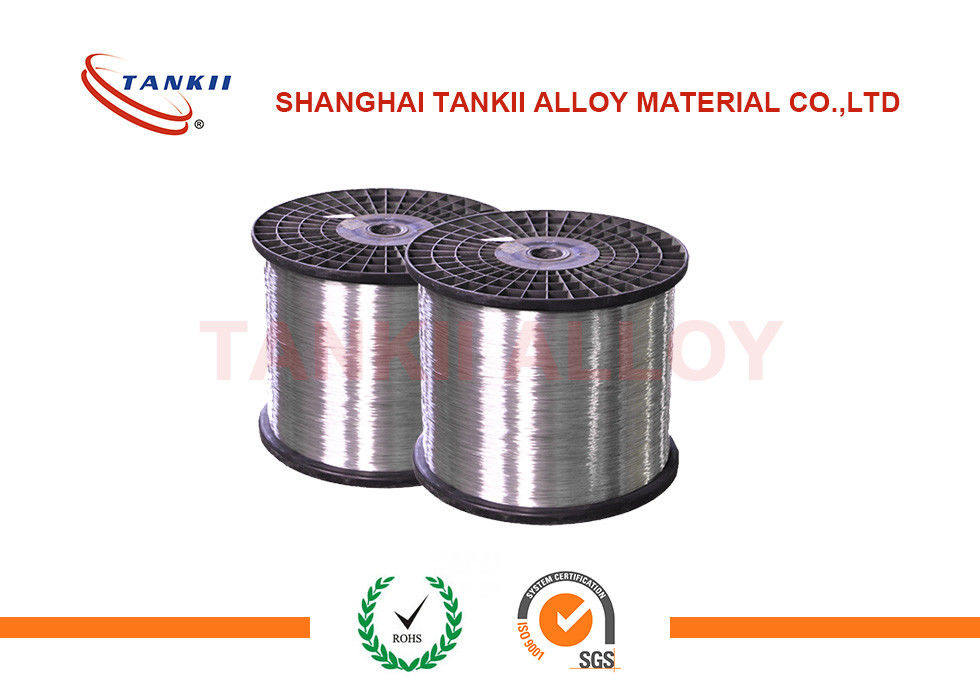

0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment

0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment

    • 0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment
    • 0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment
  • 0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO,ROHS
    Model Number: N200 N201

    Payment & Shipping Terms:

    Minimum Order Quantity: 10KG
    Packaging Details: in roll, wooden case outside
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100,000/Month
    Contact Now
    Detailed Product Description
    Grade: Pure Nickel: :99.6% Application: : Electronic Industry / Chemical Treatment
    Standard: : ASTM B162 Sample Free: :Available
    Thickness: : 0.002 To 2.50 Mm Width: : Up To 600mm Wide

    0.08mm N200 N201 Pure Nickel wire for Electronic Industry / Chemical Treatment



    Pure nickel foil

    We manufacture Nickel 200 and 201 wire, strip, foil, ribbon, sheets and plates, which conform to the ASTM B162 standard.



    It’s commercially pure (99.6% and  99.9%) with good mechanical properties, and is resistant to a range of corrosive media.



    Our nickel strip and tags make excellent battery connectors because they have a low electrical resistance.



    Nickel Strip Capabilities

    Grade

    Pure Nickel Strip 99.6% / 99.9%

    Thickness

    0.02 to 2.50 mm

    Tolerances

    +/- 5% (special tolerances is available)

    Width

    Up to 350mm wide

    Coil size

    Up to 80 kg without welds

    Temper Ranges

    Annealed to Full Hard

    Nickel Strip Chemical requirements

    Grade

    Ni+Co

    Cu

    Si

    Mn

    C

    Mg

    S

    P

    Fe

    N4

    99.9

    0.015

    0.03

    0.002

    0.01

    0.01

    0.001

    0.001

    0.04

    N6

    99.6

    0.10

    0.10

    0.05

    0.10

    0.10

    0.005

    0.002

    0.10

    Ni201

    99.0

    0.25

    0.35

    0.35

    0.02

      /

    0.01

    /

    0.40

    Ni200

    99.0

    0.20

    0.30

    0.30

    0.15

    /

    0.01

    /

    0.40



    0.08mm N200 N201 Pure Nickel Strip Wire For Electronic Industry / Chemical Treatment



    Properties of Pure Nickel Strip:

    1.  Higher electrical conductance
    2.  Raised Curie Temperature
    3.  Superior Magnetostrictive Properties
    4.  Excellent thermal conductivity



    Applications of Nickel 200 Strip:

    1.  Manufacturing artificial synthetic fibers.
    2.  Chemical Treatment and Preservation.
    3.  Aerospace Industry.
    4.  Cathode tap
    5.  Cell connector
