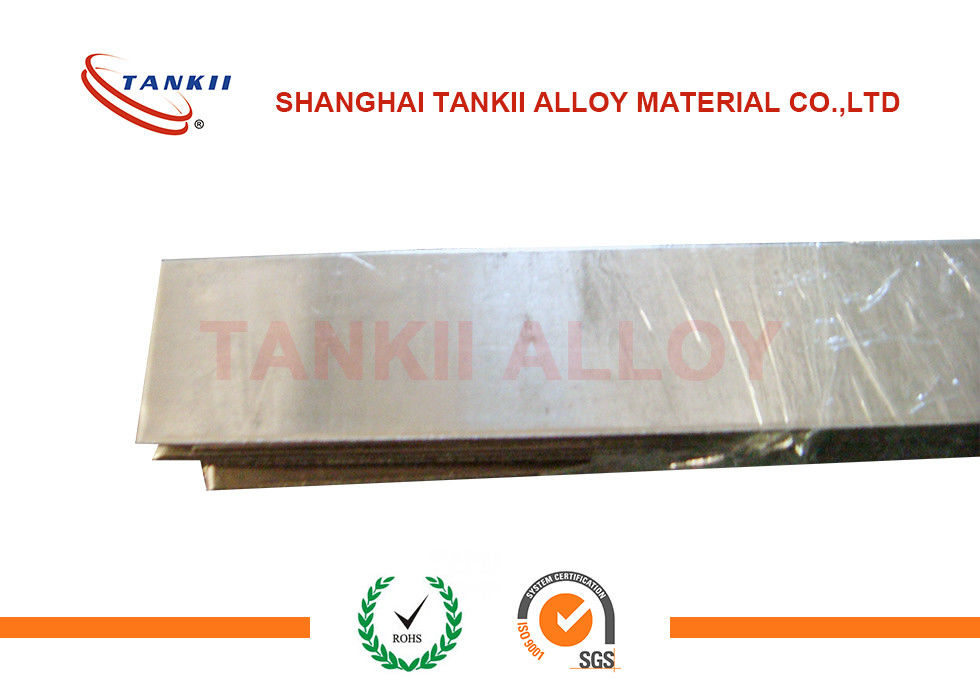

Ni60Cr23 Material Nickel Alloy Sheet UNS N06601 / W.Nr.2.4851 Inconel 601 , 0.5*70mm

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001/SGS

Model Number: Ni60Cr23/Inconel601/Nickel Alloy

Payment & Shipping Terms

Minimum Order Quantity: 50kgs

Price: usd 32-35/kg

Packaging Details: wooden case

Delivery Time: 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000 ton/year

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Material:
Ni60Cr23
Size:
0.5*70mm
Shape:
Strip/sheet/tape
Grade:
Ni60Cr23/Inconel601/UNS N06601/610H
MOQ:
30kg
Density:
8.1g/cm3
Melting Range:
1320-1370 °C
Tensile Strength:
650 Rm N/mm2
Yield Strength:
300 RP0.2N/mm2
Elongation:
30
Hardness(HB):
200
Material:
Ni60Cr23
Size:
0.5*70mm
Shape:
Strip/sheet/tape
Grade:
Ni60Cr23/Inconel601/UNS N06601/610H
MOQ:
30kg
Density:
8.1g/cm3
Melting Range:
1320-1370 °C
Tensile Strength:
650 Rm N/mm2
Yield Strength:
300 RP0.2N/mm2
Elongation:
30
Hardness(HB):
200
Description
Ni60Cr23 Material Nickel Alloy Sheet UNS N06601 / W.Nr.2.4851 Inconel 601 , 0.5*70mm
Nickel Alloy UNS N06601/W.Nr.2.4851 Inconel 601


Product Overview of Inconel 601:
TANKII Brand Inconel601 alloy have excellent oxidation resistance at high temperature, good carbonization resistance, good resistance to oxidation sulfur atmosphere, and has good mechanical properties at room and high temperature as good resistance to stress corrosion cracking performance due to control the carbon content and grain size, Inconel 601 had a higher creep rupture strength, therefore it is recommended to use in the field of above 500 ºC.

You can find below Characters of Inconel 601:
(1) Have excellent oxidation resistance at high temperature;
(2) Good carbonization resistance;
(3) Can be a very good resistance to oxidation sulfur atmosphere;
(4) H
as good mechanical properties at room and high temperature;
(5)
Good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 has high creep rupture strength, therefore it is recommended to use in the field of above 500 ºC;

Application Field of Inconel 601:
(1) Tray, basket and fixture used in heat treatment factories;
(2) Mesh belt used in steel wire annealing and radiant tube, high-speed gas burner and furnace;
(3) Components of exhaust system;
(4) Combustion chamber of solid waste incinerator;
(5) Components of pipe supports and ash handling;
(6) Components of exhaust detoxification system;
(7) Oxygen re-heater;


Chemical Compositon of Inconel 601 Wt.%:

Inconel 601 (UNS N06601/W.Nr.2.4851)
% Ni Cr Fe C Mn Si Cu Al P S
Min 58 21
Max 63 25 Bal. 0.1 1.5 0.5 1 1.7 0.02 0.015


Inconel 600's Min Value of Mechanical Properties at normal temperature:

Typical Mechanical Properties Tensile Srength Rm N/mm2 Yield Strength Rp0.2N/mm2 Elongation A5 % Hardness HB
annealed treatment 650 300 30 -
solution treatment 600 240 30 220


Ni60Cr23 Material Nickel Alloy Sheet UNS N06601 / W.Nr.2.4851 Inconel 601 , 0.5*70mm 0

Our Services

1) We can provide a free sample for testing but the freight at yours.

2) Mill test certificate will be provided after production, If it is necessary.

3) Good packing methods to keep goods no damage during delivery

4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.



Ni60Cr23 Material Nickel Alloy Sheet UNS N06601 / W.Nr.2.4851 Inconel 601 , 0.5*70mm 1
