Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001
Model Number: 0Cr27Al7Mo2
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: On Spool,In Coil
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Resistivity: |
1.53 |
Suitable Temperature: |
1400 C |
Density: |
7.1 |
Linear Expansion Coefficient: |
16 |
Tensile Strength: |
686~784 |
Hardness: |
200~260 |
Resistivity: |
1.53 |
Suitable Temperature: |
1400 C |
Density: |
7.1 |
Linear Expansion Coefficient: |
16 |
Tensile Strength: |
686~784 |
Hardness: |
200~260 |
0Cr27Al7Mo2 FeCrAl Alloy for Electrical Heating Elements and Industrial Furnaces
Fecral Heating Alloy
1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in the single crystal furnace, sintering furnace, ceramic calcining Furnace and heat treatment furnace.
2. Specification

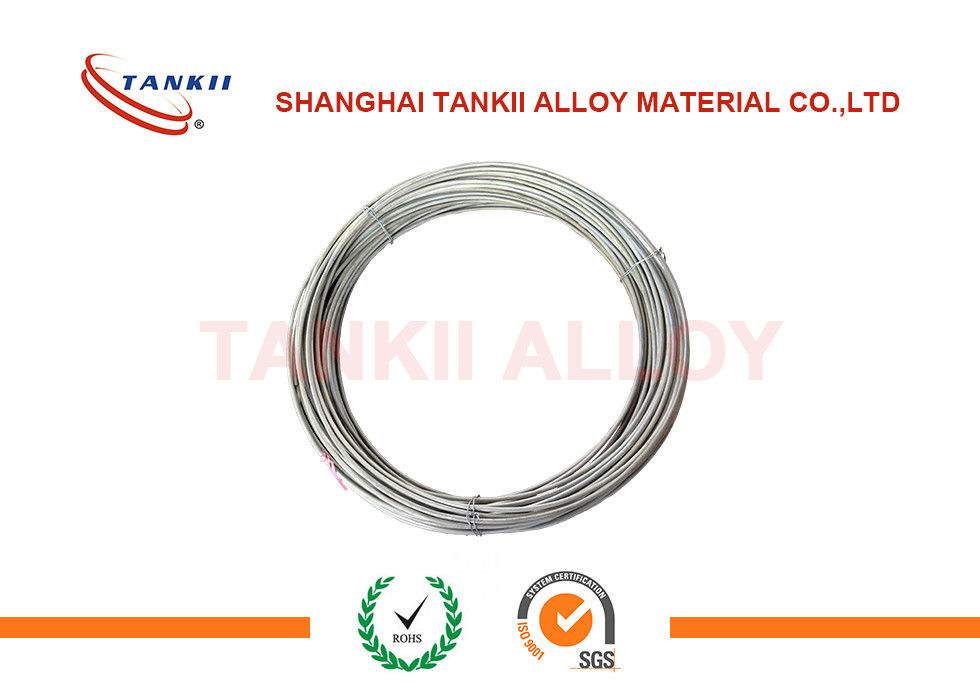

Wire:
Diameter: 0.15mm-8.0mm
Strip:
Thickness: 0.6mm-3.0mm
Width: 5mm-250mm
3. Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
4. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
| The allowable tolerance of alloy strip GB/T1234-2012 | ||||
| Category | Thickness ( mm ) | Tolerance ( mm) | ||
| Common precision | High precision | |||
| Cold-rolled strip | 0.05 ~ 0.1 | ±0.01 | ±0.005 | |
| 0.1 ~ 0.2 | ±0.015 | ±0.01 | ||
| 0.2 ~ 0.5 | ±0.02 | ±0.015 | ||
| 0.5 ~ 1.0 | ±0.03 | ±0.025 | ||
| 1.0 ~ 1.8 | ±0.04 | ±0.03 | ||
| 1.8 ~ 2.5 | ±0.05 | ±0.04 | ||
| 2.5 ~ 4.0 | ±0.06 | ±0.05 | ||
| Hot-rolled Strip | 2.5 ~ 5.0 | ±0.25 | ±0.2 | |
| 5.0 ~ 7.0 | ±0.3 | ±0.25 | ||
| 7.0 ~ 10.0 | ±0.4 | ±0.35 | ||
| 10.0 ~ 20.0 | ±0.5 | ±0.45 | ||
| The allowable tolerance of alloy strip GB/T1234-2012 | ||||
| Category | Width ( mm ) | Tolerance ( mm ) | ||
| side cut | Nonside cut | |||
| Common precision | High precision | |||
| Cold-rolled Strip | 5.0 ~ 10.0 | ±0.2 | ±0.1 | -0.6 |
| 10.0 ~ 20.0 | -0.8 | |||
| 20.0 ~ 30.0 | -1 | |||
| 30.0 ~ 50.0 | ±0.3 | ±0.15 | -1.2 | |
| 50.0 ~ 100.0 | ±1.0 | |||
| 100.0 ~ 200.0 | ±0.5 | ±0.25 | ±1.5 | |
| 200.0 ~ 300.0 | ±1.8 | |||
| Hot-rolled Strip | 15.0 ~ 60.0 | / | ±1.5 | |
| 60.0 ~ 200.0 | ±2.5 | |||
| 200.0 ~ 300.0 | ±3.0 | |||
