ASTM / JIS / GB / DIN Nickel Plated Copper Wire 0.02 mm 2.5 mm Round Wire

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO 9001:2008

Model Number: 0.02mm

Payment & Shipping Terms

Minimum Order Quantity: 1 kilogram

Price: USD ( 10 - 60 ) kilogram

Packaging Details: Standard export Packing

Delivery Time: 7 -10 work day

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

nickel copper alloy

,

alloy of copper and nickel

Material:
Manganin Wire
Color:
Red Green Etc.
Sample:
Free
Standard:
ASTM / JIS / GB / DIN
Material:
Manganin Wire
Color:
Red Green Etc.
Sample:
Free
Standard:
ASTM / JIS / GB / DIN
Description
ASTM / JIS / GB / DIN Nickel Plated Copper Wire 0.02 mm 2.5 mm Round Wire

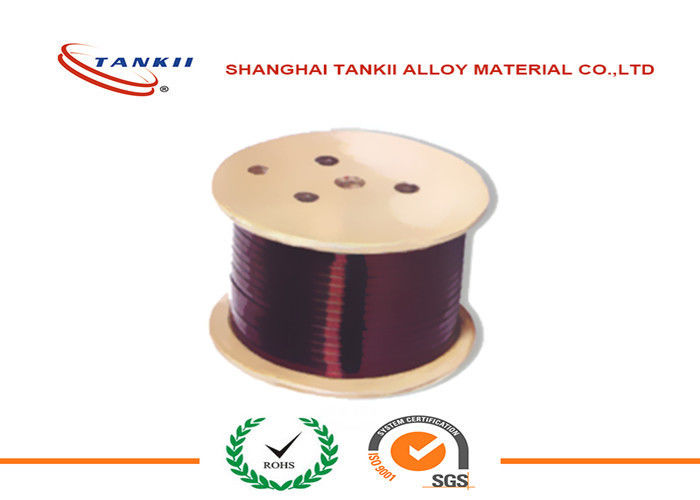

Enamelled Mirco Wire Dia 0.02mm Used For Precision Instrument



Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.02mm~2.5mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*5mm

Moq:5kg each size



Type of Insulation

Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY

MW81C







alloy type chemical composition %

maximum

temperature

resistivity

Ω·m

melting

point℃

Tensile

Strength



magnetism
  Cr Al Ni Fe
OCr21Al4 17.0-21.0 3.0-4.0 non rest 1100 1.23±0.06 1500 750 yes
OCr25Al5 23.0-26.0 4.5-6.5 non rest 1250 1.42±0.07 1500 751 yes
OCr21Al6Nb 21.0-23.0 5.0-7.0 non rest 1350 1.43±0.08 1510 752 yes
KSC 22.0--24.0 5.0-7.0 non rest 1350 1.44±0.05 1510 753 yes
OCr27Al7Mo2 26.8-27.8 6.0-7.0 non rest 1400 1.53±0.07 1520 754 yes
Cr20Ni80 20.0-23.0 non rest ≤1.0 1200 1.09±0.05 1400 755 no
Cr30Ni70 30.0 non rest ≤1.0 1250 1.18±0.05 1380 756 no
Cr15Ni60 15.0-18.0 non 55 rest 1150 1.12±0.05 1390 757 no
Cr20Ni35 18.0-21.0 non 35 rest 1100 1.04±0.05 1390 758 weak
Cr20Ni35D 19.0-21.0 non   rest 1100 1.04±0.05 1390 759 weak
Cr20Ni3O 20.0 non 32 rest 1100 1.04±0.05 1390 760



Type

Electrical resistivity

(20degreeΩ

mm²/m)

temperature coefficient of resistance

(10^6/degree)

Dens

ity

g/mm²

Max. temperature

(°c)

Melting point

(°c)

CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9



200

1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400

1280
