8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer

8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer
8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer 8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer

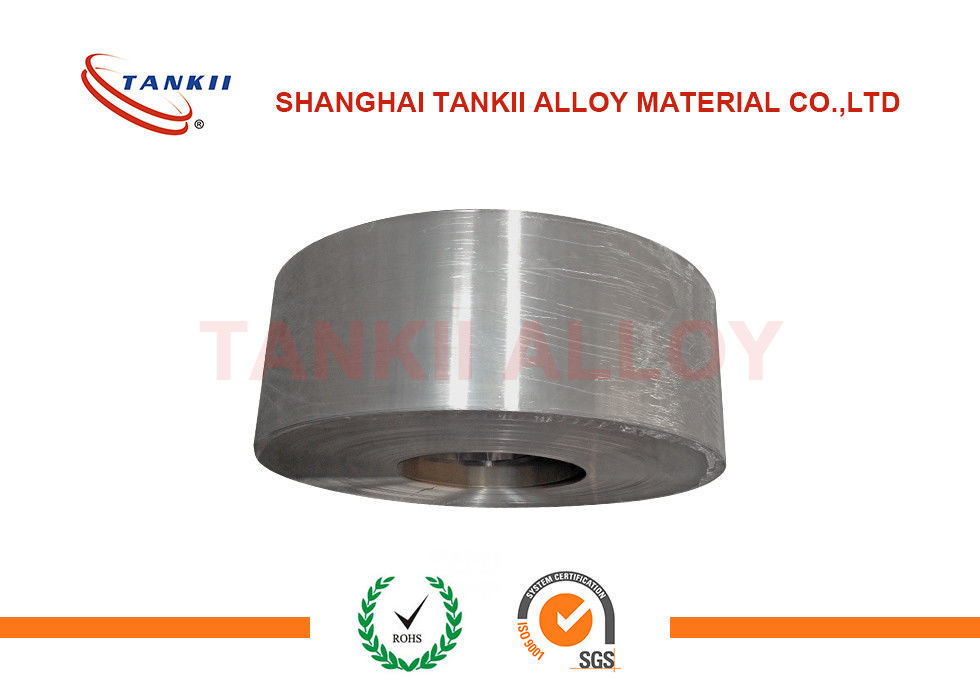

Large Image :  8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer

Product Details:
Place of Origin: China shanghai
Brand Name: tankii
Certification: ISO9001
Model Number: TM29
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: USD + 32 + KG
Packaging Details: wooden case
Delivery Time: 10-15day
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50 + Ton + month

8.1 g / cm3 Thermal bimetal material with Ni20Mn6 High expansion layer

Description
Use: Temperature Control Components Density: 8.1
Temperature Curvature: 28.5±5% Resistance: 0.8
Than Bending: 15.0 Product Name: Thermal Bimetal Strip
Highlight:

soft magnetic alloy

,

kovar alloy

ASTM TM29 Thermal bimetal strip



shop sign                                   TM29

High expansion layer                  Ni20Mn6

middle layer                                ---------

Low expansion layer                   Ni36



Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.6 ≤0.3 0.05 0.02 0.02
Ni20Mn6 19.0~21.0 - allowance - - - 5.5~6.5 0.15~0.30 0.05 0.02 0.02



performance



Than bending K(20~135ºC)                                             15.0±5%

Temperature curvatureF/(greenhouse ~ 130 ºC)             28.5%±5%

resistivity(μΩ·m)                                                                0.8±5%

Density (g/cm3)                                                                 8.1



Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control



different resistivity

Shanghai Tankii alloy material co., LTD is a company specializing in the production of Thermal bimetal alloy,nickel chromium alloy, copper, nickel alloy, iron chromium alloy, nickel alloy, thermocouple wire, pure nickel, and other precision alloy round wire, flat wire, wire rod, flat, wide and thin of large enterprises.Our factory has advanced production equipment, from smelting, hot rolling, cold rolling, drawing, heat treatment to the product factory is a set of strict production process control, at present the factory production of day brand nickel chrome belt, nichrome wire, iron chromium aluminum wire, iron chromium aluminum, resistance, copper nickel wire, copper, nickel, manganese, copper, manganese, copper wire, thermal spraying nickel aluminum wire, pure nickel wire, pure nickel belt, thermocouple wire of electric heating products have been exported to international markets.Shanghai day alloy material co., LTD has passed quality system certification and environmental protection system certification.The company in line with the tenet of "honest, quality first" in pursuit of scientific and technological innovation, create the first brand alloys as the business philosophy to the quality strives for the survival, to the survival and development.Professional and sincere hospitality is our aim.Warmly welcome people at home and abroad and the general new old customers to come to ask price inquiry, ask for samples, negotiate the business, technology, enhance friendship and create brilliant.
