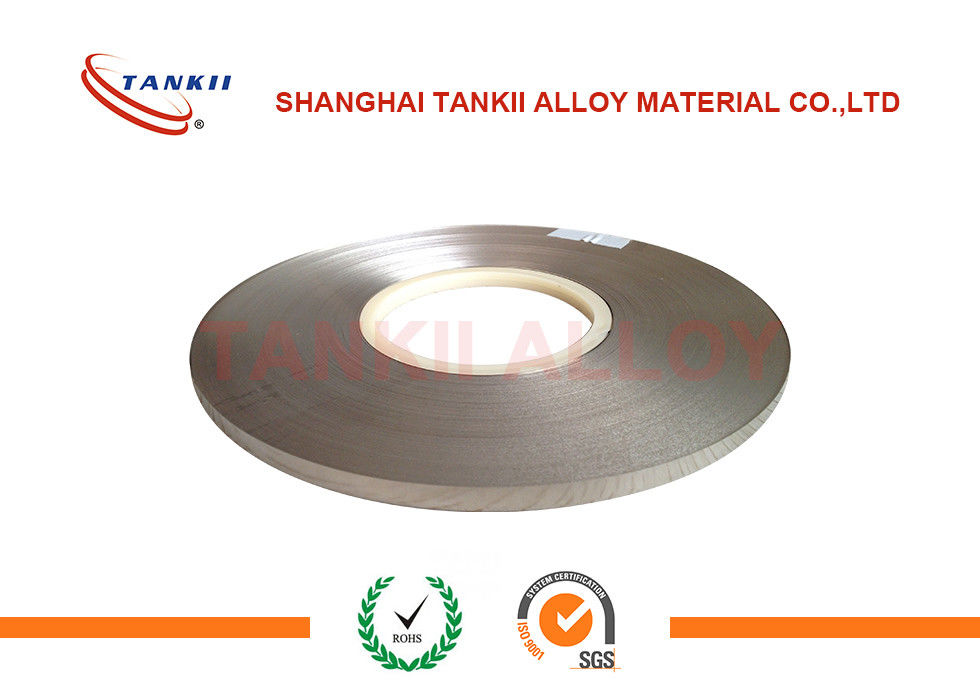

Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component

Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component
Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component

Large Image :  Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component

Product Details:
Place of Origin: China
Brand Name: tankii
Certification: ISO9001
Model Number: 5j1416
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD + 35 + KG
Packaging Details: wooden case
Delivery Time: 10-15day
Payment Terms: L/C, D/A, T/T
Supply Ability: 30 + T + month

Thermal Bimetal Strip / Plate / Sheet Silver Precision Alloy For Temperature Compensation Component

Description
Trait: High Resistivity Use: Thermal Element
Density: 8.1 Resistivity: 0.8
Highlight:

soft magnetic alloy

,

kovar alloy



overview
Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.


The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.


Main features: the resistivity, elastic modulus, allow stress is low, high thermal conductivity



shop sign 5j1416
With brand 5j17
Composite layer
alloybrand
High expansion layer Cu62Zn38
middle layer --------
Low expansion layer Ni36

Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.6 ≤0.3 0.05 0.02 0.02
Cu62Zn38 -- - ≤0.15 - 60.5~63.5 allowance - - - 0.01 -


performance

Than bending K(20~135ºC) Temperature curvature
F/(greenhouse ~ 130 ºC)
resistivity Linear temperature
/ ºC
Allows the use of temperature / ºC Density (g/cm after)
Nominal value Allowable deviation Standard values Allowable deviation
Level 1 Level 2
14.3 ±5% ±7% 26.7%±5% 0.16 ±10% -20~180 -70~250 8.3



Modulus of elasticity
E/GPa
Hardness (HV) Tensile strength
MPa
Allow stress MPa
High expansion layer Low expansion layer minimum biggest
98~127 165~210 200~255 637~736 98 294



production process
Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip
