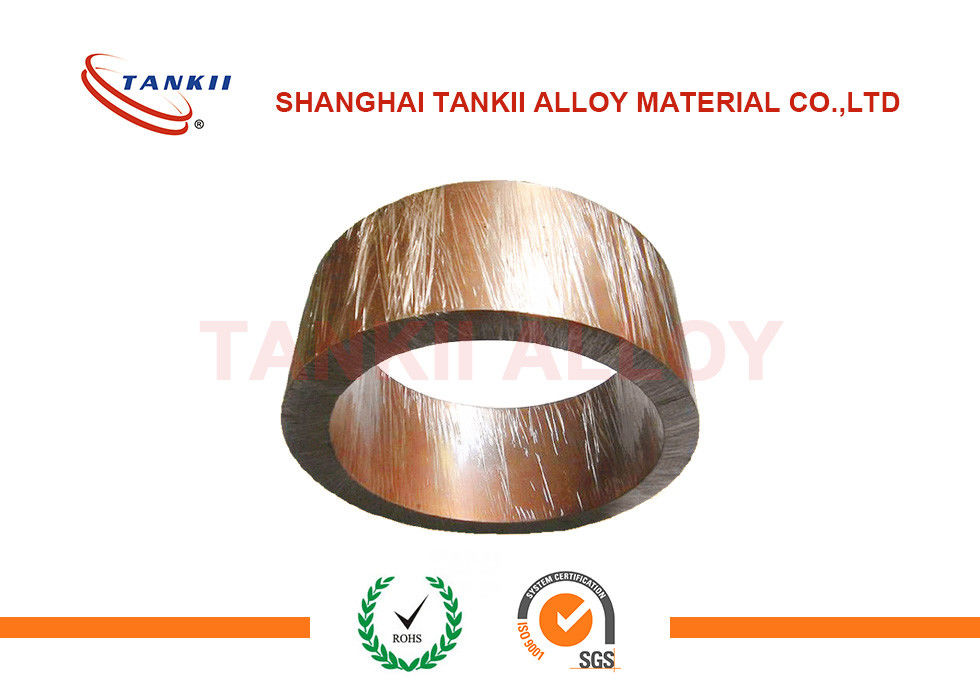

Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown

Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown

    • Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown
    • Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown
  • Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: TANKII
    Certification: ISO:9001 RoHS
    Model Number: CuNi1

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 kilograms
    Price: USD + 10 - 60 + kilograms
    Packaging Details: in spool,wooden case outside
    Delivery Time: 7 - 10 work days
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 200 + Tons + per month
    Contact Now
    Detailed Product Description
    Sample: Free Standard: ASTM / GB / JIS / DIN
    Surface: Bright State: Soft Hard
    Color: Brown



    Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown



    Chemical Content, %

    Ni Mn Fe Si Cu Other ROHS Directive
    Cd Pb Hg Cr
    1 - - - Bal - ND ND ND ND



    Mechanical Properties

    Max Continuous Service Temp 200℃
    Resisivity at 20℃ 0.03±10%ohm mm2/m
    Density 8.9 g/cm3
    Thermal Conductivity <100
    Melting Point 1090℃
    Tensile Strength,N/mm2 Annealed,Soft 140~310 Mpa
    Tensile Strength,N/mm2 Cold Rolled 280~620 Mpa
    Elongation(anneal) 25%(min)
    Elongation(cold rolled) 2%(min)
    EMF vs Cu, μV/ºC (0~100ºC) -8
    Micrographic Structure austenite
    Magnetic Property Non



    Application of CuNi1

    CuNi1 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.





    Main Technical Parameter:



    main property type

    NC003

    CuNi1

    NC005

    CuNi2

    NC010

    CuNi6

    NC012

    CuNi8

    NC012

    CuMn3

    NC015

    CuNi10

    NC020

    CuNi14

    NC025

    CuNi19

    NC030

    CuNi23

    NC035

    CuNi30

    NC040

    CuNi34

    NC050

    CuNi44

    main chemical composition Ni 1 2 5 8 / 10 14.2 19 23 30 34 44
    Mn / / / / 3 / 0.3 0.5 0.5 1.0 1.0 1.0
    Cu rest rest rest rest rest rest rest rest rest rest rest rest
    working temperature 200 200 220 250 200 250 300 300 300 350 350 400
    temperature coefficient of resistance <100 <120 <60 <57 <38 <50 <38 <25 <16 <10 -0 <-6
    melting point 1085 1090 1095 1097 1050 1100 1115 1135 1150 1170 1180 1280
    tensile mpa >210 >220 >250 >270 >290 >290 >310 >340 >350 >400 >400 >420
    elongation% >25 >25 >25 >25 >25 >25 >25 >25 >25 >25 >25 >25
    resistivity 0.03±10% 0.05±10% 0.10±10% 0.12±10% 0.12±10% 0.15±10% 0.20± 5% 0.25± 5% 0.30± 5% 0.35± 5% 0.40± 5% 0.49± 5%
    density g/cm3 8.9 8.9 8.9 8.9 8.8 8.9 8.9 8.9 8.9 8.9 8.9 8.9
    conductivity 145 130 92 75 84 59 48 38 33 27 25 23





    Main Advantage and Application:



    Copper Nickel Alloys Wire/Strip/Sheet Principally destined for the manufacturing of low temperatures electric resistances so as heating cables, shunts, resistances for automobile,they have a maximum operating temperature of 752°F.



    They do not therefore intervene in the field of resistances for industrial furnaces.Those are alloys of chemical composition copper + nickel with addition of manganese with a low resistivity (from 231.5 to 23.6 Ohm.mm2/ft).



    Service



    1 . fine after-sale services
    2 . small order accepted
    3 . samples available



    Low resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 BrownLow resistance CuNi1 NC003 copper nickel Alloy / Copper 2.5 Alloy 30 2.0802 Brown



    Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

    We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

    We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

    Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

    Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

    Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
