Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO
Model Number: Constantan
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: Strip/Wire/Ribbon diameter 0.005mm-1.0mm packing in spool, big than 1.50mm packing in coil
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000kg/Week
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Conductor Material: |
Solid Bare Copper |
Type: |
Foil |
Constantan Max: |
≤500 |
Application:: |
Strain Foil |
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Conductor Material: |
Solid Bare Copper |
Type: |
Foil |
Constantan Max: |
≤500 |
Application:: |
Strain Foil |
1. constantan
Product Details:
Grade: 6J40 also known as cuni40
Nature: With 40% nickel, 1.5% copper manganese alloy
Constantan is a type of resistance alloy, which is made up of copper and nickel as the main components.
It has a low temperature coefficient of resistance (TCR), and a wide operating temperature range (below 500°C). It has
good properities on mechanical working, high resistance of corrosion. It is used for variable and strain resistance of
corrosion. It is used for variable and strain resisitance elements in alternative instruments.
Our products have the following features: Stable performance, high resistivity, high working temperature, allowable high surface load, small specific gravity and reasonable price.
2. constantan dimension available
Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm

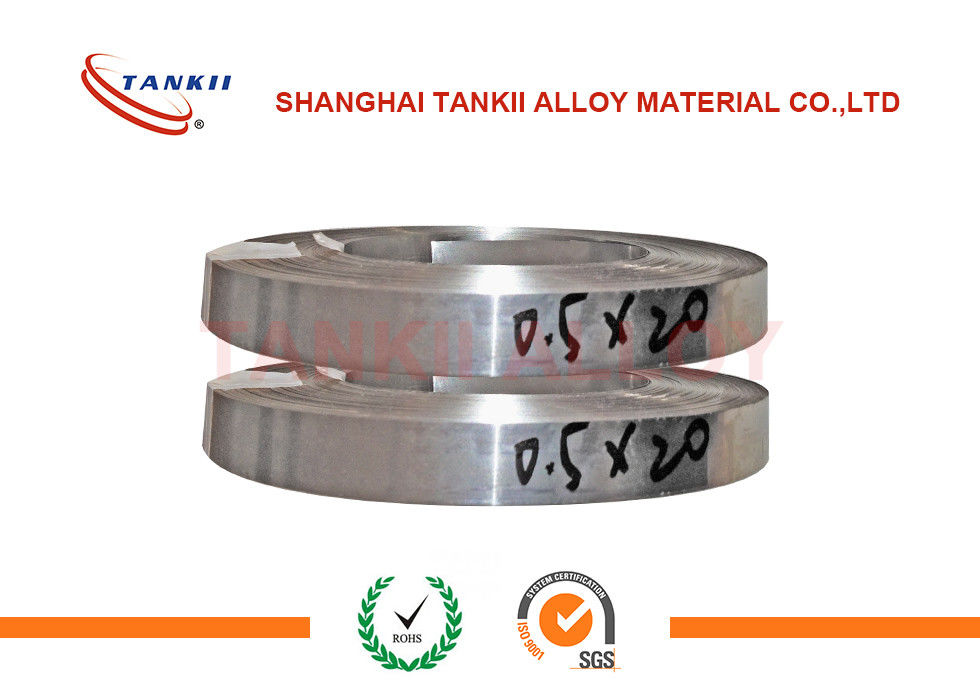

Strip: 0.005*5.0-5.0*250mm
Bars: OD 4-100mm
3. Chemical composition and main properties of constantan
|
Name |
Code |
Main Composition (%) |
Density (g/mm2) |
|||
|
Cu |
Mn |
Ni |
Cr |
|||
|
Constantan |
6J40 |
Bal. |
1-2 |
39-41 |
- |
8.9 |
|
Type |
(20º C ) Resistivity (μ Ω. M) |
(20º C ) Temp. Coff. of Resistance (α×10-6/°C) |
(0-100º C ) Thermal EMF vs. Copper (μV/º C )
|
Max. Working Temp.(º C )
|
Elongation (%) |
Tensile Strength (Mpa) |
|
|
Constantan |
6J40 |
0.48 ±0.03 |
+40 |
45 |
≤500 |
≥15 |
≥390 |
|
Charact eristic |
Resistivity ( 200C μΩ.m) |
Max.working Temperature ( 0C) |
Tensile Strength (Mpa) |
Melting point (0C) |
Density ( g/cm3) |
TCR x10-6/ 0C (20~600 0C) |
EMF vs Cu (μV/ 0C) (0~100 0C) |
|
Alloy Nomenc lature |
|||||||
|
NC003 (CuNi1) |
0.03 |
200 |
210 |
1085 |
8.9 |
<100 |
-8 |
|
NC005 (CuNi2) |
0.05 |
200 |
220 |
1090 |
8.9 |
<120 |
-12 |
|
NC010 (CuNi6) |
0.1 |
220 |
250 |
1095 |
8.9 |
<60 |
-18 |
|
NC012 (CuNi8) |
0.12 |
250 |
270 |
1097 |
8.9 |
<57 |
-22 |
|
NC015 (CuNi10) |
0.15 |
250 |
290 |
1100 |
8.9 |
<50 |
-25 |
|
NC020 (CuNi14) |
0.2 |
300 |
310 |
1115 |
8.9 |
<30 |
-28 |
|
NC025 (CuNi19) |
0.25 |
300 |
340 |
1135 |
8.9 |
<25 |
-32 |
|
NC030 (CuNi23) |
0.3 |
300 |
350 |
1150 |
8.9 |
<16 |
-34 |
|
NC035 (CuNi30) |
0.35 |
350 |
400 |
1170 |
8.9 |
<10 |
-37 |
|
NC040 (CuNi34) |
0.4 |
350 |
400 |
1180 |
8.9 |
0 |
-39 |
|
NC050 (CuNi44) |
0.5 |
400 |
420 |
1200 |
8.9 |
<-6 |
-43 |
4. cuni resistance alloy application
CuNi alloy wires and strip typically used in heating cables, fuses, resistors and various types of controllers, electric car controller
, the instruments and meters, the integrated circuit, the sample electric current, the resistor. And low pressure resistance and so on.
Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.05mm-7mm, Width 1mm-280mm
