Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr80/20.
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: 20, 000kg/month
Payment Terms: L/C, T/T, Western Union

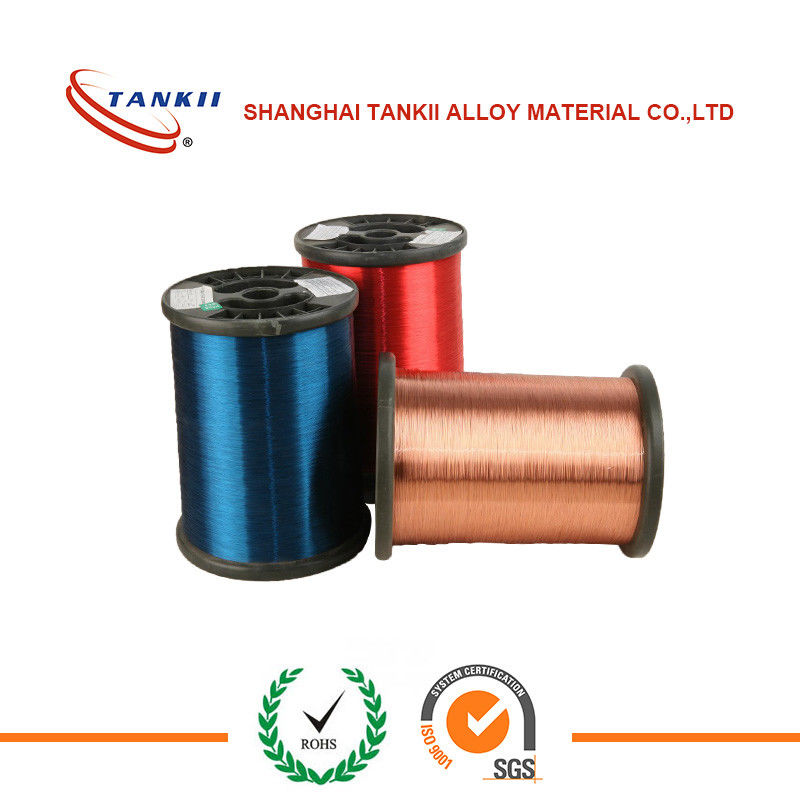

Enamelled Nicr80 20 Nicr Alloy Resistance Wire High Resistance Wire
Nichrome, a non magnetic alloy of nickel and chromium, is commonly used to make resistance wire.
Because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.
Nichrome wire is commonly used in ceramics as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used because of its ability to withstand the high temperatures that occur when a clay work is fired in a kiln.
Features of manganic resistance heating wire:
Electric wire is with the high quality alchrome and
nicklechrome alloy which produced by our own company, adopts computer control furnace silk power, winding shaping by the highspeed automatic winding machine. The feature of the product is have withstanding high temperatures, fast temperature rise, long service life, stable resistivity, small power deviation, uniform screw pitch after drawing, and clean surface, widely used in small electric furnace, muffle furnace, heating air-conditioning equipment, all kinds of oven, electrical heated tube, and home appliances ect. Can design and produce all kinds non-standard electric stove strip by customer’s request.
Main Property of nichrome heating wire
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
| Density(g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic |
Weak magnetic |
|
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
| Size details |
| Product name | Size range |
| Cold drawing wire | Diameter 0.03-7.5mm |
| Hot-rolled wire rod | Diameter 8.0-12mm |
| Ribbon | Thickness 0.05-0.35mm |
| Width 0.5.0-3.5mm | |
| Cold rolled strip | Thickness 0.5-2.5mm |
| Width 5.0-40mm | |
| hot rolled strip | Thickness 4-6mm |
| Width 15-40mm |
