|Place of Origin:||Sahnghai China|
|Model Number:||Enamelled Nichrome wire|
|Minimum Order Quantity:||20kilograms|
|Price:||USD + 20-60 + kilograms|
|Packaging Details:||packing, wooden case. Inside package, carton|
|Delivery Time:||7-10 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10 + Tons + per month|
|Color:||Red Green Yellow White Etc.||Size:||0.01 - 10mm|
|Standard:||ASTM / GB / JIS / DIN||Sample:||Free|

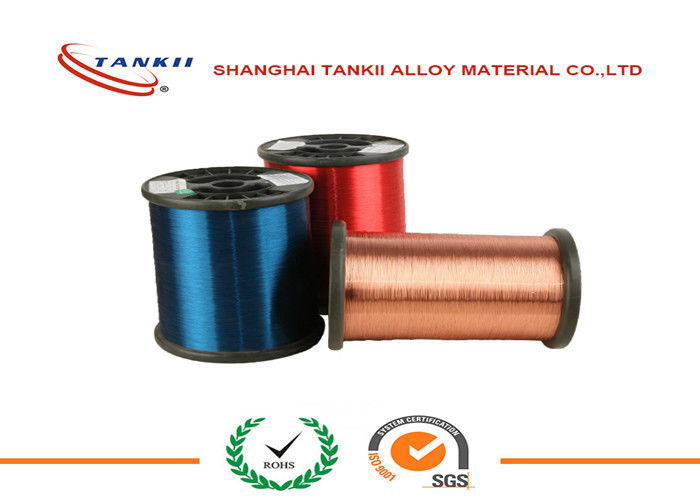

0.01 - 10mm Enamelled Wire Copper Nichrome Heater Wire CuNi44 Constantan Red Black White Green
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Moq:5kg each size
Type of insulation
|Insulation-enamelled Name||Thermal LevelºC
(working time 2000h)
|Code Name||GB Code||ANSI. TYPE|
|Polyurethane enamelled wire||130||UEW||QA||MW75C|
|Polyester enamelled wire||155||PEW||QZ||MW5C|
|Polyester-imide enamelled wire||180||EIW||QZY||MW30C|
|Polyester-imide and polyamide-imide double coated enameled wire||200||EIWH
|Polyamide-imide enamelled wire||220||AIW||QXY||MW81C|
Chemical Content, %
|Max Continuous Service Temp||400ºC|
|Resisivity at 20ºC||0.49±5%ohm mm2/m|
|Tensile Strength,N/mm2 Annealed,Soft||340~535 Mpa|
|Tensile Strength,N/mm3 Cold Rolled||680~1070 Mpa|
|EMF vs Cu, μV/ºC (0~100ºC)||-43|
Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional
elements to achieve precise values for the temperature coefficient of resistivity. Careful
control of melting and conversion practices results in a very low level of pinholes at
ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.
Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
