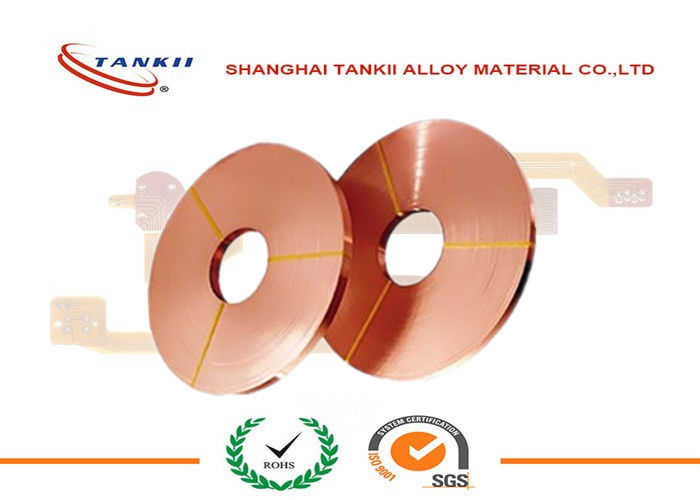

C12200 C1220C106 Pure Copper Sheet Roll Cu - DHP R - SF - Cu

C12200 C1220C106 Pure Copper Sheet Roll Cu - DHP R - SF - Cu

    • C12200 C1220C106 Pure Copper Sheet Roll Cu -  DHP  R - SF - Cu
    • C12200 C1220C106 Pure Copper Sheet Roll Cu -  DHP  R - SF - Cu
    • C12200 C1220C106 Pure Copper Sheet Roll Cu -  DHP  R - SF - Cu
  • C12200 C1220C106 Pure Copper Sheet Roll Cu -  DHP  R - SF - Cu

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: TANKII
    Certification: ISO:9001 & RoHS
    Model Number: Cu - DHP

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 kilograms
    Price: USD+8 - 15+kilograms
    Packaging Details: Standard export package,suit for all kinds of transportation
    Delivery Time: 5-10days for the nuture order
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 100+Tons+per month
    Contact Now
    Detailed Product Description
    Color: Red Standard: ASTM / GB / JIS / DIN
    Surface: Bright Size: 0.001mm - 5 Mm * 0.5mm - 1000mm
    Sample: Free

    C12200 C1220C106 Pure Copper Sheet Roll Cu - DHP R - SF - Cu

    copper foil C12200 / c1220

    1 .  Import(GermanyMKM: GreeceHALCOR): E-Cu57 Temper M
    Domestic: C12000 Temper Soft , 1/2hard,hard
    Material: Copper strip/Foil

    Item Copper Foil/strip
    Material /Grade C12200
    Width 0.5mm-1000mm
    thickness 0.001mm-5mm
    Length as required
    Package Standard export package,suit for all kinds of transport,or as required.
    Surface mill,polished,bright,hair line,brush,sand blast,etc
    Price term CIF FOB CFR
    Payment Term T/T,L/C
    Moq 1MQ

    2 .  Appearance standard:
    ( 1 ) .  Soft surface, no grease, smooth and without feeling scratch.
    ( 2 ) .  Tolerances of side burr, thickness and width should less than that in the standard.

    3 .  Packing:
    (1). Generally polyethylene film roll the coil and put them on the wooden pallets. Also we can meet special requirements of customers.
    (2). Strip itself and identified material all conform to RoHS environmental requirements.

    4 .  Applications:
    Good electric conductivity and thermal conductivity, high intensity and rigidity. Used as material in electronic connectors and large scale integrated circuit lead frame.

    5 .  Parter:
    Min Quantity:according to your size

    6 . Physical Properties

    Melting Point - Liquidus 1083℃
    Melting Point - Solidus 1065℃
    Density 8.91 gm/cm3@ 20 ℃
    Specific Gravity 8.91
    Electrical Resistivity 1.71 microhm-cm @ 20 ℃
    Electrical Conductivity** 0.591 MegaSiemens/cm @ 20 ℃
    Thermal Conductivity 391.1 W/m ·oK at 20 C
    Coefficient of Thermal Expansion 16.9 ·10-6per℃(20-100 ℃)
    Coefficient of Thermal Expansion 17.3 ·10-6per℃(20-200 ℃)
    Coefficient of Thermal Expansion 17.6·10-6per℃(20-300 ℃)
    Specific Heat Capacity 393.5 J/kg ·oK at 293 K
    Modulus of Elasticity in Tension 117000 Mpa
    Modulus of Rigidity 44130 Mpa



    7 . Grade and Manufacturing information for stained class copper foil



    Chinese Grade Abroad Similar Brand
    International USA JAPAN UK GERMANY
    (ISO) (ASTM) (JIS) (BS) (DIN)
    T2 Cu-ETP C11000 C1100 C101 R-Cu57
    TP2 Cu-DHP C12200 C1220 C106 SI-CU



    Grade Chinese State Specification Tensile Strength Elongation Vickers Hardness
    T2 M Thickness: 0.018-0.2mm
    Width: (Max)400mm
    Coil Weight:6.5kg/mm
    >205 >30 -
    Y4 215-275 >25 55-100
    TP2 Y2 245-345 >8 75-120

    8 . Features for thin copper foil


    1 ) Good viscosity,Cold resistance
    2 )  Mechanical resistance,Moisture resistant
    3 )  High thermal conductivity,Oil & acid resistant
    4 )  Ageing-resistant
    5 )  Flame retardant
    6 )  Easy to tear apart



    9 . Applications for thin copper foil


    1 )  Electric and electric springs,switches
    2 )  Lead frames
    3 )  Connectors and oscillation reeds
    3 )  PCB field
    4 )  Communication cable
    5 )  Cable armoring
    6 )  Mobile phone main board
    7 )  Ion battery production lamination with PI film
    8 )  PCB collector (electrode backing) materials

    10 . Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Copper  Alloy, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

    We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

    We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

    Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

    Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

    Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
