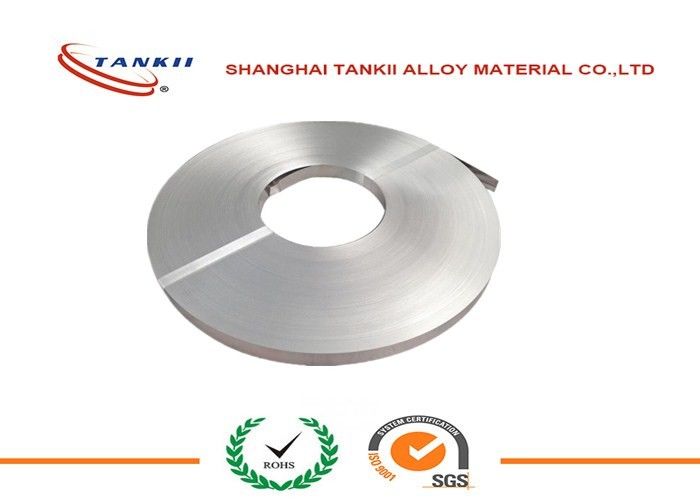

Ni Foil Pure Nickel Strip Thikness 2.5mm For Electronic Industry

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO,ROHS

Model Number: N200 N201

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Packaging Details: in roll, wooden case outside

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100,000/Month

Get Best Price
Contact Now
Specifications
Highlight:

nickel foil

,

nickel copper alloy

Type:
Nickel Foil
Grade:
Pure Nickel 99.6%
Powder Or Not::
Not Powder
Application:
Industries Of Electric Tool And Special Lights
Width:
350mm Max
Thickness:
0.005mm To 2.50 Mm
Type:
Nickel Foil
Grade:
Pure Nickel 99.6%
Powder Or Not::
Not Powder
Application:
Industries Of Electric Tool And Special Lights
Width:
350mm Max
Thickness:
0.005mm To 2.50 Mm
Description
Ni Foil Pure Nickel Strip Thikness 2.5mm For Electronic Industry

Ni Foil Purity > 99.6% Thikness from 0.005~2.5mm for Electronic Industry


Product Description


    Nickel 201 (UNS N02201/W.Nr. 2.4061 and 2.4068) is the low-carbon version of Nickel 200. Typical applications are caustic evaporators, combustion boats, plater bars, and electronic components. Nickel 201, because of its low base hardness and lower work-hardening rate, is particularly suited for spinning and cold forming. It is preferred to Nickel 200 for applications involving exposure to temperatures above 600°F (315°C).

Nickel Strip Capabilities

Grade

Pure Nickel Strip 99.6% / 99.9%

Thickness

0.02 to 2.50 mm

Tolerances

+/- 5% (special tolerances is available)

Width

Up to 350mm wide

Coil size

Up to 80 kg without welds

Temper Ranges

Annealed to Full Hard



Nickel Strip Product Precision



Thickness

Thickness allowance

Burr height

Width scope and tolerance

2≤w<10

10≤w<50

50≤w<100

100≤w<150

150≤w<200

200≤w

0.02≤t<0.05

±0.003

0.005

±
0.05

±0.10

±0.15

±0.20

±0.30

±0.50

0.05≤t<0.1

±0.005

0.01

0.1≤t<0.2

±0.008

0.015

0.2≤t<0.3

±0.012

0.02

0.3≤t<0.4

±0.015

0.03

±
0.10

±0.15

±0.25

±0.50

±0.80

±1.00

0.4≤t<0.6

±0.025

0.05

0.6≤t<0.8

±0.030

0.06

±
0.30

±0.40

±0.50

±0.50

±0.80

±1.00

0.8≤t<1.0

±0.040

1.0≤t<1.2

±0.050

0.08

±
0.50

±0.50

±0.80

±1.00

±1.00

±1.50

1.2≤t<1.4

±0.060

1.4≤t<1.7

±0.070

0.10

1.7≤t<2.0

±0.080



Ni Foil Pure Nickel Strip Thikness 2.5mm For Electronic Industry 0

Nickel Strip Chemical requirements

Grade

Ni+Co

Cu

Si

Mn

C

Mg

S

P

Fe

N4

99.9

0.015

0.03

0.002

0.01

0.01

0.001

0.001

0.04

N6

99.6

0.10

0.10

0.05

0.10

0.10

0.005

0.002

0.10

Ni201

99.0

0.25

0.35

0.35

0.02

  /

0.01

/

0.40

Ni200

99.0

0.20

0.30

0.30

0.15

/

0.01

/

0.40



Ni Foil Pure Nickel Strip Thikness 2.5mm For Electronic Industry 1

Properties of Pure Nickel Strip:

  1.  Higher electrical conductance
  2.  Raised Curie Temperature
  3.  Superior Magnetostrictive Properties
  4.  Excellent thermal conductivity



Applications of Nickel 200 Strip:

  1.  Manufacturing artificial synthetic fibers.
  2.  Chemical Treatment and Preservation.
  3.  Aerospace Industry.
  4.  Cathode tap
  5.  Cell connector

Ni Foil Pure Nickel Strip Thikness 2.5mm For Electronic Industry 2
